Vertical slicer series MIRRA 275 C VAS B.S. Cutting thickness mm 13 Hopper mm 260x275

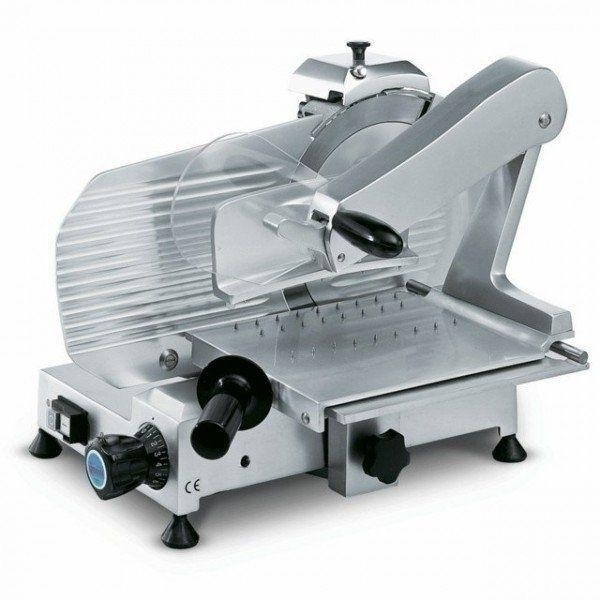

Vertical slicer Sirman Model MIRRA 275 C VAS B.S.

FAnodized cast aluminium alloy, great distance between blade and motor for easy cleaning, ventilated motor and forged, hardened large thickness blades.

Technical data

• Lapped sliding pins
• Stainless steel screws and slice deflector
• Strong thickness gauge support
• Cast-in sharpener assembly
• Compact dimensions but great cutting capacity
• ø Blade mm 275 - inch. 11
• Motor watt 147 - Hp 0,20
• Cutting thickness mm 13
• Run of carriage mm 225
• Plate mm 260x275

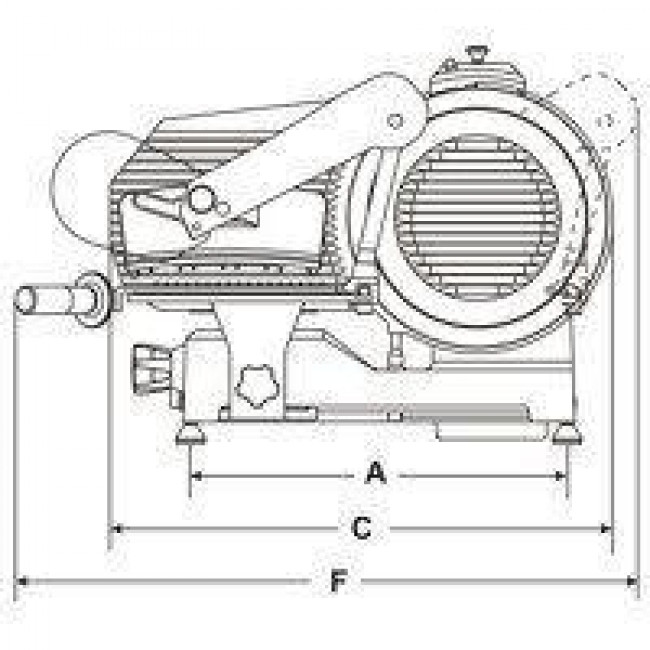

• A mm 400
• B mm 260
• C mm 530
• D mm 480
• E mm 420
• F mm 700
• G mm 770

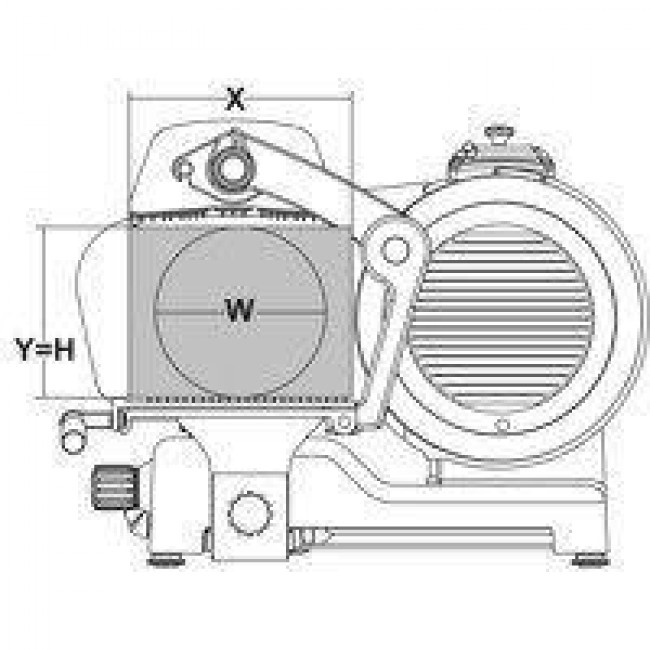

• X mm 270
• Y mm 200
• H mm 200
• W mm 200
• Net weight kg 22,5
• Packaging dimensions mm 600x500x500
• Gross weight kg 25
