Vertical slicer Model Tiziano 370 Evo BS1 Cutting thickness mm 25

Vertical slicer Sirman Model Tiziano 370 Evo BS1

Adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices and safety ring on table shaft to prevent liquids from seeping inside the machine.

Technical specifications

• Rounded design, no sharp edges and visibile screws
• Chrome plated ground and lapped slide rod
• Self lubricating slide rod bushings
• Vulcanized rubber stops on carriage
• Removable support cover for thickness gauge plate
• Stainless steel slice deflector
• Blade pulley without centre hole to facilitate cleaning
• Easily removable blade cover
• Stainless steel screws and fittings
• 48 mm distance between blade and motor
• Bottom cover
• Changeover electronic circuit 110-220V single or 220-280V three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Plastic knob
• Rubber feet
• Stainless steel pushbuttons with IP67 protection rating
• Easy to remove stainless steel meat grip arm
• ø blade mm 370 - inch. 15
• Motor watt 380 - Hp 0,52
• Cutting thickness mm 29
• Run of carriage mm 355
• Plate mm 305x295

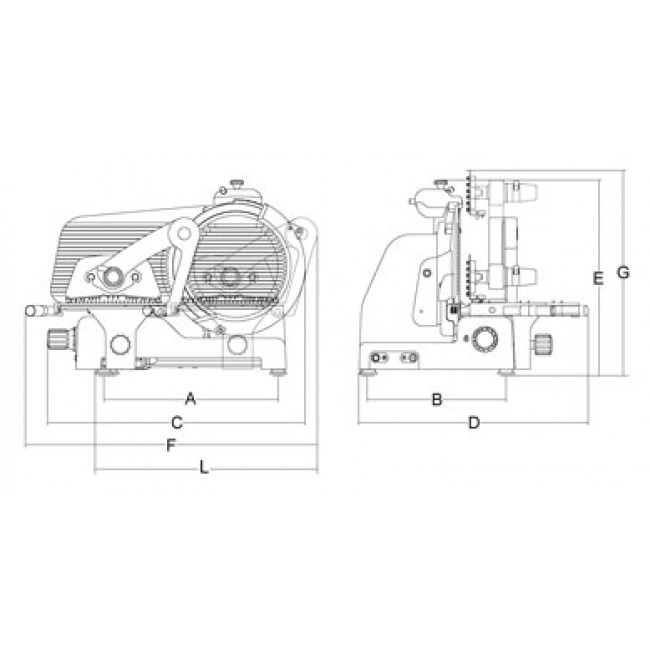

• A mm 513
• B mm 338
• C mm 730
• D mm 601
• E mm 551
• F mm 766
• G mm 664
• L mm 683

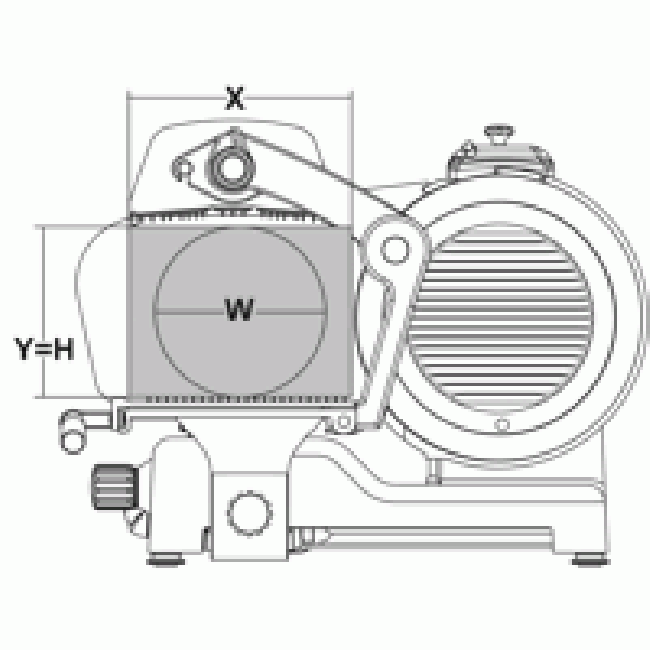

• X mm 305
• Y mm 255
• H mm 255
• W mm 255
• net weight kg 41,5
• Packaging dimensions mm 870x840x830
• Gross weight kg 57,5
