Vertical slicer Model MANTEGNA 350 BS1 Cutting thickness mm 29

Vertical slicer

Rounded design and no sharp edges or visible screws and chrome plated ground and lapped slide rod. Lapped cast iron slide rod bushing and vulcanised rubber stops on carriage.

Technical data

• Removable support cover for thickness gauge plate
• Stainless steel slice deflector with snap-on bayonet fitting
• Stainless steel screws and fittings
• Bottom cover for accessing electrical components
• Changeover electronic circuit 110-220-380 V single and three phase

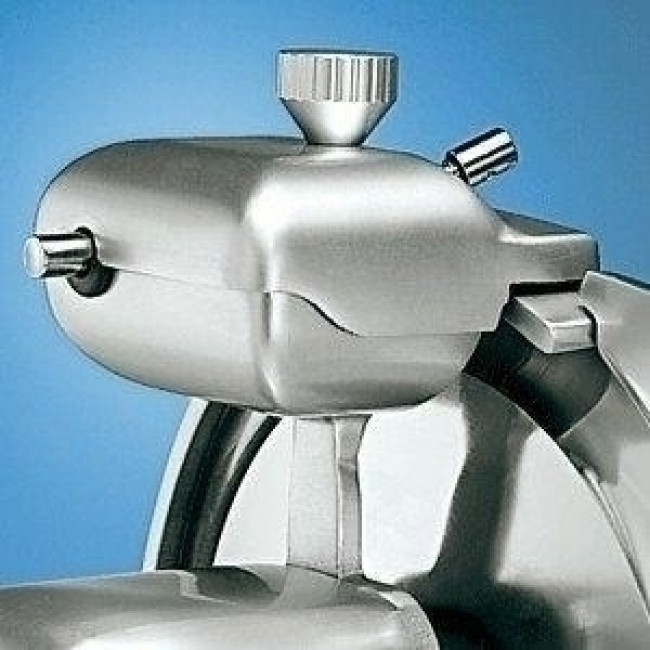

• Built-in sharpening tool with bottom protection
• Enclosed and sealed belt pulley
• 48 mm distance between blade and body
• Standard blade removal tool
• Plastic knobs
• Rubber feet
• Removable stainless steel bracket for cleaning
• ø blade mm 350 - inch. 14
• Motor watt 370 - Hp 0,50
• Cutting thickness mm 29
• Run of carriage mm 310
• Plate mm 300x270

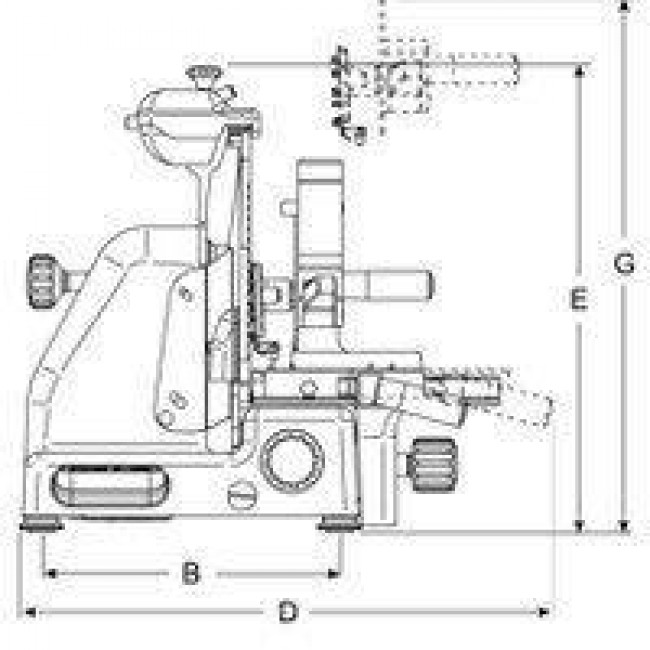

• A mm 468
• B mm 338
• C mm 660
• D mm 600
• E mm 530
• F mm 750
• G mm 715

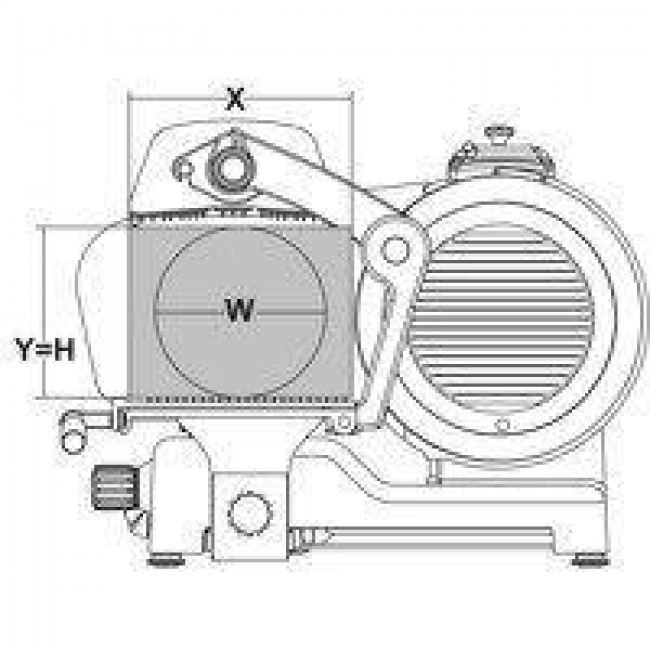

• X mm 270
• Y mm 250
• H mm 250
• W mm 250
• Net weight kg 43
