Vertical slicer Model MANTEGNA 330 BS1 TOP Cutting thickness mm 29

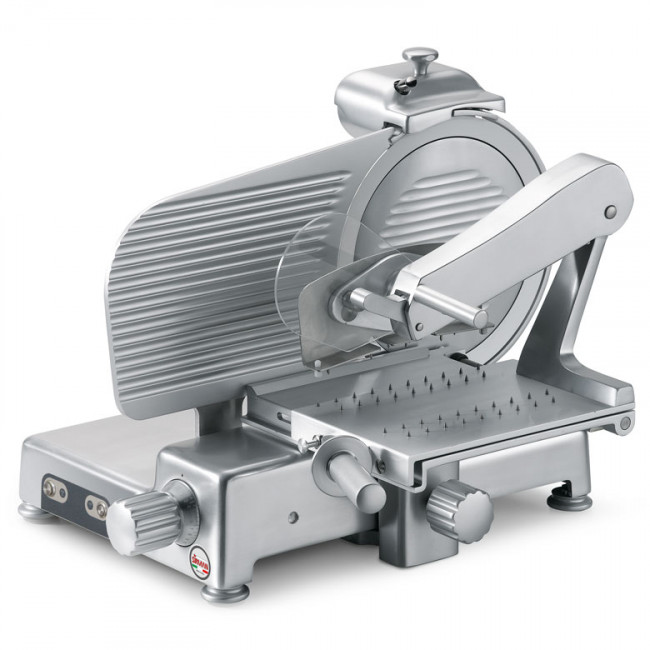

Vertical slicer

Rounded design and no sharp edges or visible screws and chrome plated ground and lapped slide rod and lapped cast iron slide rod bushing. Vulcanised rubber stops on carriage and removable support cover for thickness gauge plate

Technical specifications

• Stainless steel slice deflector with snap-on bayonet fitting
• Stainless steel screws and fittings
• Bottom cover for  accessing electrical components
• Changeover electronic circuit 110-220-380 V single and three phase
• Built-in sharpening tool with bottom protection
• Enclosed and sealed belt pulley
• 48 mm distance between blade and body
• Standard blade removal tool
• Aluminium knobs
• Aluminium telescopic feet with rubber base
• Removable stainless steel bracket for cleaning
• ø blade mm 330 - inch. 13
• Motor watt 275 - Hp 0,37
• Cutting thickness mm 29
• Run of carriage mm 310
• Plate mm 300x270

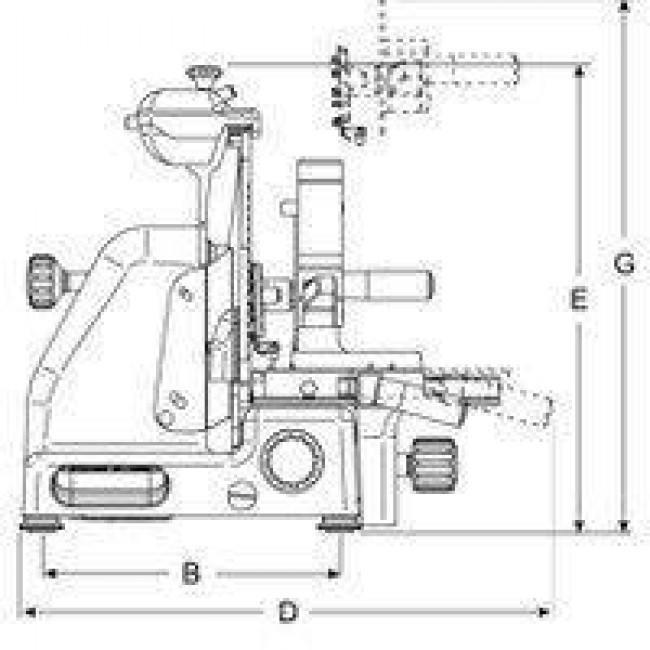

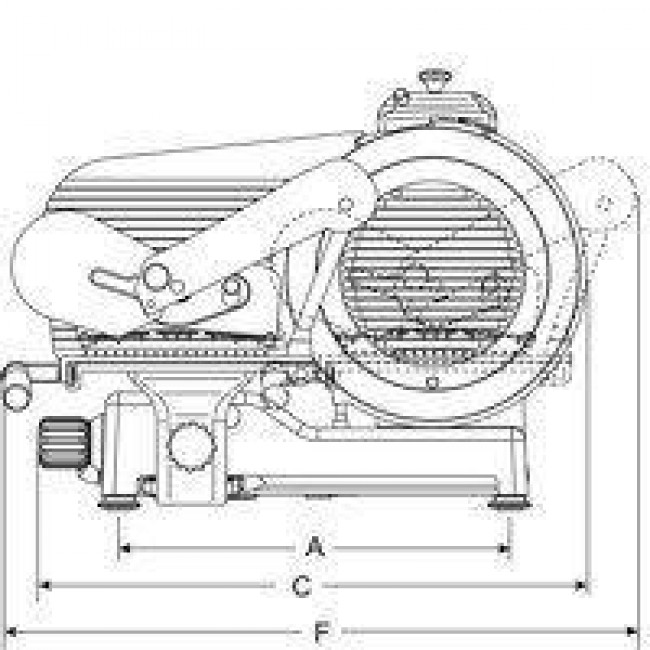

• A mm 468
• B mm 338
• C mm 645
• D mm 600
• E mm 515
• F mm 750
• G mm 705

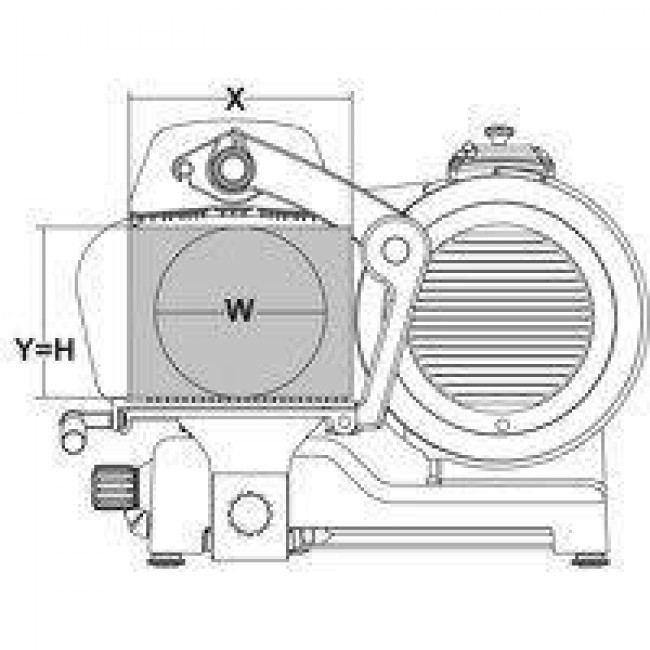

• X mm 270
• Y mm 240
• H mm 240
• W mm 240
• Net weight kg 37
• Packaging dimensions mm 870x840x830
• Gross weight kg 51
