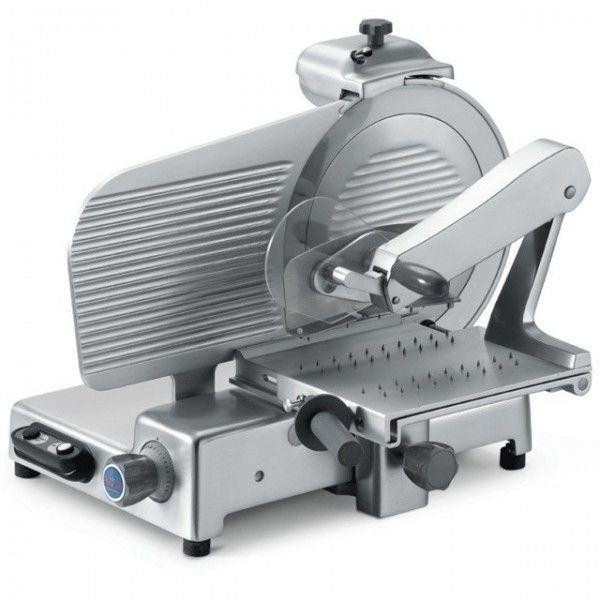

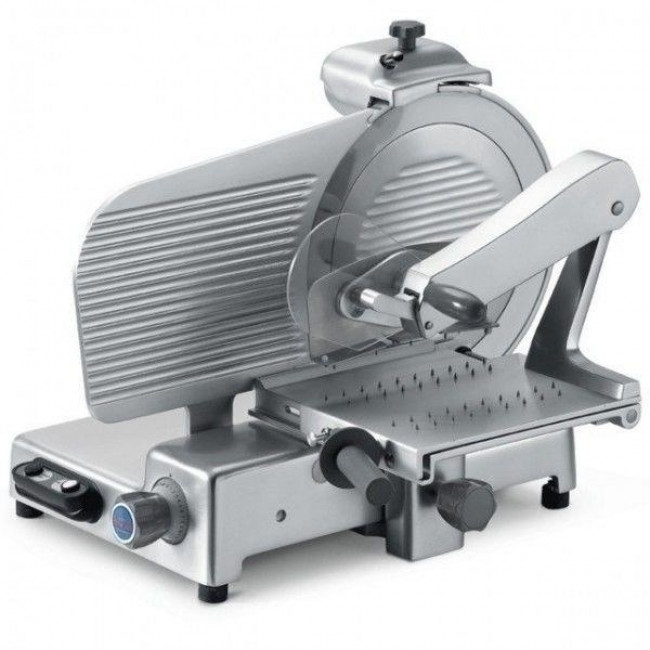

Vertical slicer Model MANTEGNA 330 BS1 Cutting thickness mm 29

Vertical slicer

Rounded design and no sharp edges or visible screws with chrome plated ground and lapped slide rod. Lapped cast iron slide rod bushing, vulcanised rubber stops on carriage and removable support cover for thickness gauge plate.

Technical data

• Stainless steel slice deflector with snap-on bayonet fitting
• Stainless steel screws and fittings
• Bottom cover for  accessing electrical components
• Changeover electronic circuit 110-220-380 V single and three phase
• Built-in sharpening tool with bottom protection
• Enclosed and sealed belt pulley
• 48 mm distance between blade and body
• Standard blade removal tool
• Plastic knobs
• Rubber feet
• Removable stainless steel bracket for cleaning
• ø blade mm 330 . inch. 13
• Motor watt 275 - Hp 0,37
• Cutting thickness mm 29
• Run of carriage mm 310
• Plate mm 300x270

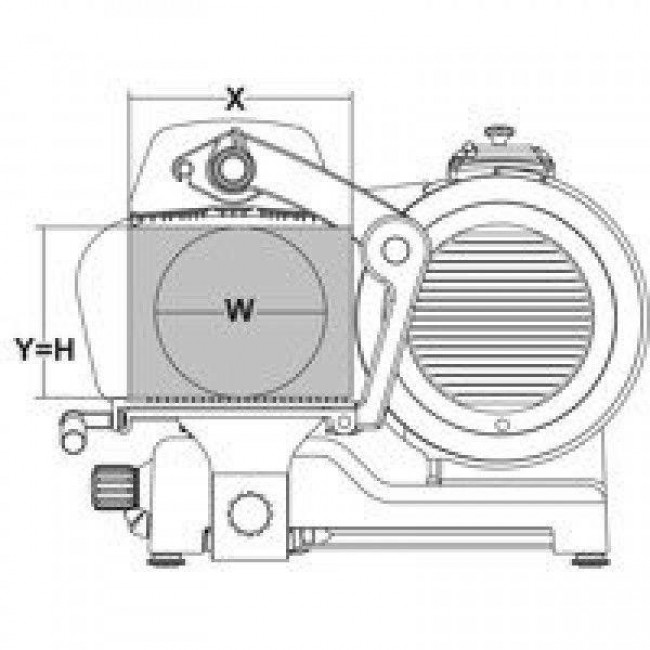

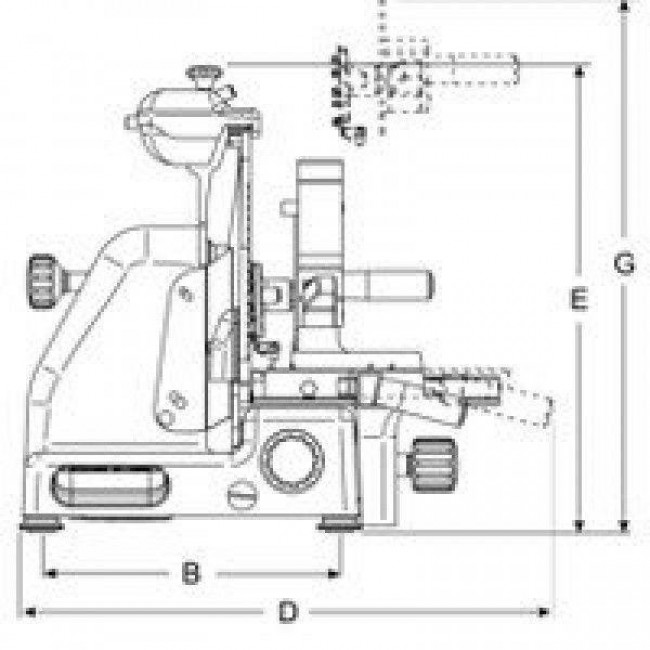

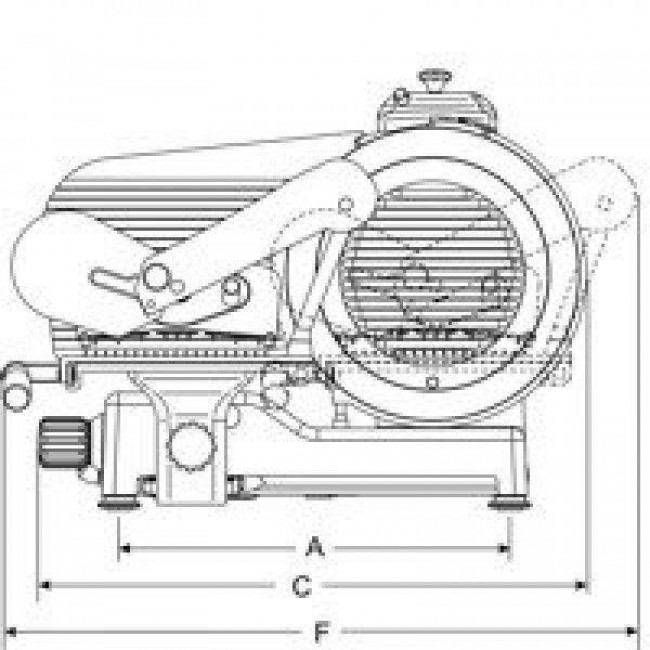

• A mm 468
• B mm 338
• C mm 645
• D mm 600
• E mm 515
• F mm 750
• G mm 705
• X mm 270
• Y mm 230
• H mm 230
• W mm 230
• Net weight kg 41
