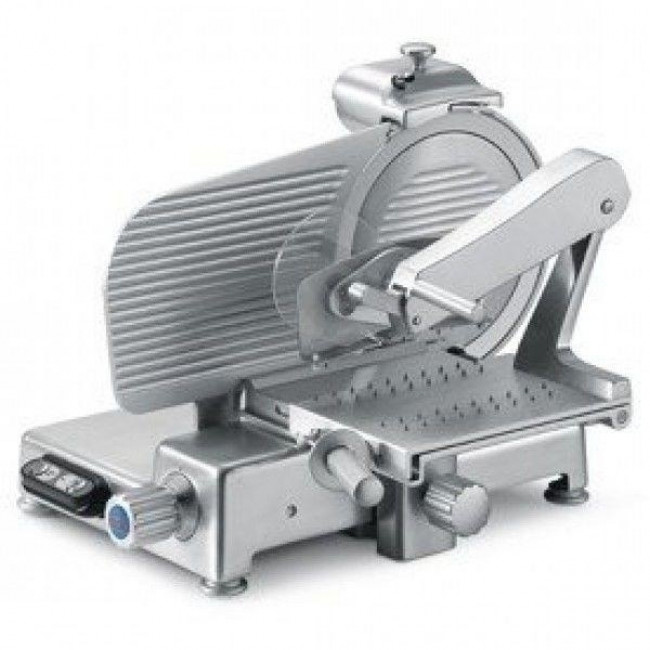

Vertical slicer Model MANTEGNA 300 BS1 TOP Cutting thickness mm 29 Hopper mm 300x270

Vertical slicer

Rounded design and no sharp edges or visible screws easy to clean, changeover electronic circuit 110-220-380 V single and three phase, built-in sharpening tool with bottom protection and enclosed and sealed belt pulley

Technical specifications

• Chrome plated ground and lapped slide rod
• Lapped cast iron slide rod bushing
• Vulcanised rubber stops on carriage
• Removable support cover for thickness gauge plate
• Stainless steel slice deflector with snap-on bayonet fitting
• Stainless steel screws and fittings
• Bottom cover for accessing electrical components
• 48 mm distance between blade and body
• Standard blade removal tool
• Aluminium knobs
• Aluminium telescopic feet with rubber base
• Removable stainless steel bracket for cleaning
• ø blade mm 300 - inch. 12
• Motor watt 275 - Hp 0,37
• Cutting thickness mm 29
• Run of carriage mm 310
• Plate mm 300x270

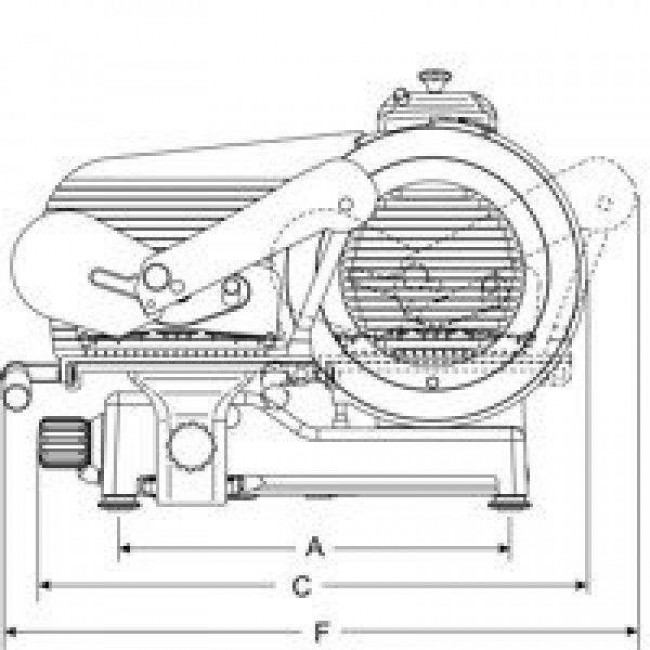

• A mm 468

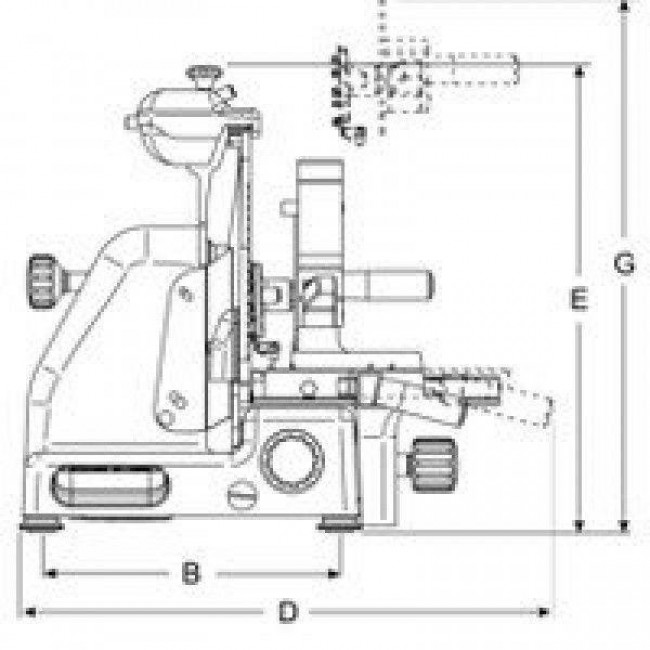

• B mm 338
• C mm 635
• D mm 600
• E mm 500
• F mm 750
• G mm 695

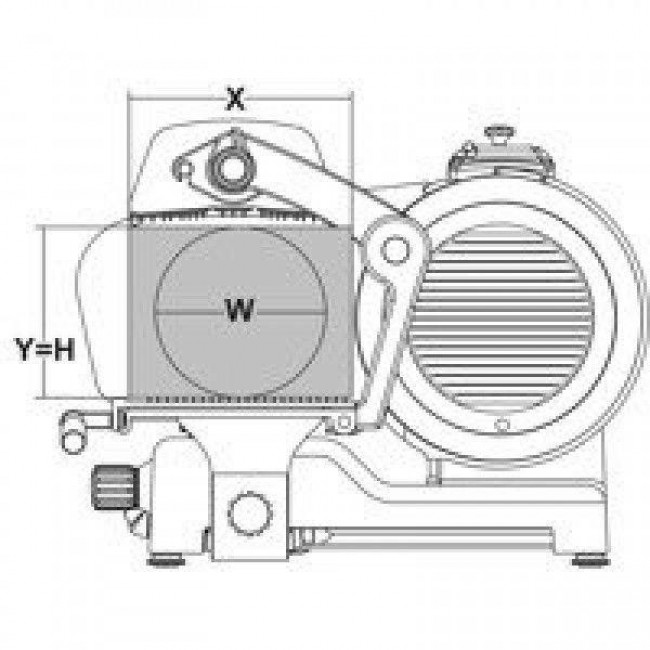

• X mm 270
• Y mm 230
• H mm 230
• W mm 230
• Net weight kg 36,5
• Packaging dimensions mm 870x840x750
• Gross weight kg 51,5
