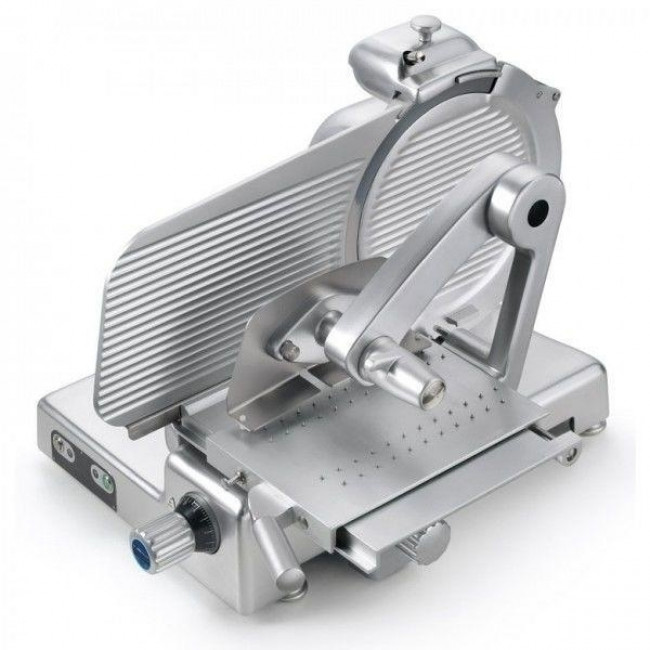

Vertical slicer Model Leonardo 385 Evo BS2 Top

Vertical slicer Sirman Model Leonardo 385 Evo BS2 Top

Rounded design and no sharp edges or visible screws, blade pulley without centre hole to facilitate cleaning and adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices.

Technical specifications

• Size can fit 70 cm deep table


• Low profile reduced friction blade


• Chrome plated ground and lapped slide rod


• Smooth sliding thanks to lapped iron bushings


• Vulcanised rubber stops on carriage


• Stainless steel slice deflector

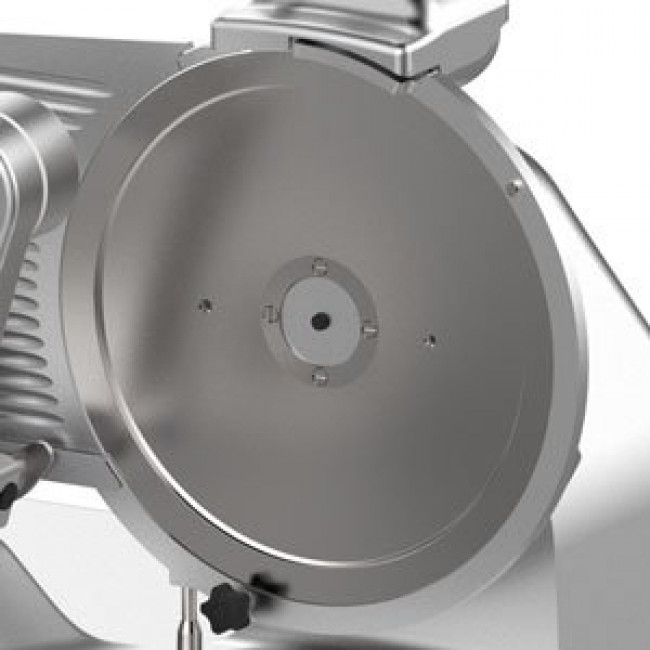

• Hermetic pulley


• Easily removable blade cover


• Stainless steel screws and fittings


• Built-in sharpening tool with bottom protection


• Easy to remove grease guard


• Easy working height to help operator


• Standard blade removal tool


• 70 mm distance between blade and motor


• Aluminium knobs


• G&B blade.


• Aluminium telescopic feet with rubber base


• Stainless steel pushbuttons with IP67 protection rating


• Maintenance tool kit and demo CD


• Easy to raise arm with ergonomic handgrip


• Integrated system that automatically removes the bracket from the blade when opened


• Amply dimensioned stainless arm easy to remove


• Tray and slides perfectly parallel, and with raised plate  for improved food grip


• ø Blade mm 385 - inch. 16


• Motor watt 380 - Hp 0,52


• Cutting thickness mm 25


• Run of carriage mm 370


• Plate mm 350x320

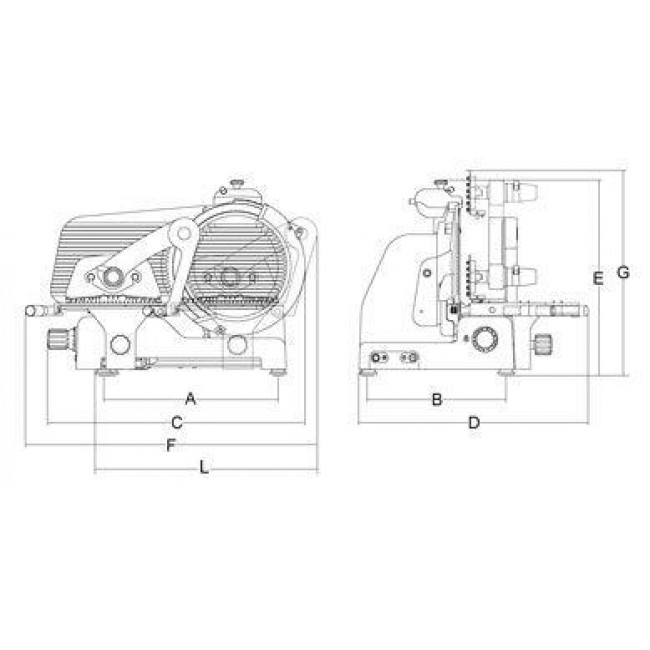

• A mm 515


• B mm 410


• C mm 767


• D mm 676


• E mm 597


• F mm 887


• G mm 626


• L mm 682

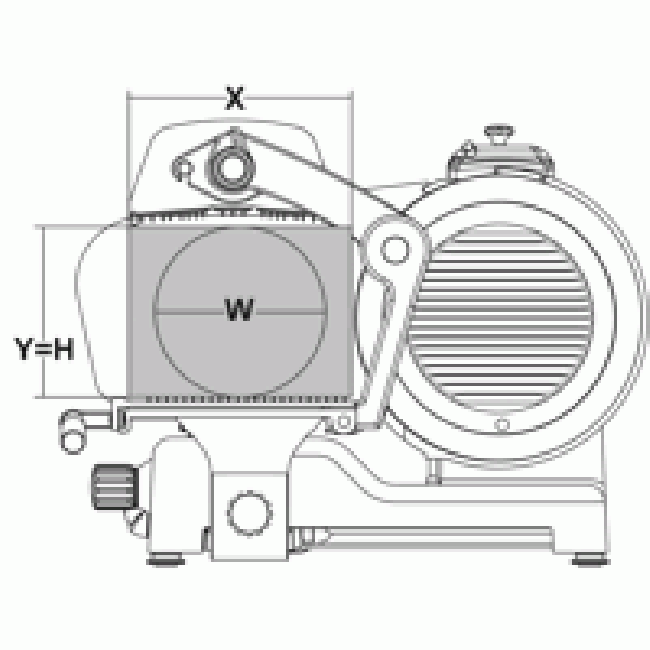

• X mm 330


• Y mm 280


• H mm 280


• W mm 280


• Net weight kg 61


• Packaging dimensions mm 870x840x830


• Gross weight kg 77
