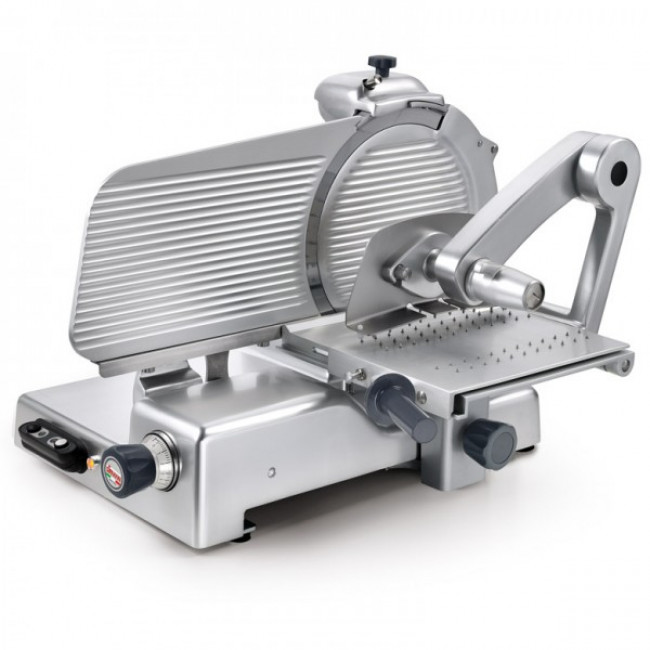

Vertical slicer Model Leonardo 350 Evo BS2

Vertical slicer Sirman Model Leonardo 350 Evo BS2

Blade pulley without centre hole to facilitate cleaning and adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices

Technical specifications

• Rounded design, no sharp edges and visibile screws
• Size can fit 70 cm deep table
• Low profile reduced friction blade
• Chrome plated ground and lapped slide rod
• Smooth sliding thanks to lapped iron bushings
• Vulcanised rubber stops on carriage
• Stainless steel slice deflector
• Hermetic pulley
• Easily removable blade cover
• Stainless steel screws and fittings
• Affilatoio con vaschetta inferiore di protezione.
• Built-in sharpening tool with bottom protection
• Easy working height to help operator.
• Standard blade removal tool
• 70 mm distance between blade and motor
• Plastic knob
• Rubber feet
• Buttons in insulated stainless steel (IP 67) in housing
• Easy to remove stainless steel meat grip arm
• ø Blade mm 350 - inch 14
• Motor watt 380 - Hp 0,52
• Cutting thickness mm 25
• Run of carriage mm 370
• Plate mm 350x320
• A mm 515
• B mm 410
• C mm 733
• D mm 676
• E mm 570
• F mm 876
• G mm 633
• L mm 710
• X mm 330
• Y mm 250
• H mm 250
• W mm 250
• Net weight kg 56
• Packaging dimensions mm 870x840x830
• Gross weight kg 72
