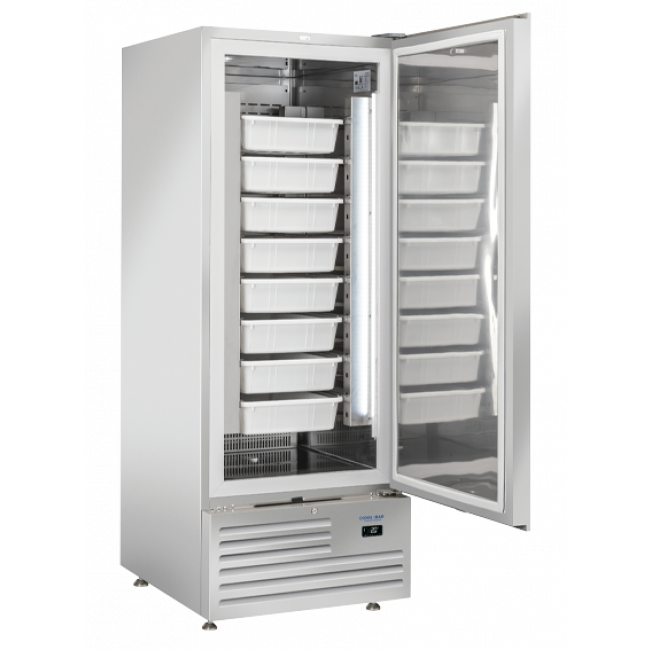

Static refrigerated cabinet for fish Model QRX688FH

Static refrigerated cabinet for fish

With a clean design, this product has been developed for fresh fish refrigeration. It comes finished in stainless steel, with its engine located at the bottom side to provide a more comfortable goods storage-system and a digital controller. The QRX 688FH model is a perfect combination of technological improvements and manufacturing experience, with foamed door handle, self-closing door, open-door and high-temperature alarm to avoid energy waste, 8 pans “fish water drain tray” antioxidation included, static cooling system, eco-friendly gas R290 and 80mm insulation foam on each side to ensure optimum energy-saving. To complete the high-end features list, it comes with removable filter, internal vertical LED lights and lock fitted as standard; as well as reversible door and height-adjustable feet on demand.

Technical specifications

• GN2/1 Refrigerated upright cabinet (FISH)
• Stainless Steel exterior and interior
• Static cooling with fan assisted cooling
• Condenser with anti-corrosion treatment
• Bottom side engine room (for comfortable storage in the cabinet)
• Automatic compressor cycle defrost
• Digital thermostat with “opening door” and “High temperature” alarm
• Foaming Agent Cyclopentane (80mm)
• Removable Gasket
• LED light and lock fitted as standard
• Door: Self closing and reversible door fitted as standard
• N.8 Pans “fish water drain trayn” antioxidation included
• Plastic thermal-braker anti-condensation as chamber body frame
• N.4 Adjustable feet – S/S feet or castor with brake (Option)
• Energy efficiency class: D
• Energy consumption 2.5 kw/ 24h

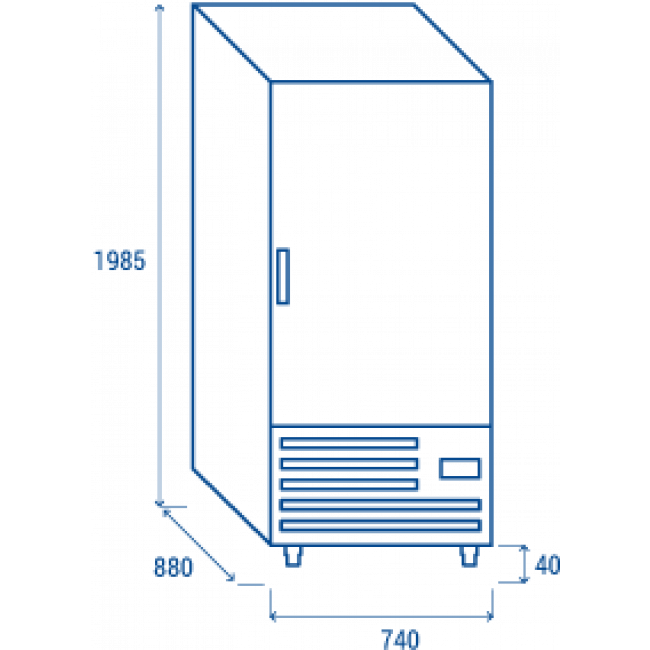

• Inner dimensions : 580x710x1430
• Weight 161 Kg
• Net weight 150Kg
• Cooling gas 48 dB(A)
• Power 350 W
