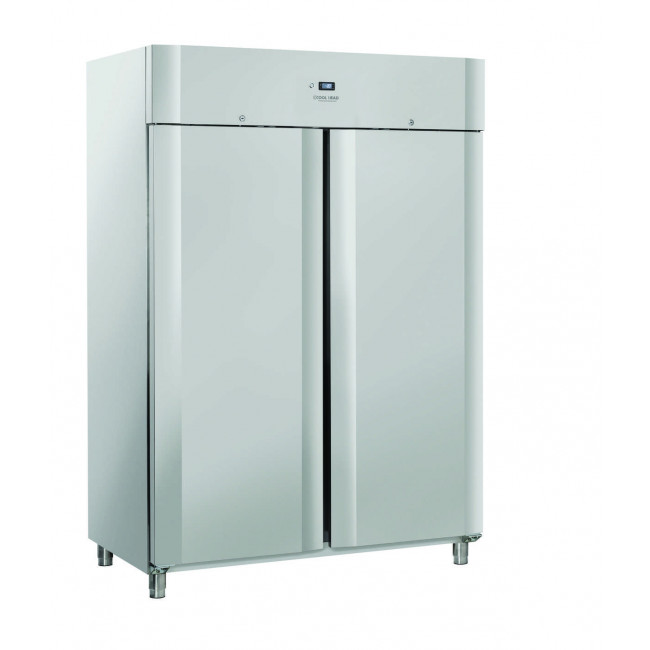

Stainless steel ventilated refrigerated cabinet Model QN12

Stainless steel ventilated refrigerated cabinet

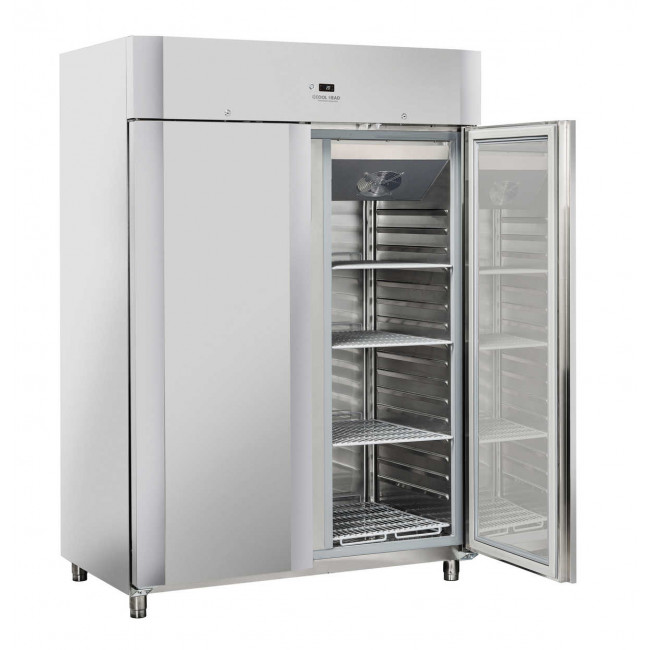

A clean and elegant design with a regular shape for the panel and door and a digital controller with independent main switch. The QN 12 model is a perfect combination of technological improvements and manufacturing experience, with self-closing doors to avoid energy waste, grid guides to help in the cleaning process and both to save space inside the cabinet and to allow a higher weight on the 8 GN 2/1 shelves fitted as standard. It also has an eco-friendly gas R290 and 80mm insulation foam on each side to ensure optimum energy-saving. To complete the high-end features list, it comes with internal LED lights, locks fitted as standard and height-adjustable feet (from 75mm to 90mm).

Technical specifications

• Inner dimensions mm 1230x685x1485


• Cooling gas R290


• Power consumption 2359 W


• Weight Kg 178


• GN2/1 Freezer upright cabinet


• Stainless Steel exterior and interior


• Plastic thermal-braker as chamber body frame (Heated)


• Ventilated Cooling


• Evaporator with anti-corrosion treatment


• Hot gas defrost system


• Foaming Agent Cyclopentane (80mm)


• Curved edge for easy cleaning


• Digital Thermostat


• White backlit main switch


• LED light and lock fitted as standard


• Removable Gasket


• Door with self closing door


• Foamed door handle


• Adjustable shelves GN2/1: 6 + 2 + 1 middle


• N.4 S/S Adjustable feet – (Lockable castor as Optional)


• Energy efficiency class: D
