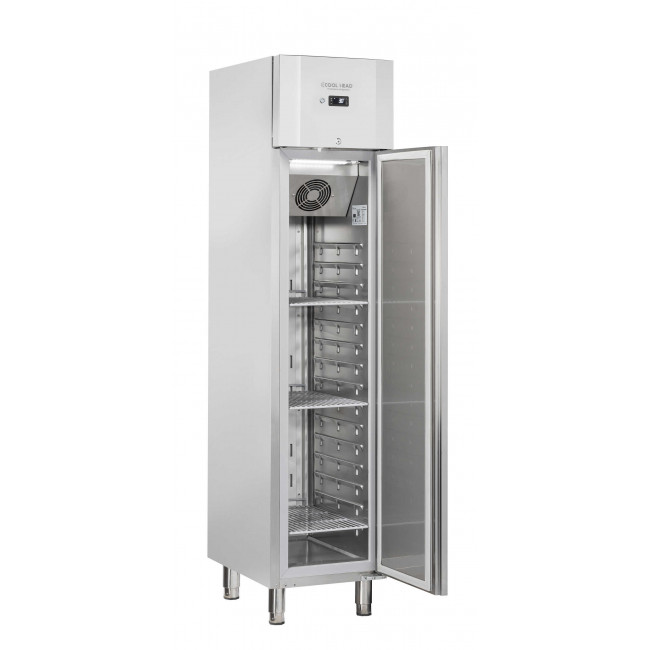

Stainless steel ventilated refrigerated cabinet GN 1/1 Model QN3

Stainless steel ventilated refrigerated cabinet

A clean and elegant design with a regular shape for the panel and door and a digital controller with independent main switch. The QN 3 model is a perfect combination of technological improvements and manufacturing experience, with self-closing door to avoid energy waste, grid guides to help in the cleaning process and both to save space inside the cabinet and to allow a higher weight on the 4 shelves GN1/1 fitted as standard. It also has an eco-friendly gas R290 and 70mm insulation foam on each side to ensure optimum energy-saving. To complete the high-end features list, it comes with internal LED light and lock fitted as standard, reversible door and height-adjustable feet (from 75mm to 90mm).

Technical specifications

• Inner dimensions mm 329x560x1476


• Cooling gas R290


• Power consumption 250 W


• Weight Kg 80


• GN1/1 Freezer upright cabinet


• Stainless Steel exterior and interior


• Plastic thermal-braker as chamber body frame (Heated)


• Ventilated Cooling


• Evaporator with anti-corrosion treatment


• Hot gas defrost system


• Foaming Agent Cyclopentane (70mm)


• Curved edge for easy cleaning


• Digital Thermostat


• White backlit main switch


• LED light and lock fitted as standard


• Removable Gasket


• Door: Self closing and reversible door fitted as standard


• Foamed door handle


• Adjustable shelves GN1/1: 3 Pcs + 1 BOTTOM Shelf


• N.4 S/S Adjustable feet – (Lockable castor as Optional)

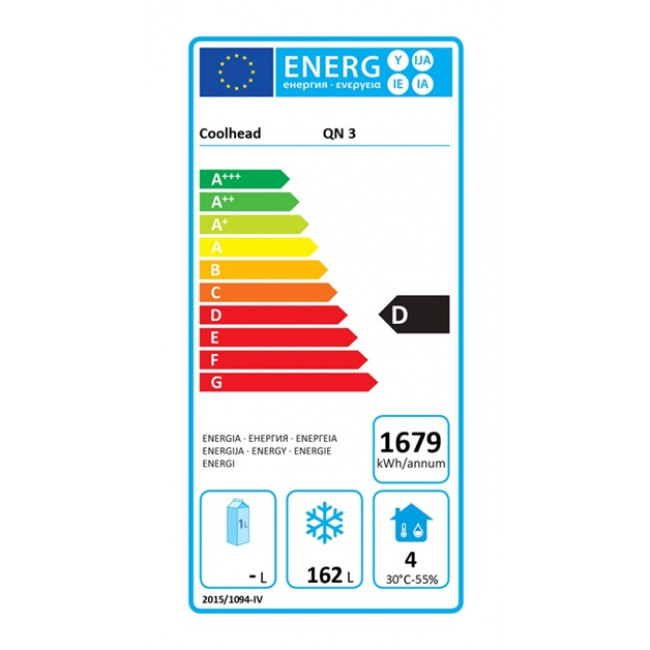

• Energy efficiency class: D
