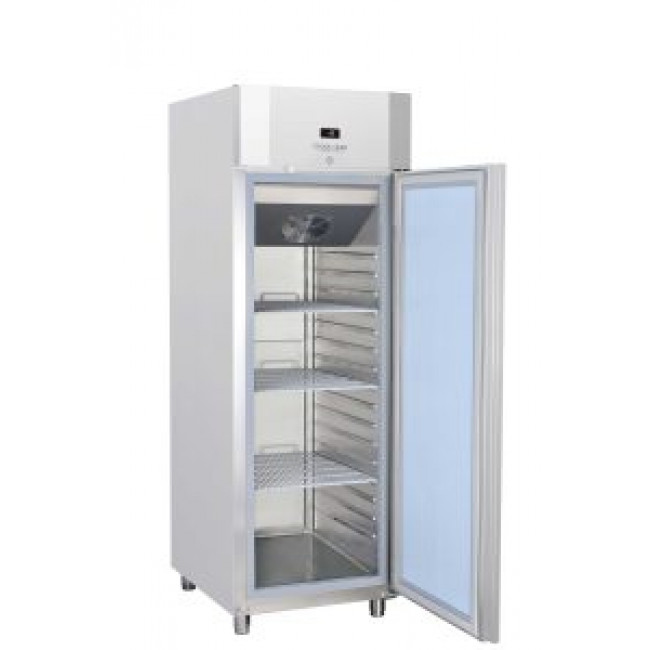

Stainless steel ventilated refrigerated cabinet 70x70 Model QN4

Stainless steel ventilated refrigerated cabinet

A clean and elegant design with a regular shape for the panel and door and a digital controller with independent main switch. The QN 4 model is a perfect combination of technological improvements and manufacturing experience, with self-closing door to avoid energy waste, grid guides to help in the cleaning process and both to save space inside the cabinet and to allow a higher weight on the 4 shelves 530x550mm fitted as standard. It also has an eco-friendly gas R290 and 70mm insulation foam on each side to ensure optimum energy-saving. To complete the high-end features list, it comes with internal LED light and lock fitted as standard, reversible door and height-adjustable feet (from 75mm to 90mm).

Technical specifications

• Inner dimensions mm 534x580x1465
• Cooling gas R290
• Energy consumption  50 W
• Weight Kg 98
• 400 Lt. Freezer upright
• Stainless Steel exterior and interior
• Plastic thermal-braker as chamber body frame (Heated)
• Ventilated Cooling
• Evaporator with anti-corrosion treatment
• Hot gas defrost system
• Foaming Agent Cyclopentane (70mm)
• Curved edge for easy cleaning
• Digital Thermostat
• White backlit main switch
• LED light and lock fitted as standard
• Removable Gasket
• Door: Self closing and reversible door fitted as standard
• Foamed door handle
• Adjustable shelves: 3 Pcs + 1 BOTTOM Shelf
• N.4 Adjustable feet – S/S feet or castor with brake (Option)
• Energy efficiency class: D
