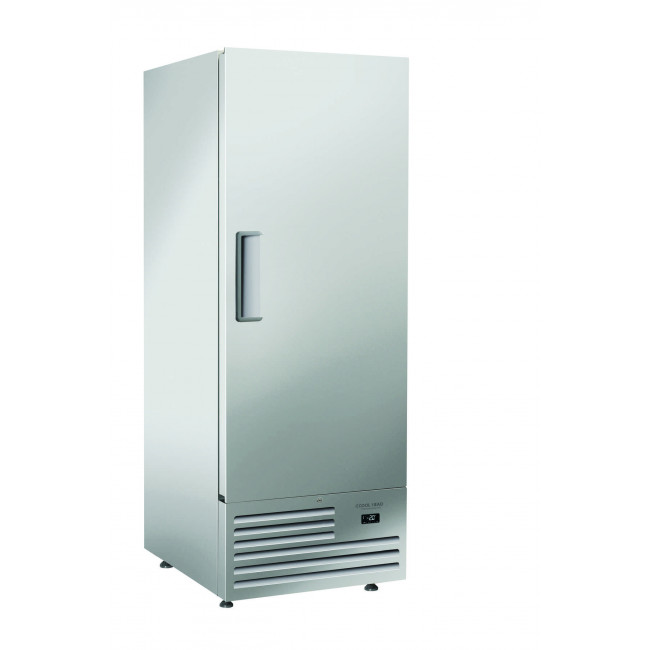

Stainless steel static refrigerated cabinet for ice cream Model GEX688V

Refrigerated cabinet for ice cream

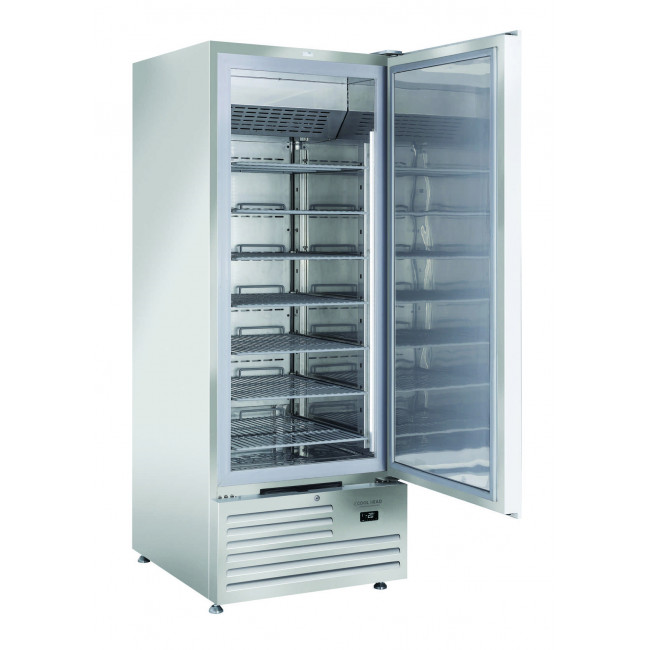

With a clean design, this product has been developed to store and preserve ice-cream. It comes in stainless steel finish, with its engine located at the bottom side to provide a more comfortable goods storage-system. The GEX 688V model is a perfect combination of technological improvements and manufacturing experience, fitted with foamed door handle, self-closing door, digital controller with open-door and high-temperature alarm to avoid energy waste. This model is supplied with 10 adjustable shelves GN2/1, in order to store 46 GN1/3 ice cream pans (150mm – Depth) or 58 5L ice cream pans (360x165X120 mm), ventilated cooling system, eco-friendly gas R290 and 80mm insulation foam on each side to ensure optimum energy-saving. To complete the high-end features list, it comes with removable filter, internal vertical LED light and lock fitted as standard; as well as reversible door and height-adjustable feet on demand.

Technical specifications

• Inner dimensions 580x710x1430


• Cooling gas R290


• Assorbimento 550 W


• Noise level db(A) 48


• Net weight (kg) 150


• GN2/1 Freezer upright cabinet


• Stainless Steel exterior and interior


• Ventilated Cooling


• Evaporator and condenser with anti-corrosion treatment


• Bottom side engine room (for comfortable storage in the cabinet)


• Hot gas defrost system


• Digital thermostat with “opening door” and “High temperature” alarm


• Foaming Agent Cyclopentane (80mm)


• Removable Gasket


• LED light and lock fitted as standard


• Door: Self closing and reversible door fitted as standard


• Adjustable shelves GN2/1: 9 Pcs


• Plastic thermal-braker as chamber body frame (Hot pipe system)


• GN 1/3 Ice cream pans (150mm – Depth) capacity: 46 pcs


• 360x165x120mm Ice cream pans (5 Litres) capacity: 54 pcs


• N.4 Adjustable feet / Castor with brake (Option)

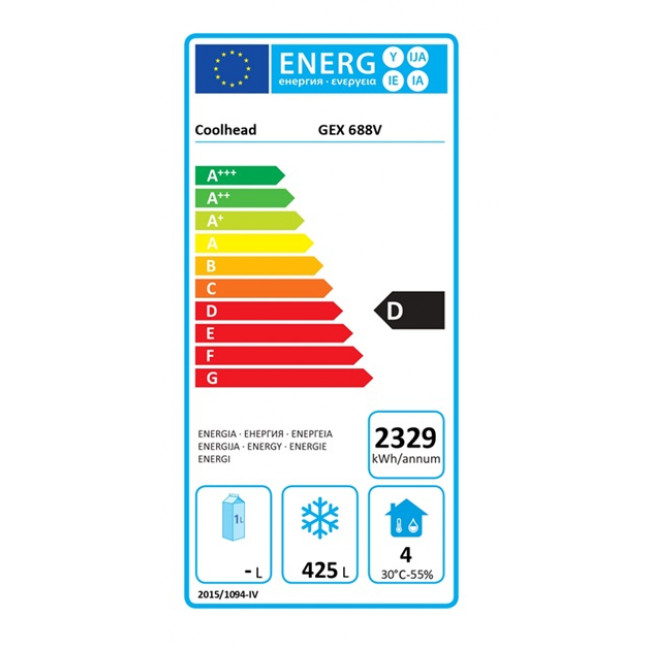

• Energy efficiency class: D
