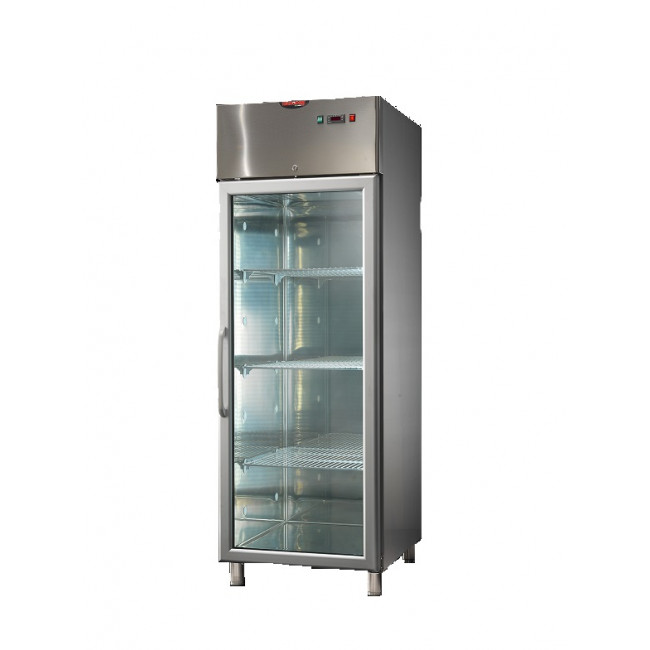

Stainless steel Refrigerated Cabinet GN2/1 Model AF07PKMTNPV positive temperature with glass door

Refrigerated Cabinet

Inside and outside in Stainless Steel, except bottom, ceiling and back outside in Galvanized Steel and rounded inner corners with polyurethane insulation without CFC, injected at high pressure.

Technical specifications

• Insulation thickness: 60 mm.


• Self-closing doors with magnetic seal.


• Front electronic control panel with NTC probe.


• Ventilated refrigeration.


• Removable and tropicalized monobloc refrigerant unit as standard (ambient temperature +43 C and relative humidity of 65%) operating with R404A/R507 gas.


• Cabinets also available in the version without cooling unit.


• Fully automatic defrosting and evaporation of condensate water.


• Stainless steel feet adjustable in height.


• No. 1 Glass door


• Gastronorm 2/1


• VENTILATED


• Refrigerant gas R404A


• C/RH + 43/65% testing


• Absorption W 385


• Power supply V/A/Hz 230/1/50/60


• Weight 132KG


• Standard equipment: N. 6 Guides for grids


• No. 3 plastic coated grids GN 2/1 (65x53 cm)


• Lock with key, Ventilation stop


• Optional on request: Wheels

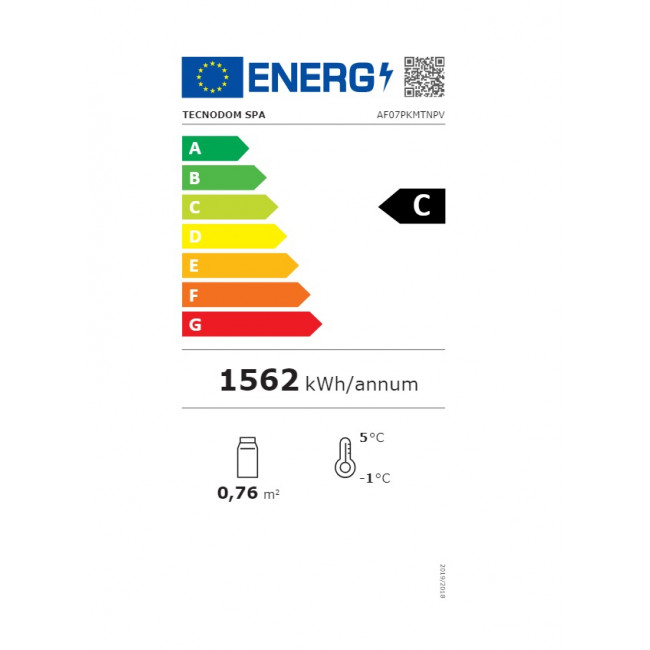

• Energy class C
