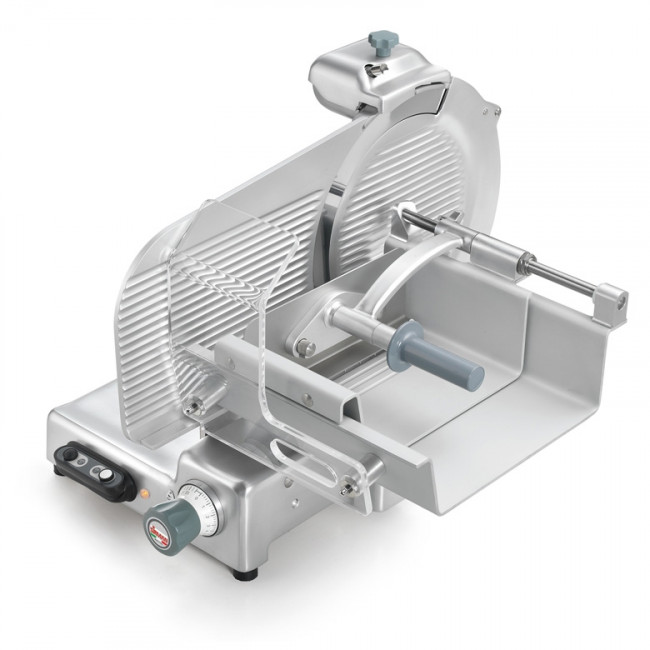

Slicer for meat Model Tiziano 350 Evo VCS

Slicer for meat Sirman Model Tiziano 350 Evo VCS

Rounded design, no sharp edges and visibile screws and chrome plated ground and lapped slide rod.Self lubricating slide rod bushings, vulcanized rubber stops on carriage and removable support cover for thickness gauge plate, stainless steel slice deflector and blade pulley without centre hole to facilitate cleaning. Adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices. Safety ring on table shaft to prevent liquids from seeping inside the machine.

Technical data

• Easily removable blade cover
• Stainless steel screws and fittings
• 48 mm distance between blade and motor
• Bottom cover
• Changeover electronic circuit 110-220V single or 220-280V three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Plastic knob
• Rubber feet
• Stainless steel pushbuttons with IP67 protection rating
• ø blade mm 350 - inch. 14
• Motor watt 380 - Hp 0,52
• Cutting thickness mm 29
• Run of carriage mm 355
• Plate mm 350x287

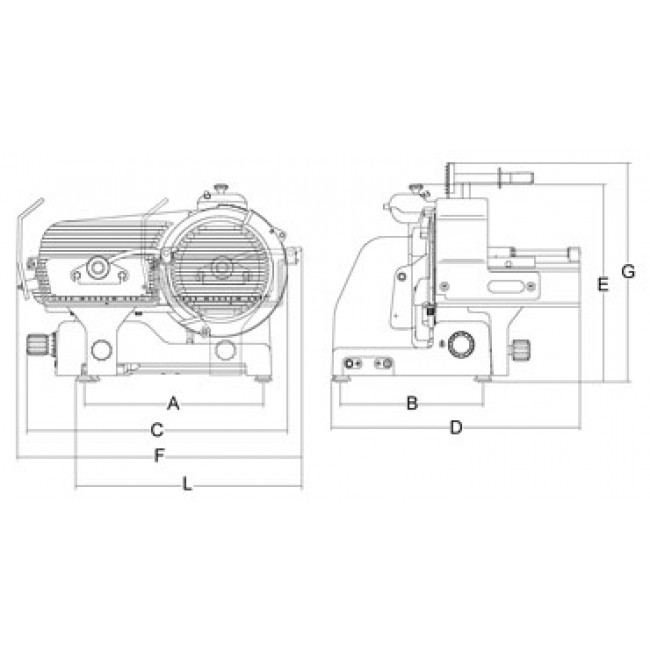

• A mm 513
• B mm 338
• C mm 719
• D mm 681
• E mm 538
• F mm 808
• G mm 550
• L mm 670

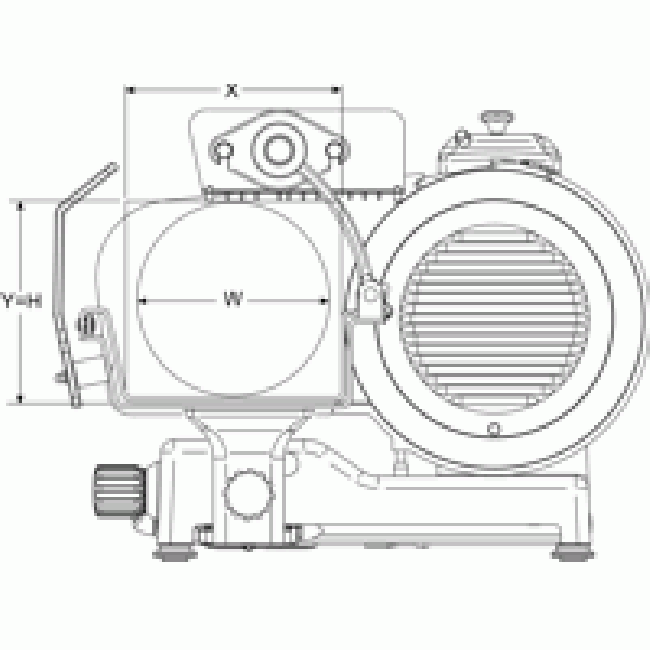

• X mm 287
• Y mm 245
• H mm 245
• W mm 245
• Net weight kg 42
• Packaging dimensions mm 870x840x830
• Gross weight kg 58
