Slicer for meat Model MANTEGNA 300 VCS Cutting thickness mm 29

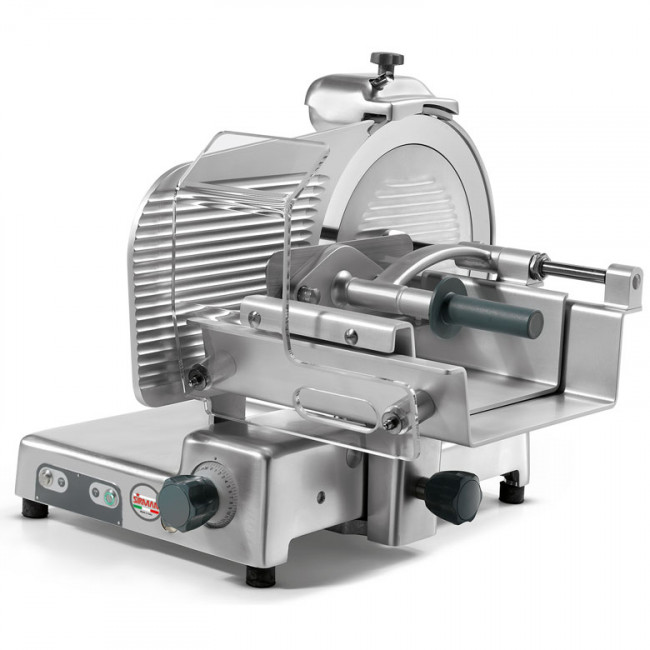

Slicer for meat Sirman MANTEGNA 300 VCS

ounded design and no sharp edges or visible screws and chrome plated ground and lapped slide rod. Lapped cast iron slide rod bushing with vulcanised rubber stops on carriage, removable support cover for thickness gauge plate and stainless steel slice deflector with snap-on bayonet fitting.

Technical data

• Stainless steel screws and fittings
• Bottom cover for accessing electrical components
• Changeover electronic circuit 110-220-380 V single and three-phase
• Built-in sharpening tool with bottom protection
• Plastic knob
• Rubber feet
• Buttons in insulated stainless steel (IP 67) in housing
• 48 mm distance between blade and motor
• ø blade mm 300 - inch. 12
• Motor watt 275 - Hp 0,37
• Cutting thickness mm 29
• Run of carriage mm 310
• Plate mm 340x250

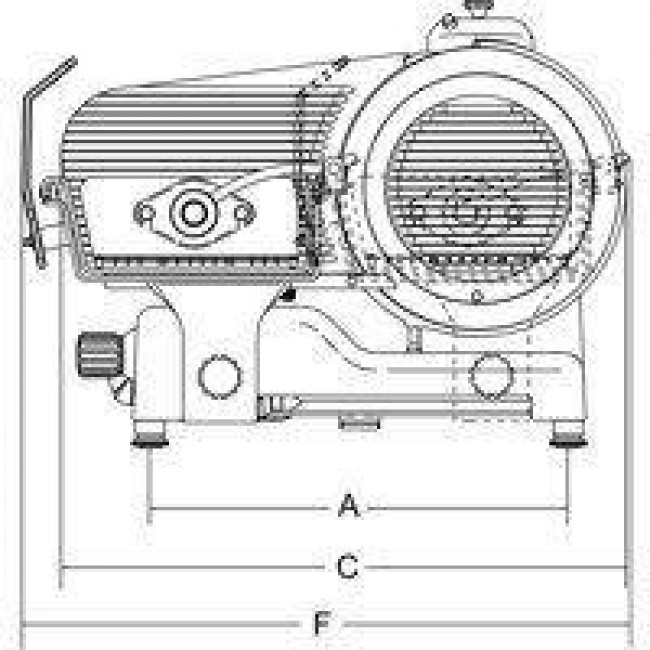

• A mm 468

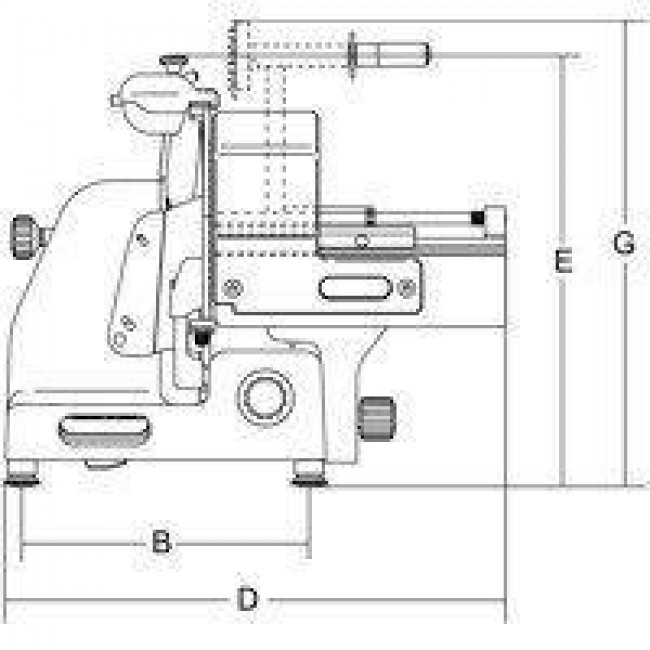

• B mm 338
• C mm 635
• D mm 685
• E mm 500
• F mm 720
• G mm 560

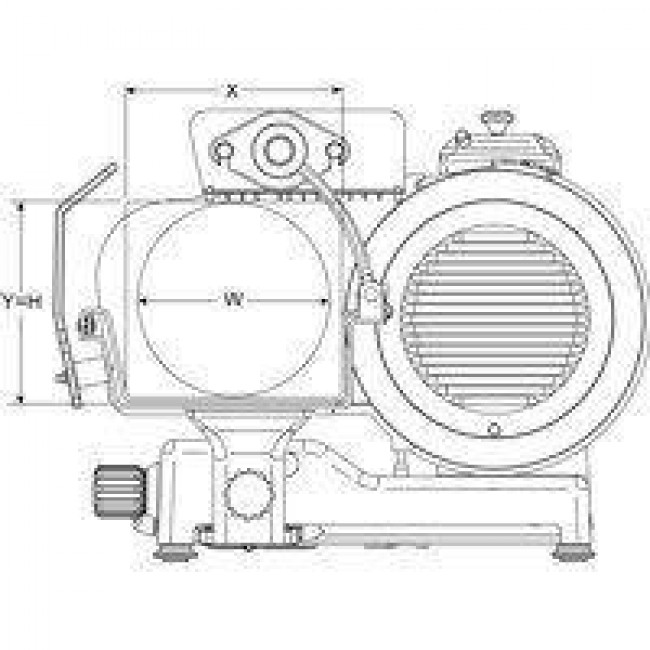

• X mm 250
• Y mm 225
• H mm 225
• W mm 225
• Net weight kg 36
• Packaging dimensions mm 870x840x750
• Gross weight kg 52
