Slicer for meat Model Leonardo 385 Evo VCS

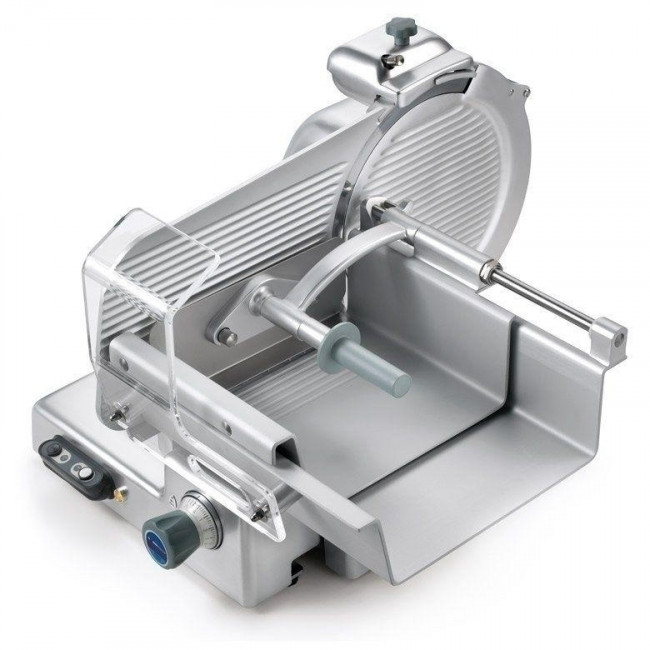

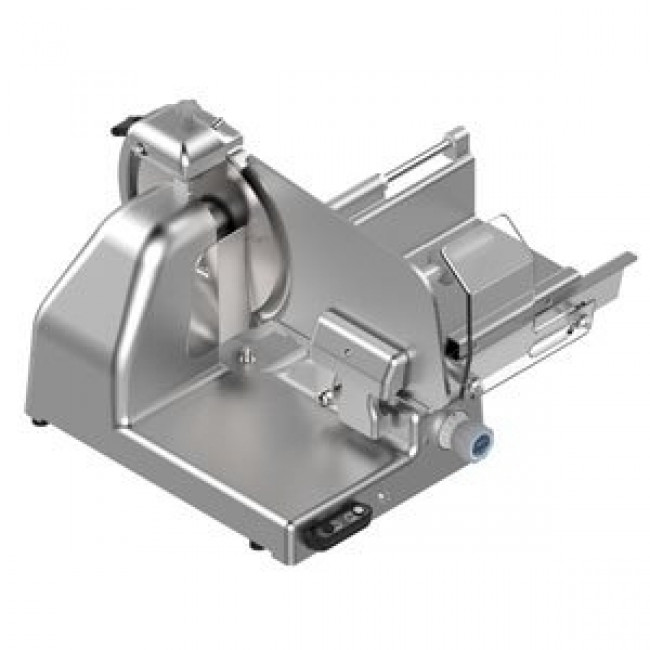

Slicer for meat Sirman Model Leonardo 385 Evo VCS

Size can fit 70 cm deep table and low profile reduced friction blade. Chrome plated ground and lapped slide rod, smooth sliding thanks to lapped iron bushings. Adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices.

Technical data

• Vulcanised rubber stops on carriage
• Stainless steel slice deflector
• Hermetic pulley

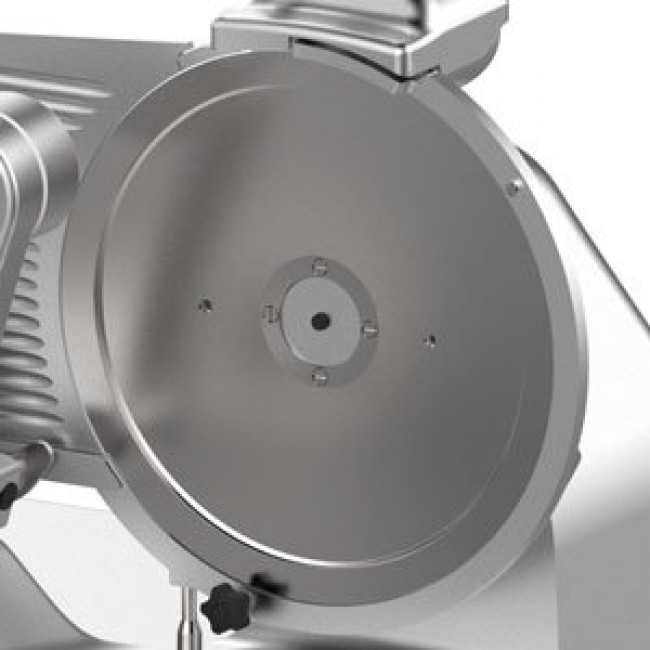

• Blade pulley without centre hole to facilitate cleaning
• Easily removable blade cover
• Stainless steel screws and fittings
• Built-in sharpening tool with bottom protection
• Easy to remove grease guard
• Easy working height to help operator
• Standard blade removal tool
• 70 mm distance between blade and motor
• Plastic knob
• Rubber feet
• Buttons in insulated stainless steel (IP 67) in housing
• ø Blade mm 385 - inch. 16
• Motor watt 380 - Hp 0,52
• Cutting thickness mm 25
• Run of carriage mm 370
• Plate mm 430x300

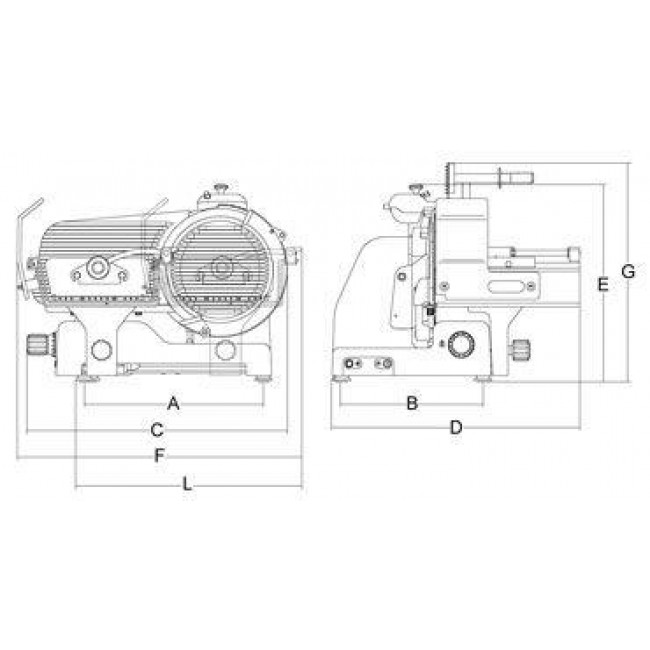

• A mm 515
• B mm 410
• C mm 770
• D mm 742
• E mm 600
• F mm 830
• G mm 606
• L mm 665

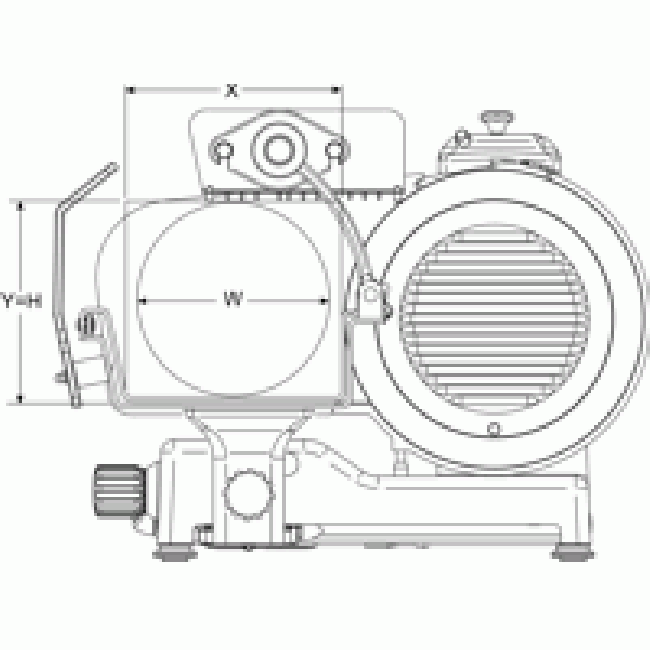

• X mm 295
• Y mm 272
• H mm 272
• W mm 272
• Net weight kg 62
• Packaging dimensions mm 870x840x830
• Gross weight 78
