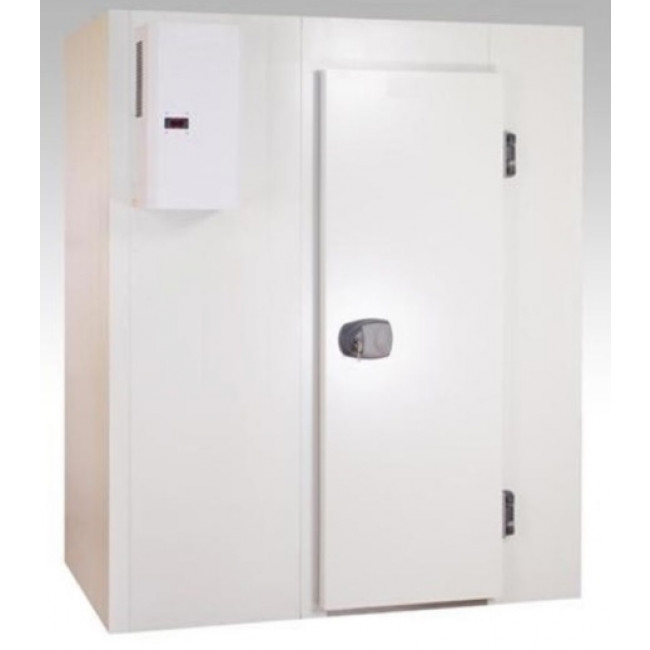

Modular cold room Model JS/SP/7/134X174X207 Panel thickness 7 cm Without floor Without engine

Modular cold rooms

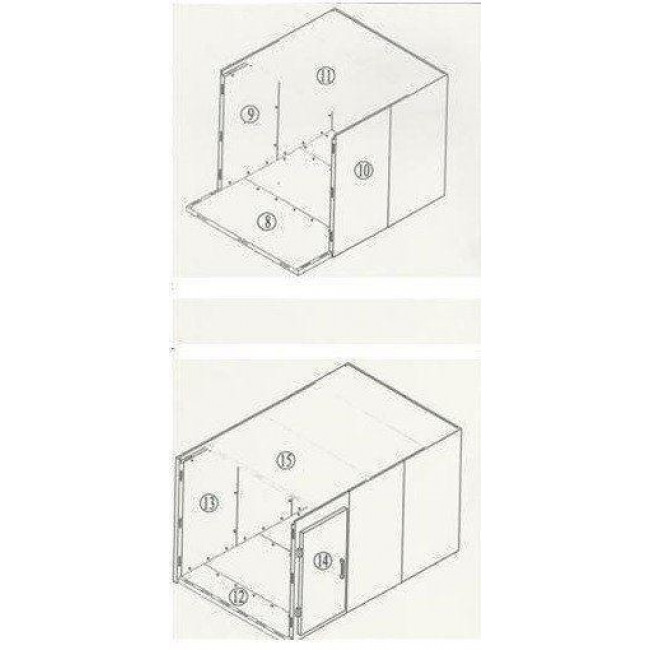

It does not degrade over time, consisting of materials designed not to absorb odors, not allow the nesting of pests and the development of fungi and mold. The modular panel structure allows disassembly, expansion and/or reduction and relocation to another place without any deterioration of the individual components. Cold room composed of modular panels of variable width of cm 40 , cm 60, cm 80, cm 100 and cm 120 in combination with corner panels of cm 27, cm 30 and cm 33

Technical specifications

• Panels thickness cm 7 recommended for TN positive normal temperature
• Locking panels with eccentric hooks from inside cell
• Roof panels retractable
• With sanitary plastic profile along the perimeter floor
• Wall and ceiling panels in non toxic prepainted galvanized steel sheet
• Accessories on request : multi.marino reinforced floor (load on KG250 rubber) multi.marino resin mm.9 (load on rubber kg.300) ;
• On request Partition panels sp.7/10;
• Upon request Supplements for INOX or SK surfaces.

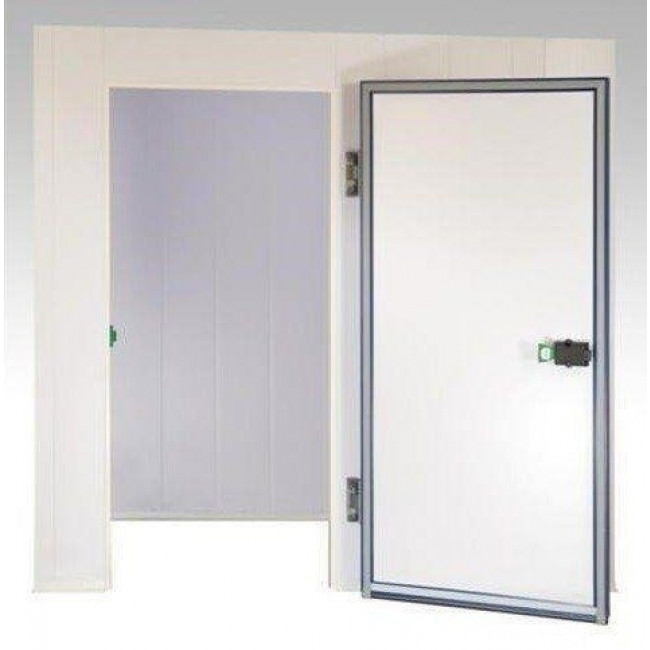

• Insulation: Rigid polyurethane foam 1 door included by cm. H 185 x 80
• Engine excluded
