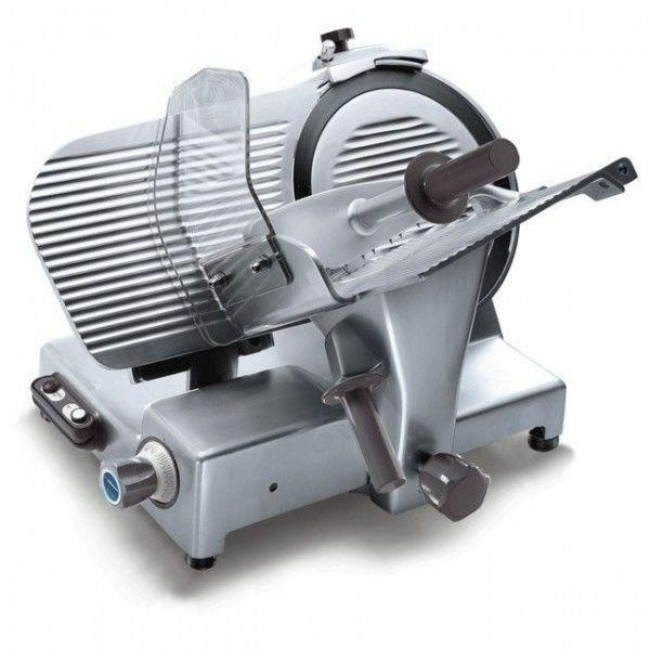

Gravity slicer Model PALLADIO 350

Gravity slicer Sirman Model Modello PALLADIO 350

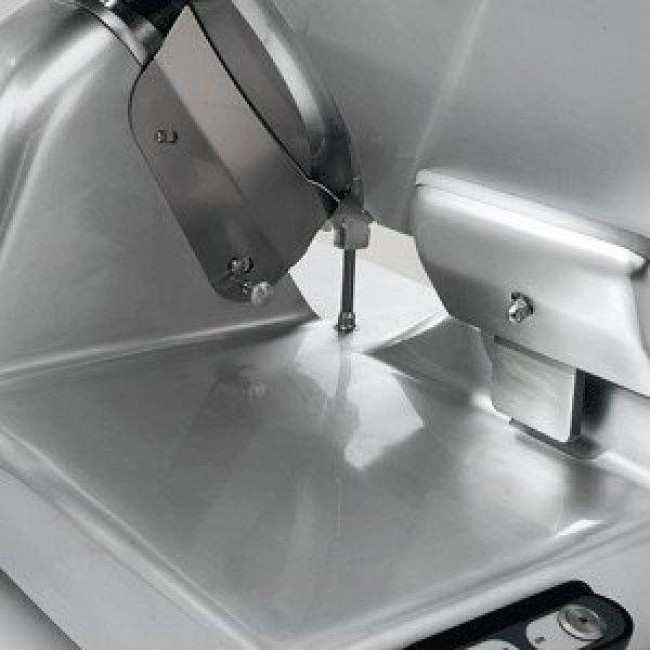

Rounded design, no sharp edges and visibile screws with chrome plated and ground slide rod. Lapped cast iron slide rod bushing and vulcanized rubber stops on carriag and removable support cover for thickness gauge plate. Stainless steel slice deflector with bayonet fitting withstainless steel screws and fittings and enclosed and sealed belt pulley

Technical data

• 49,5 mm distance between blade and motor
• Bottom cover
• Changeover electronic circuit 110-220-380 V single and three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 35°.
• Plastic knob
• Buttons in insulated stainless steel (IP 67) in housing
• ø Blade mm 350 - inch. 14
• Motor watt 370 - Hp 0,50
• Cutting thickness mm 23
• Run of carriage mm 310
• Plate mm 305x270

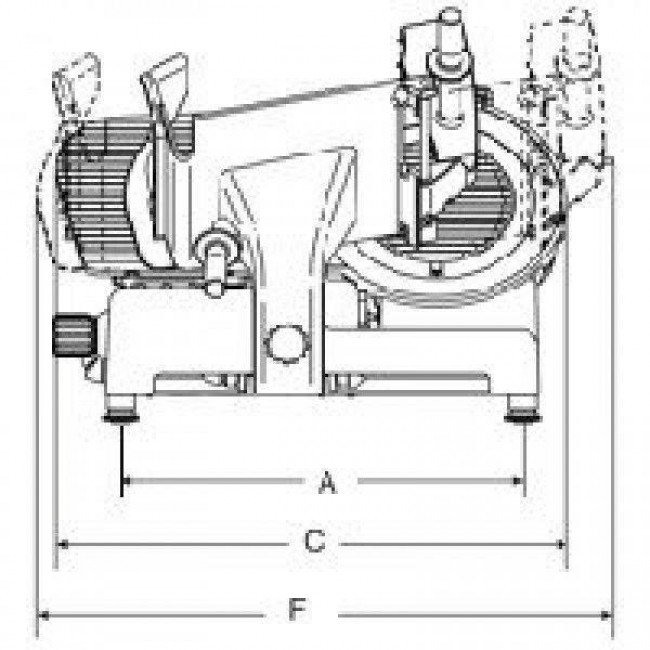

• A mm 465

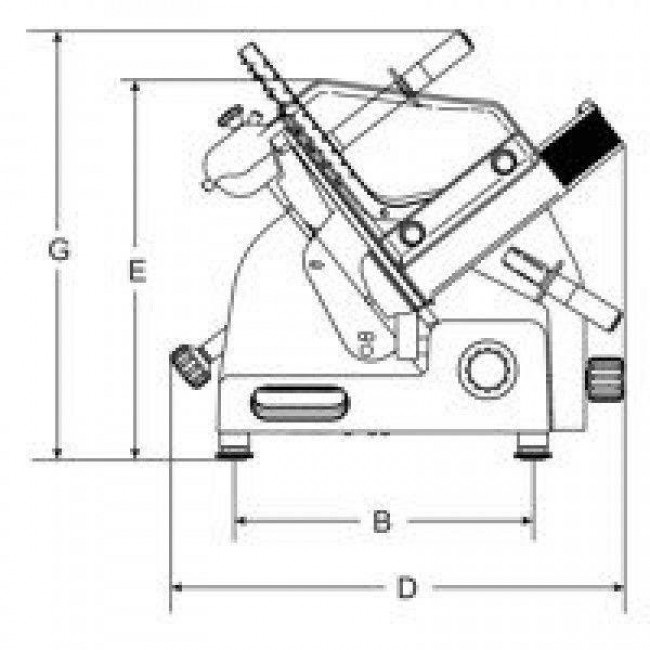

• B mm 340
• C mm 660
• D mm 575
• E mm 455
• F mm 710
• G mm 530

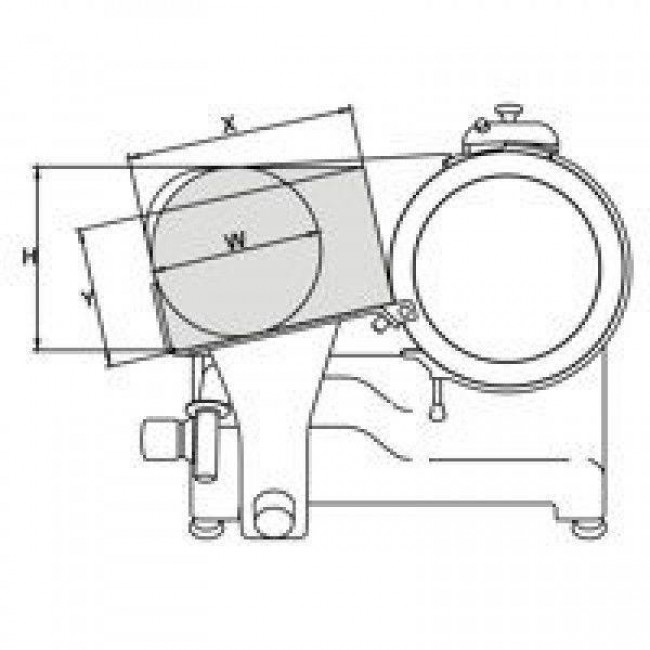

• X mm 270
• Y mm 225
• H mm 275
• W mm 250
• Net weight kg 37
• Packaging dimensions mm 760x640x700
• Gross weight kg 46
