Gravity slicer Model PALLADIO 330
Availability: In stock

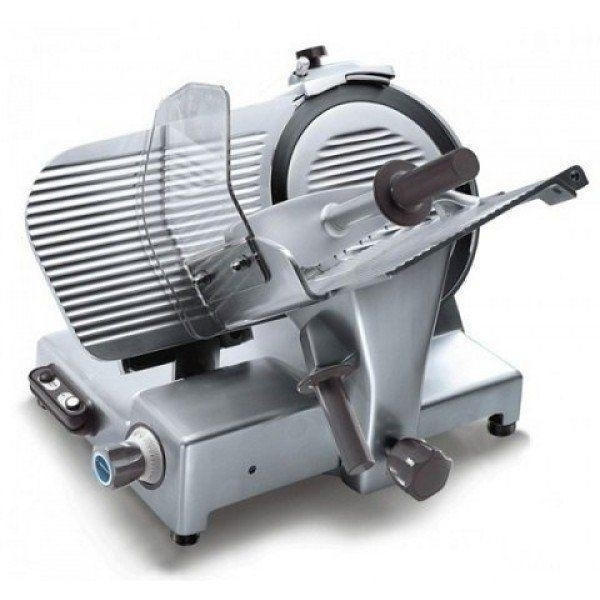

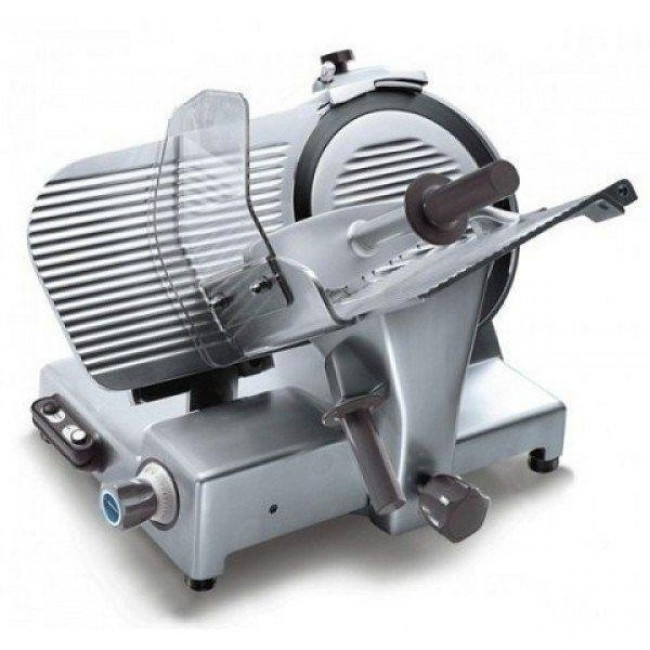

Gravity slicer Sirman Model PALLADIO 330
Rounded design, no sharp edges and visibile screws, chrome plated and ground slide rod and lapped cast iron slide rod bushing. Vulcanized rubber stops on carriage and removable support cover for thickness gauge plate.
Technical specifications
- Stainless steel slice deflector with bayonet fitting
- Stainless steel screws and fittings
- Enclosed and sealed belt pulley
- 49,5 mm distance between blade and motor
- Bottom cover
- Changeover electronic circuit 110-220-380 V single and three phase
- Built in sharpening tool with bottom protection
- Standard blade removal tool
- Blade inclination 35°.
- Plastic knob
- Buttons in insulated stainless steel (IP 67) in housing
- ø Blade mm 330 - inch. 13
- Motor watt 275 - Hp 0,37
- Cutting thickness mm 23
- Run of carriage mm 310
- Plate mm 305x270

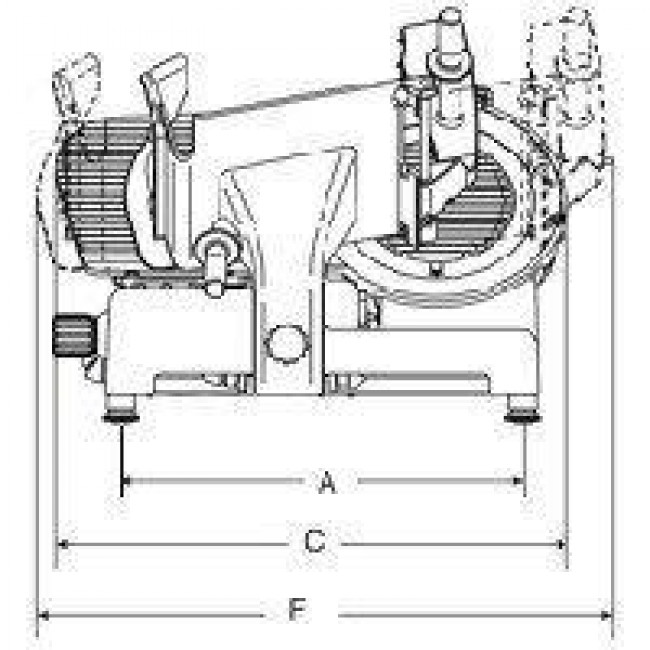

- A mm 465

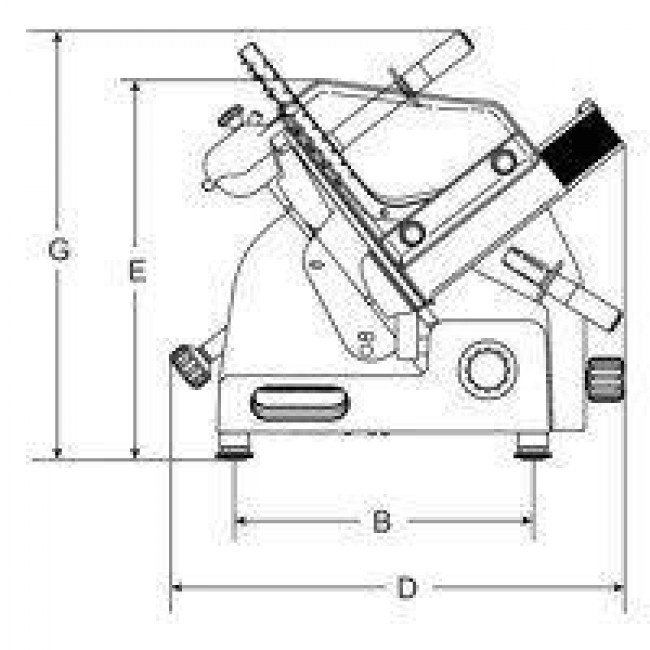

- B mm 340
- C mm 645
- D mm 570
- E mm 455
- F mm 710
- G mm 535

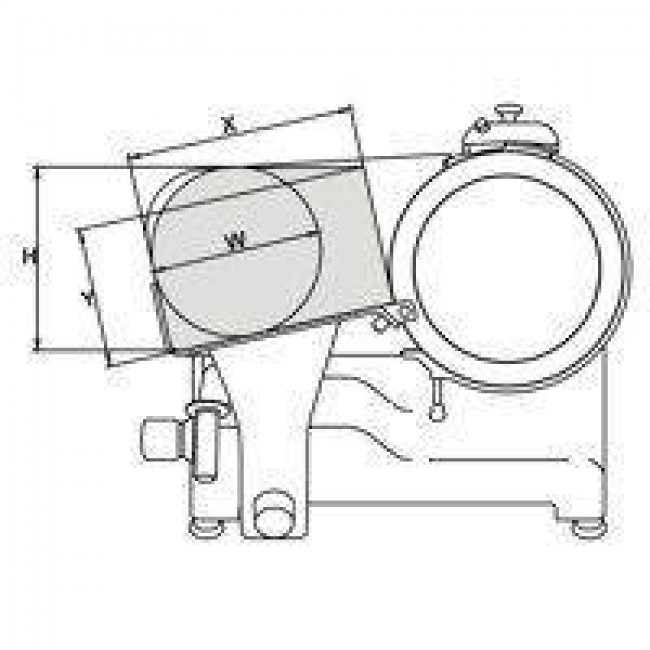

- X mm 270
- Y mm 210
- H mm 260
- W mm 240
- Net weight kg 36
- Packaging dimensions mm 760x640x700
- Gross weight kg 45
Gravity slicer Sirman Model PALLADIO 330
Rounded design, no sharp edges and visibile screws, chrome plated and ground slide rod and lapped cast iron slide rod bushing. Vulcanized rubber stops on carriage and removable support cover for thickness gauge plate.
Technical specifications
- Stainless steel slice deflector with bayonet fitting
- Stainless steel screws and fittings
- Enclosed and sealed belt pulley
- 49,5 mm distance between blade and motor
- Bottom cover
- Changeover electronic circuit 110-220-380 V single and three phase
- Built in sharpening tool with bottom protection
- Standard blade removal tool
- Blade inclination 35°.
- Plastic knob
- Buttons in insulated stainless steel (IP 67) in housing
- ø Blade mm 330 - inch. 13
- Motor watt 275 - Hp 0,37
- Cutting thickness mm 23
- Run of carriage mm 310
- Plate mm 305x270
- A mm 465
- B mm 340
- C mm 645
- D mm 570
- E mm 455
- F mm 710
- G mm 535
- X mm 270
- Y mm 210
- H mm 260
- W mm 240
- Net weight kg 36
- Packaging dimensions mm 760x640x700
- Gross weight kg 45
Manufacturer | Sirman |
---|---|
type | By gravity |
Blade diameter | mm 330 |
Length | 71 |
Depth | 57 |
Height (cm) | 53.5 |
Blade diameter | 33 |
