Gravity slicer Model PALLADIO 330 INGR.TOP

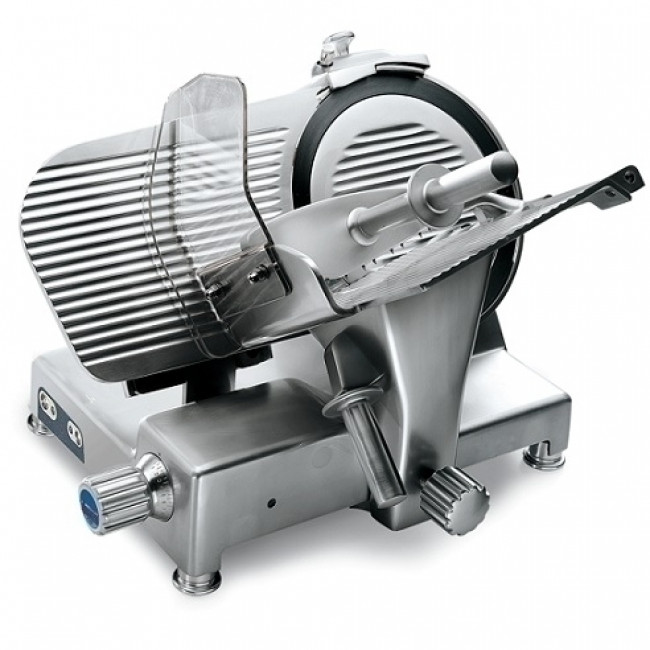

Gravity slicer Sirman Model PALLADIO 330 INGR. TOP

Rounded design, no sharp edges and visibile screws with chrome plated and ground slide rod, lapped cast iron slide rod bushing and vulcanized rubber stops on carriage and removable support cover for thickness gauge plate.

Technical specifications

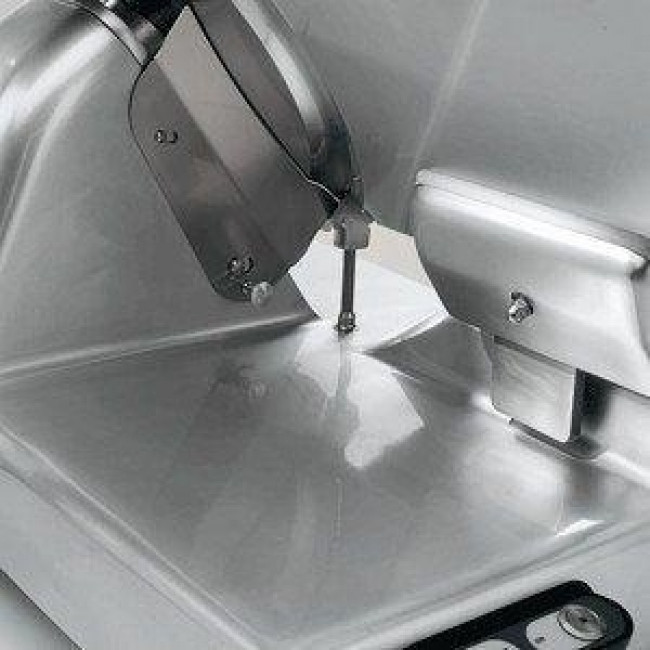

• Stainless steel slice deflector with bayonet fitting
• Stainless steel screws and fittings
• 49,5 mm distance between blade and motor
• Bottom cover
• Changeover electronic circuit 110-220-380 V single and three phase.
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 35°.

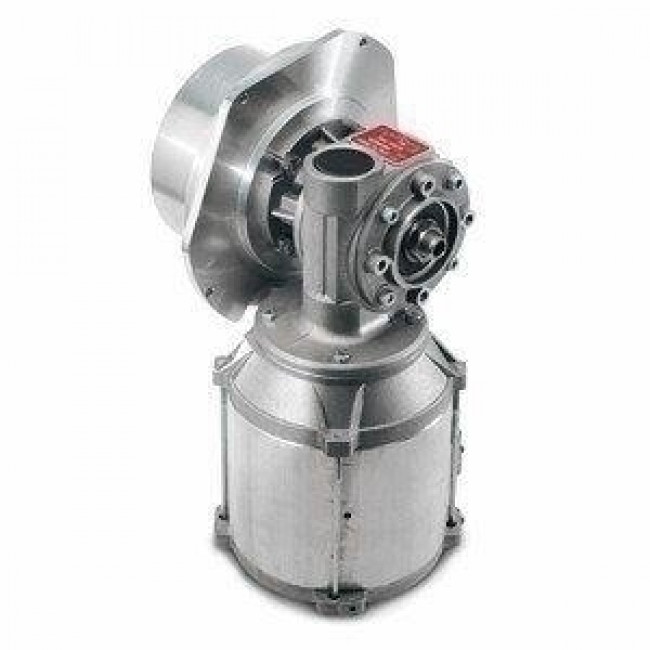

• Enclosed and sealed worm gear reduction unit. Oil bath lubrication
• Automatic version not available
• ø Blade ma mm 330 - inch. 13
• Motor watt 400 - Hp 0,54
• Cutting thickness mm 23
• Run of carriage mm 310
• Plate mm 305x270

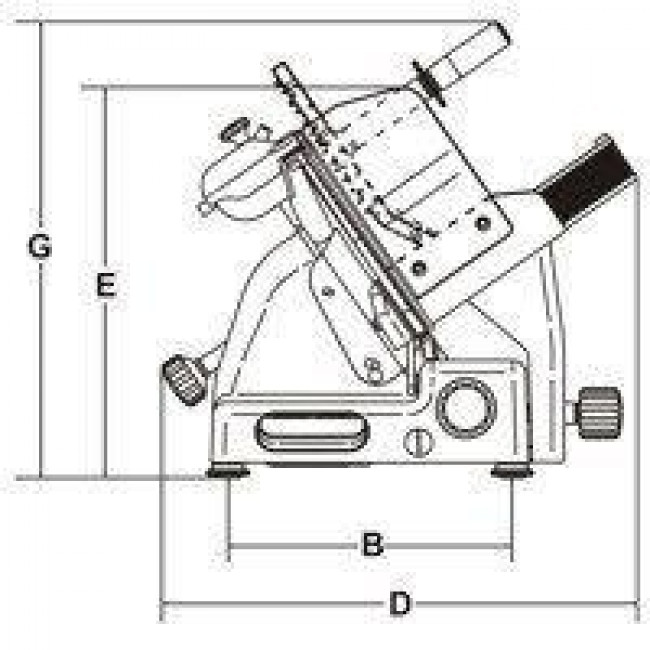

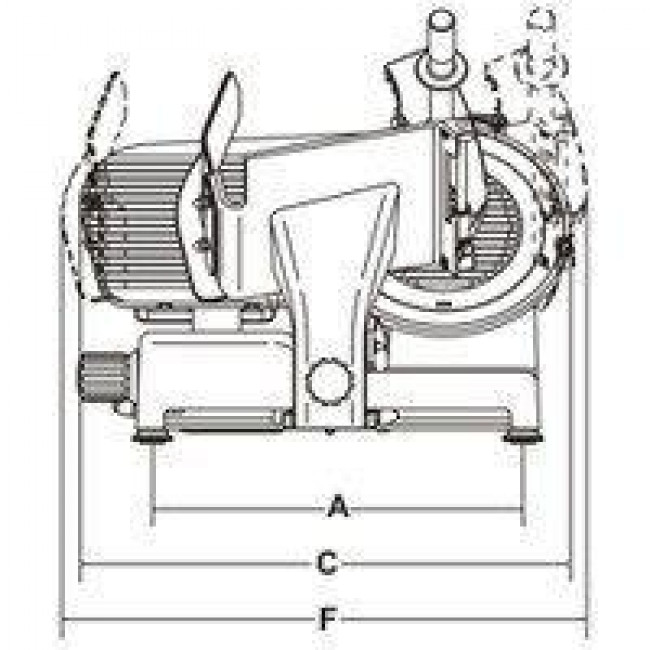

• A mm 465
• B mm 340
• C mm 645
• D mm 570
• E mm 455
• F mm 710
• G mm 535

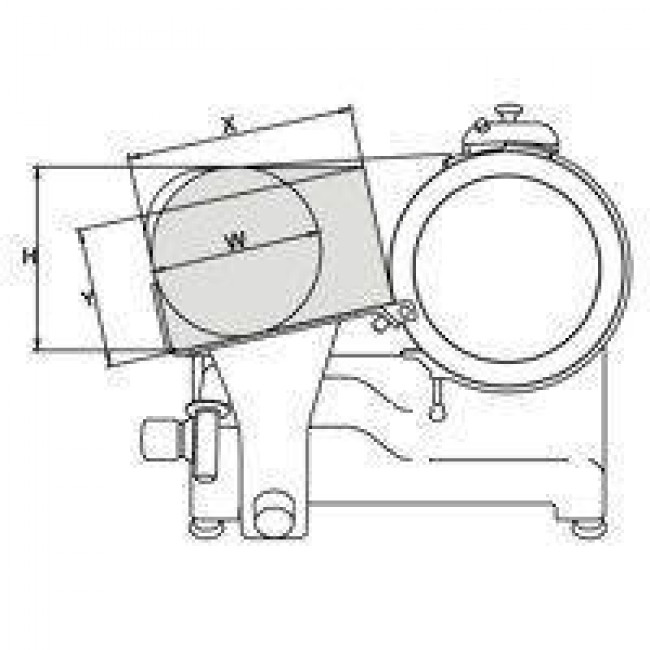

• X mm 270
• Y mm 210
• H mm 260
• W mm 240
• Net weight kg 37
• Packaging dimensions mm 760x640x700
• Gross weight kg 46
