Gravity slicer Model PALLADIO 300 TOP

Gravity slicer Sirman Model PALLADIO 300 TOP

Rounded design, no sharp edges and visibile screws with hrome plated and ground slide rod and lapped cast iron slide rod bushing. Vulcanized rubber stops on carriage and removable support cover for thickness gauge plate.

Technical data

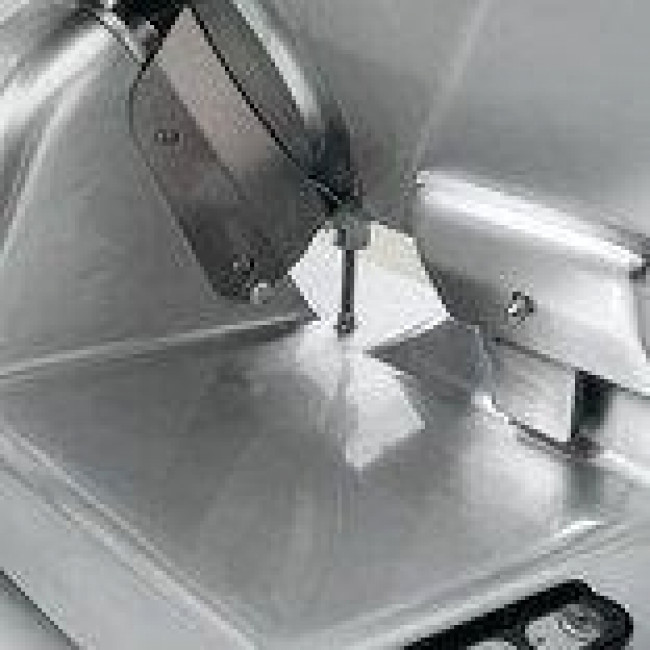

• Stainless steel slice deflector with bayonet fitting
• Stainless steel screws and fittings
• Enclosed and sealed belt pulley.
• 49,5 mm distance between blade and motor
• Bottom cover
• Changeover electronic circuit 110-220-380 V single and three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 35°.
• Aluminium knob
• Aluminium telescopic feet with rubber base

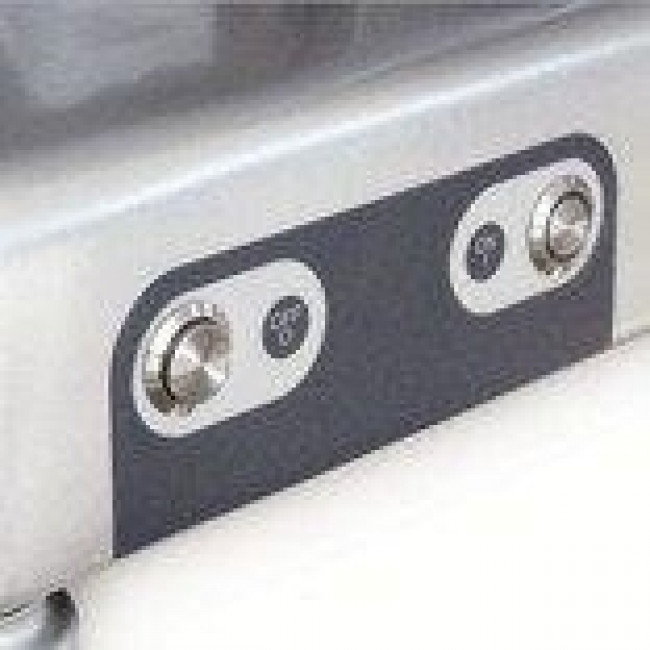

• Stainless steel pushbuttons with IP67 protection rating
• Maintenance tool kit
• ø Blade mm 300 - inch. 12
• Motor watt 275 - Hp 0,37
• Cutting thickness mm 23
• Run of carriage mm 310
• Plate mm 305x270

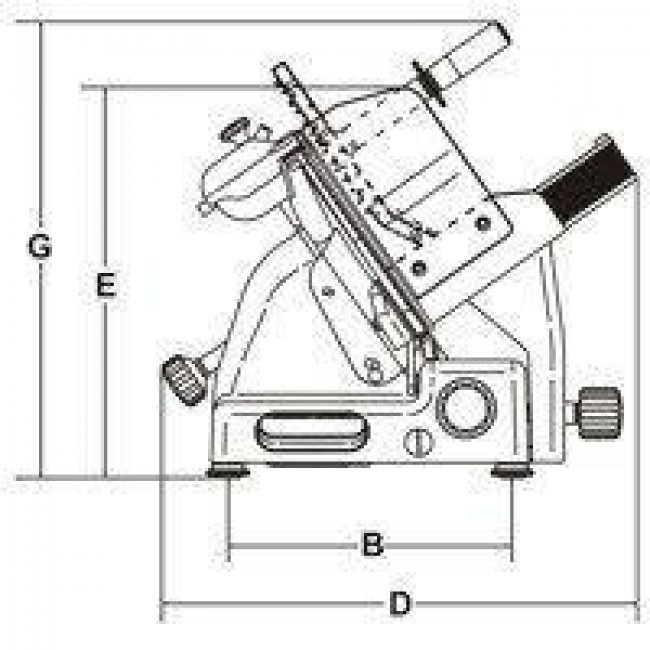

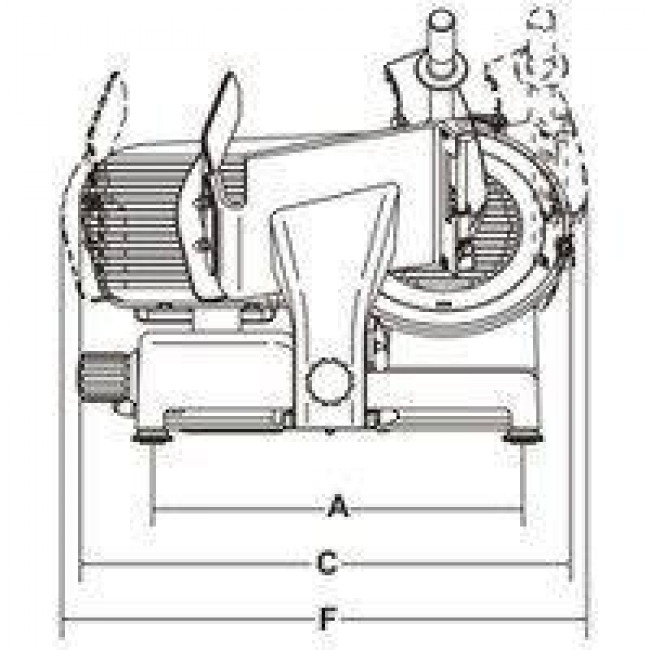

• A mm 465
• B mm 340
• C mm 615
• D mm 547
• E mm 465
• F mm 710
• G mm 545

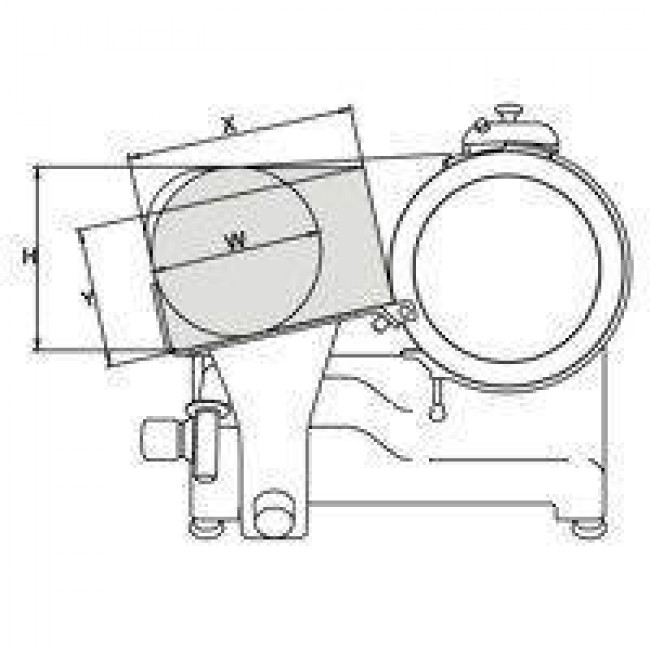

• X mm 270
• Y mm 190
• H mm 240
• W mm 220
• Net weight kg 35
• Packaging dimensions mm 760x640x700
• Gross weight kg 44
