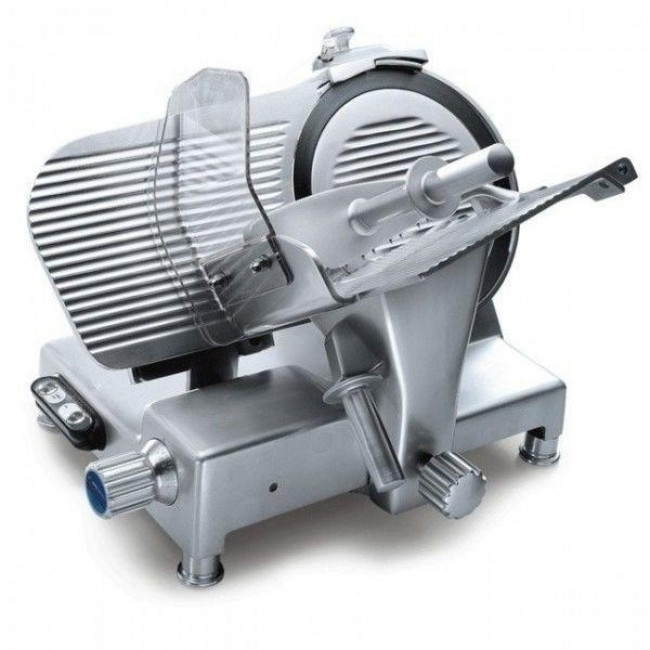

Gravity slicer Model PALLADIO 300 INGR. TOP

Gravity slicer Sirman Model PALLADIO 300 INGR. TOP

Enclosed and sealed worm gear reduction unit, oil bath lubrication and changeover electronic circuit 110-220-380 V single and three phase.

Technical specifications

• Rounded design, no sharp edges and visibile screws.
• Chrome plated and ground slide rod
• Lapped cast iron slide rod bushing
• Vulcanized rubber stops on carriage
• Removable support cover for thickness gauge plate

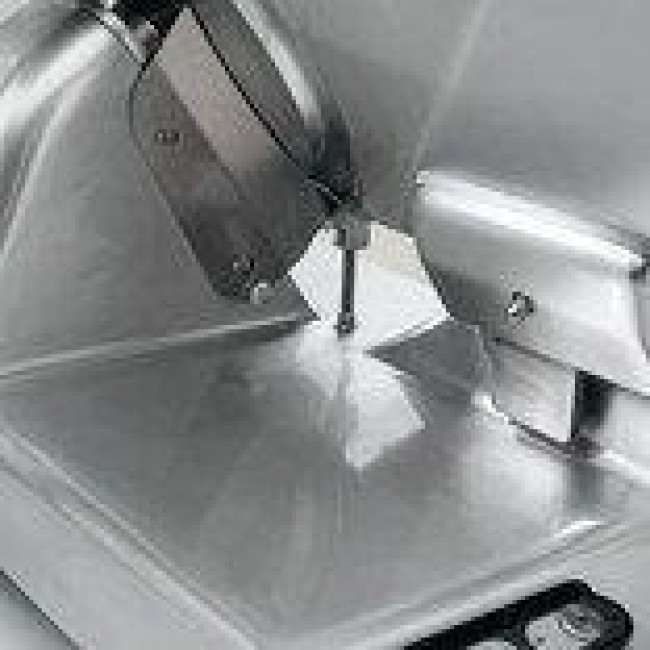

• Stainless steel slice deflector with bayonet fitting
• Stainless steel screws and fittings
• 49,5 mm distance between blade and motor
• Bottom cover
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 35°.
• Automatic version not available.
• ø Blade mm 300 - inch. 12
• Motor watt 400 - Hp 0,54
• Cutting thickness mm 23
• Run of carriage mm 310
• Plate mm 305x270

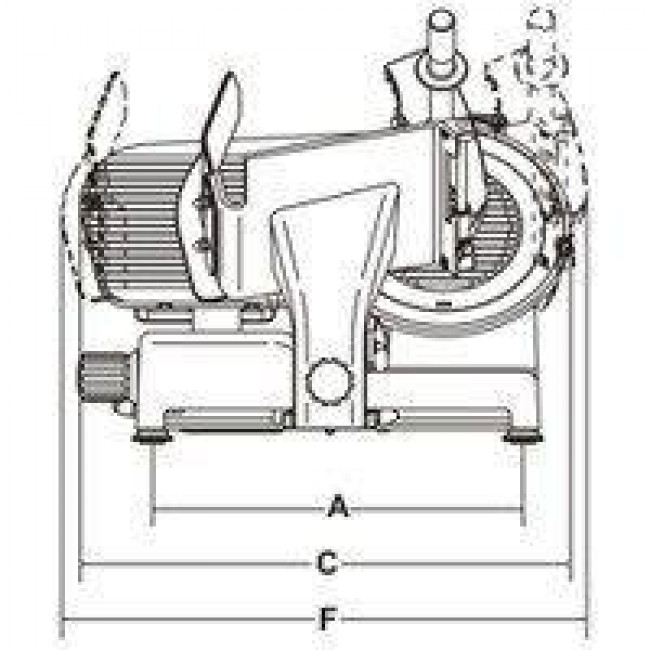

• A mm 465

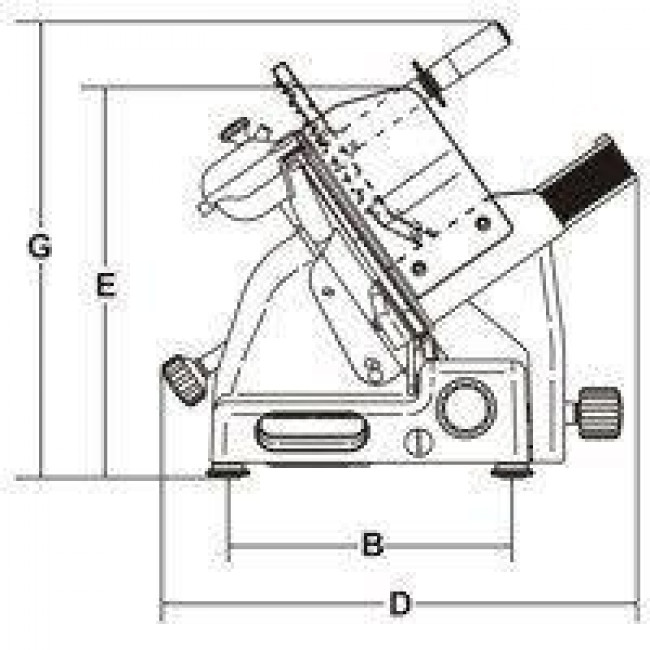

• B mm 340
• C mm 615
• D mm 547
• E mm 465
• F mm 710
• G mm 545

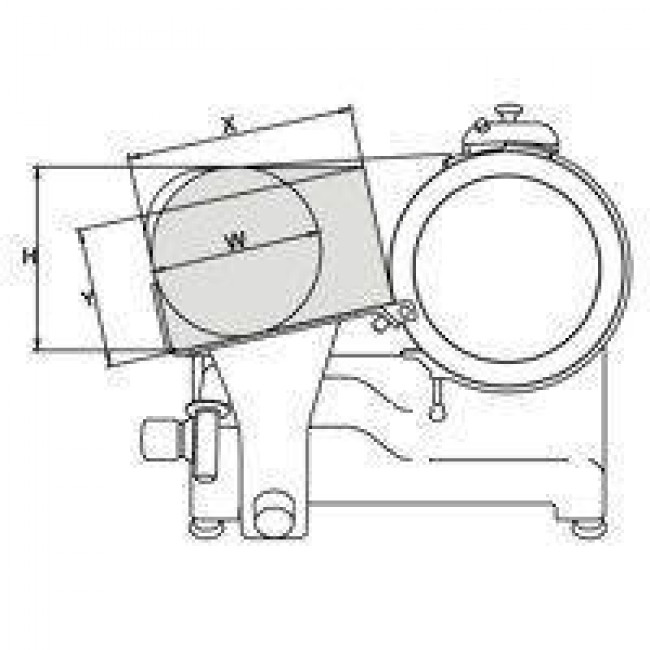

• X mm 270
• Y mm 190
• H mm 240
• W mm 220
• Net weight kg 36
• Packaging dimensions mm 760x640x700
• Gross weight kg 45
