Gravity slicer Model MIRRA 275 C Cutting thickness mm 13 Hopper mm 230x230

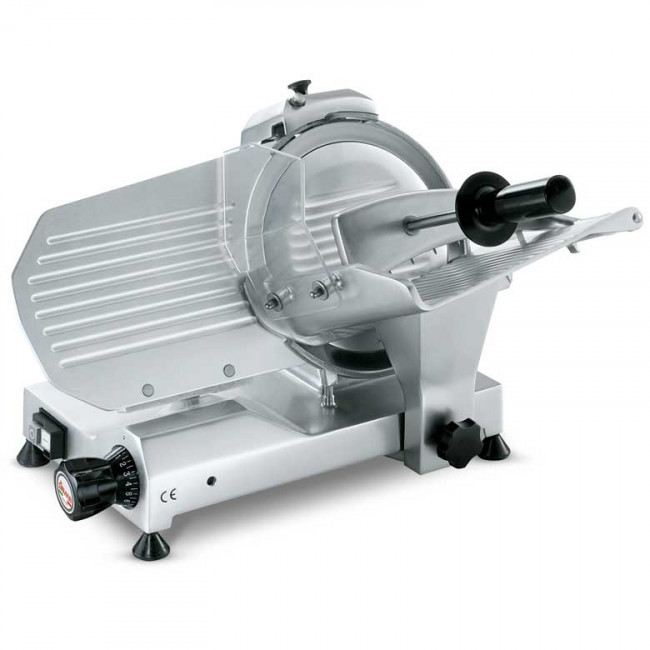

Gravity slicer Sirman Model MIRRA 275 C

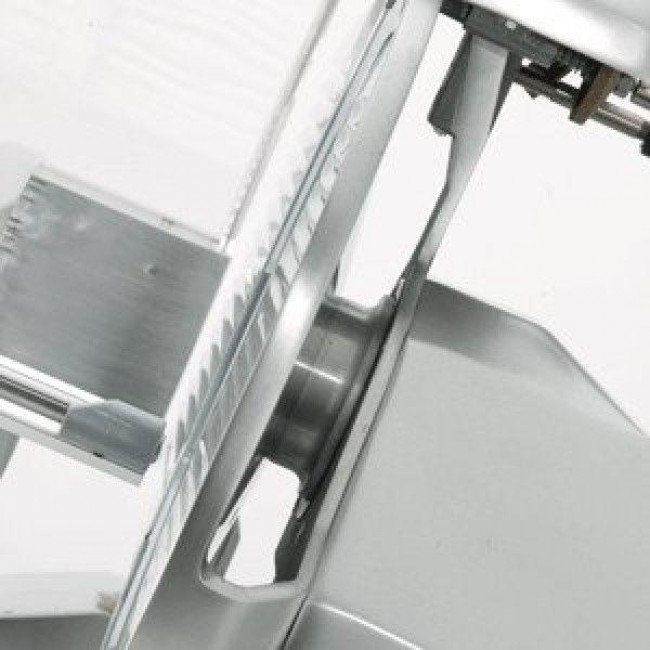

Anodized cast aluminium alloy, great distance between blade and motor for easy cleaning, ventilated motor and forged, hardened large thickness blades. Carriage running on self-lubricating bushes and lapped pins and stainless steel screws and slice deflector.

Technical specifications

• Strong thickness gauge support
• Cast-in sharpener assembly
• Compact dimensions and great cutting capacity
• CE professional with device for releasing the carriage
• Teflon coated or toothed blades are available on demand
• Blade inclination 25°.
• ø Blade mm 275 - inch. 11
• Motor watt 147 - hp 0,20
• Cutting thickness mm 13
• Run of carriage mm 245
• Plate mm 230x230

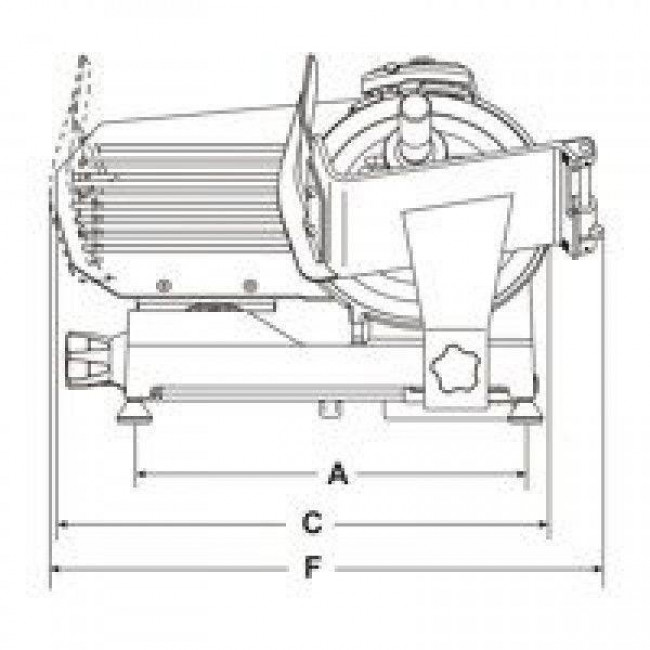

• A mm 395

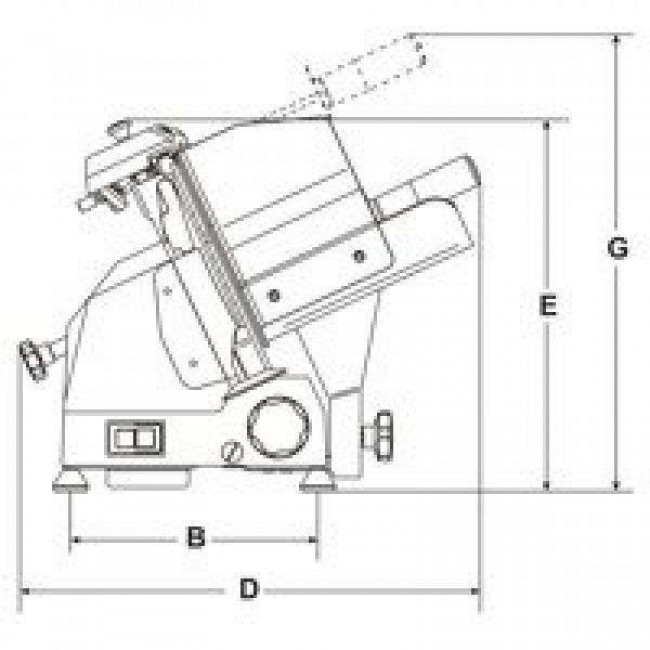

• B mm 245
• C mm 535
• D mm 560
• E mm 370
• F mm 570
• G mm 475

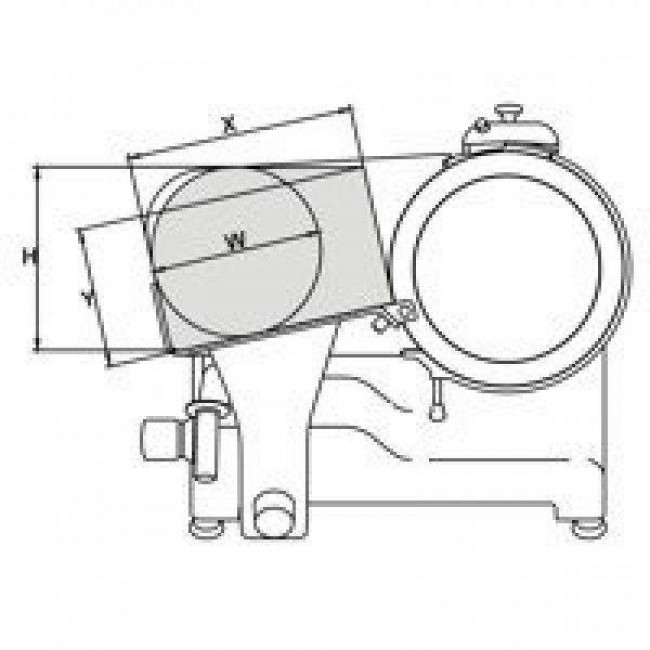

• X mm 215
• Y mm 165
• H mm 200
• W mm 190
• Net weight kg 17
• Packaging dimensions mm 600x500x420
• Gross weight kg 20
