Gravity slicer Model MIRRA 220 A.I. C

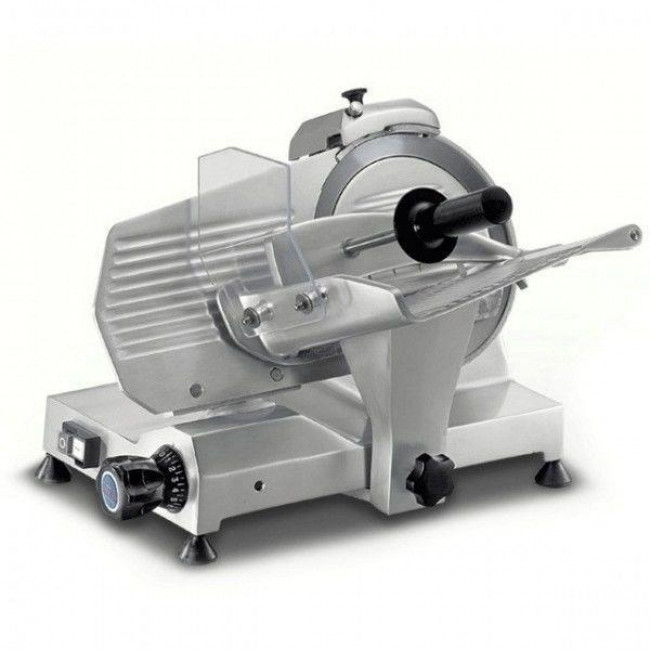

Gravity slicer Sirman Model MIRRA 220 A.I. C

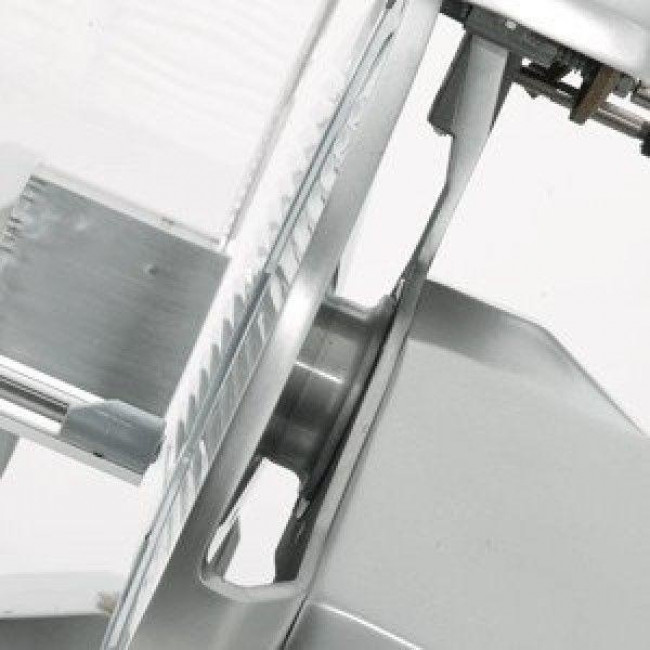

Anodized cast aluminium alloy, great distance between blade and motor for easy cleaning, ventilated motor and forged, hardened large thickness blades

Technical specifications

• Carriage running on self-lubricating bushes and lapped pins
• Stainless steel screws and slice deflector
• Strong thickness gauge support
• Cast-in sharpener assembly
• Compact dimensions and great cutting capacity

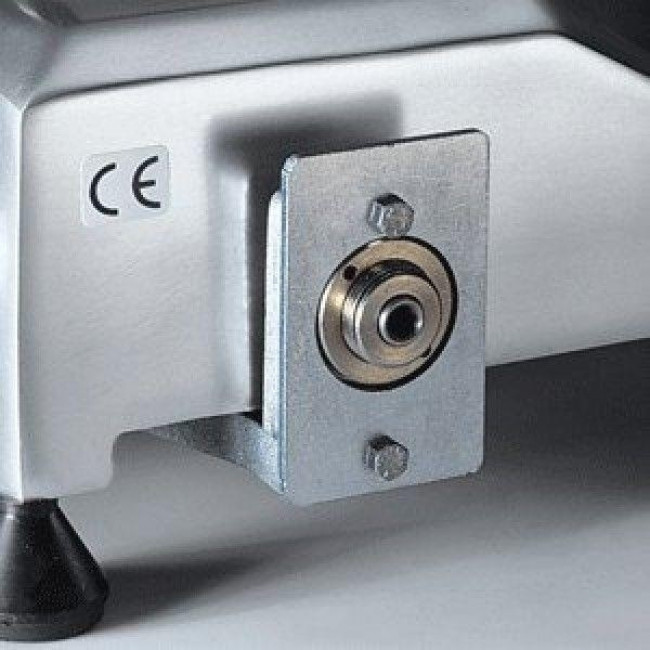

• CE professional with device for releasing the carriage
• Teflon coated or toothed blades are available on demand
• Blade inclination 25°.
• Blade mm 220 - inches 9
• Motor watt 147 - Hp 0,20
• Cutting thickness mm 13
• Run of carriage mm 245
• Plate mm 230x230

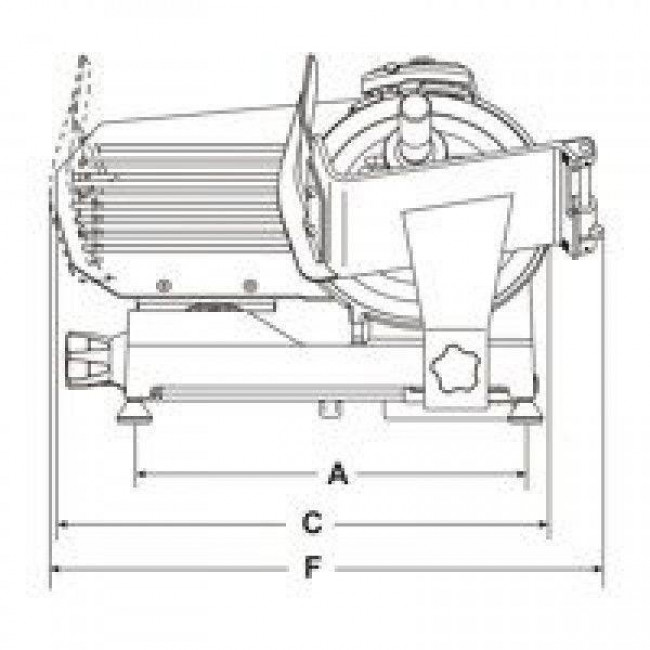

• A mm 395

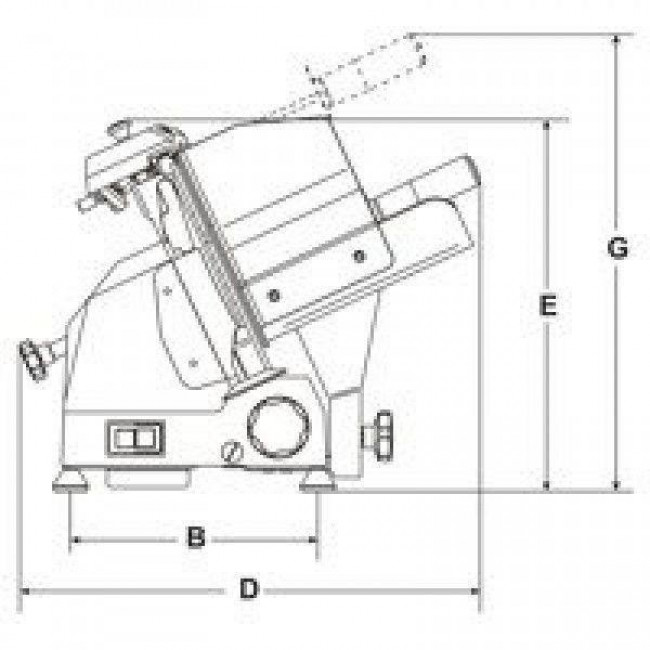

• B mm 245
• C mm 480
• D mm 560
• E mm 370
• F mm 570
• G mm 475

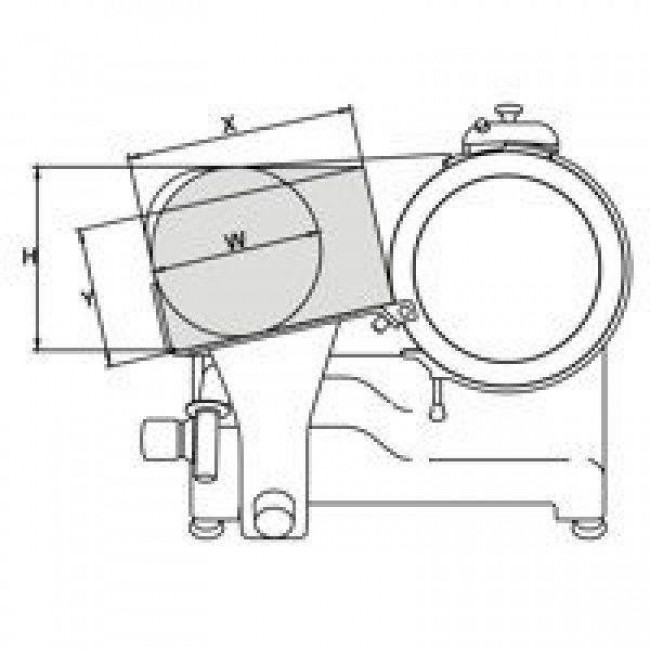

• X mm 210
• Y mm 135
• H mm 170
• W mm 160
• Net weight kg 15
• Packaging dimensions mm 600x500x420
• Gross weight kg 17
