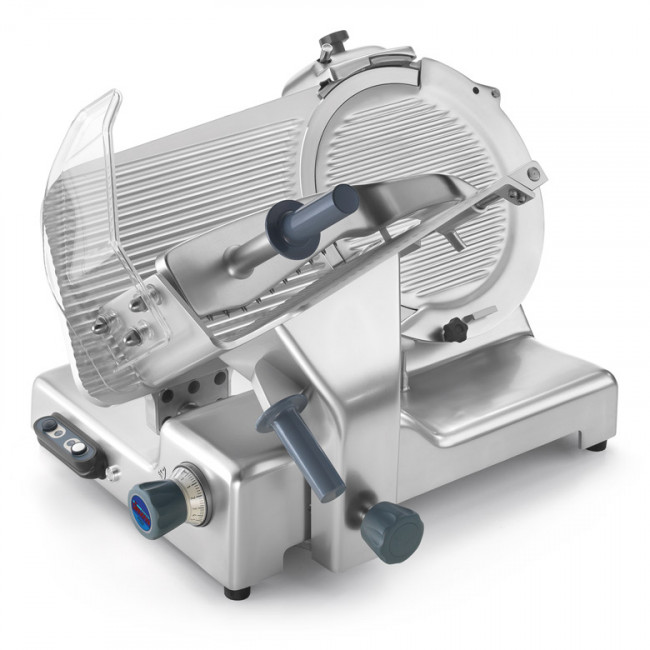

Gravity slicer Model GALILEO EVO 350 INGR.

Gravity slicer Sirman Model GALILEO EVO 350 INGR.

Rounded design, no sharp edges and visibile screws with chrome plated and ground slide rod, self lubricating slide rod bushings, vulcanized rubber stops on carriage and removable support cover for thickness gauge plate.

Technical specifications

• Stainless steel slice deflector

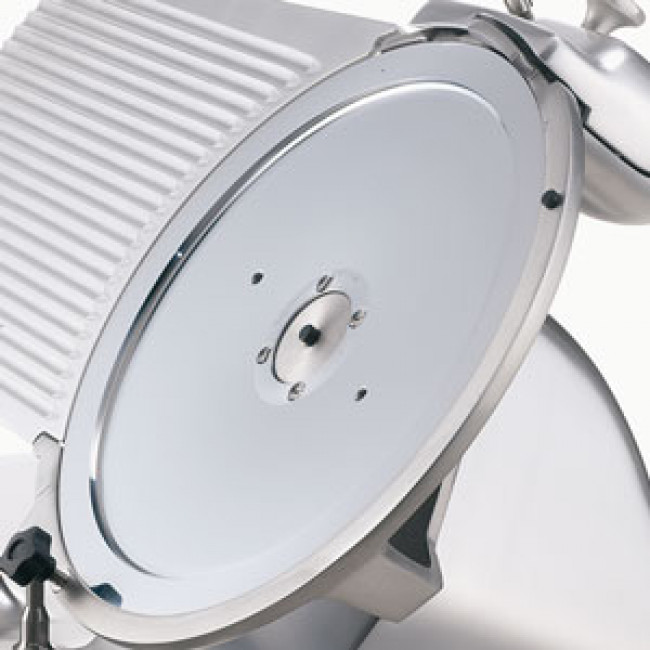

• Blade pulley without centre hole to facilitate cleaning
• Adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices
• Safety ring on table shaft to prevent liquids from seeping inside the machine

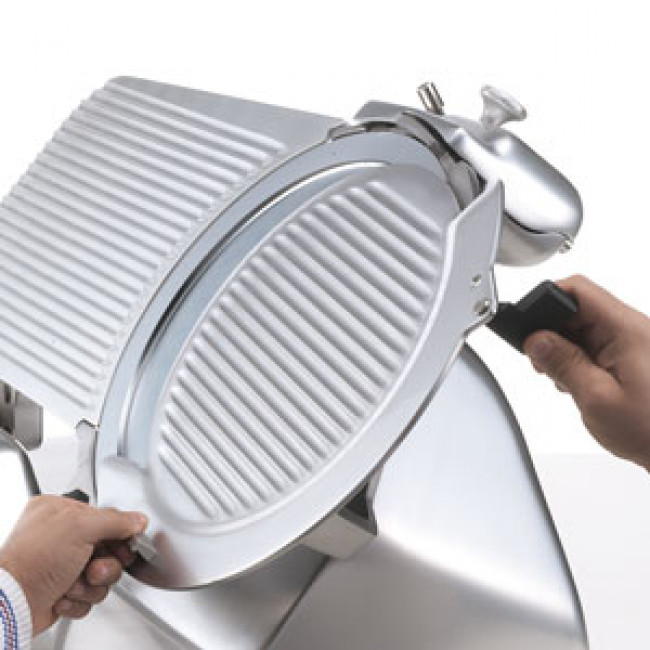

• Easily removable blade cover
• Stainless steel screws and fittings
• Bottom cover
• Changeover electronic circuit 110-220-380 V single and three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 38°.
• Plastic knob
• Rubber feet
• Enclosed and sealed worm gear reduction unit
• Oil bath lubrication
• Automatic model unavailable
• ø Blade mm 350 - inch 14"
• Motor watt 400 - Hp 0,54
• Cutting thickness mm 25
• Run of carriage mm 365
• Plate mm 350x320

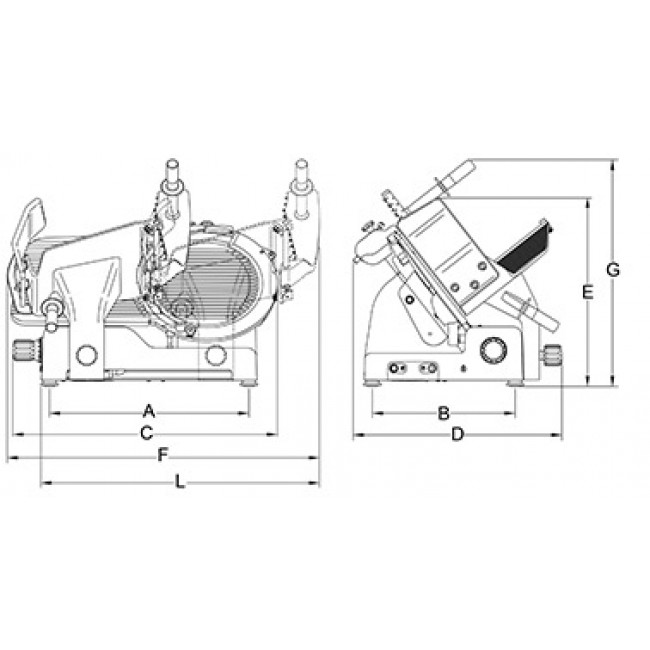

• A mm 515
• B mm 410
• C mm 750
• D mm 590
• E mm 535
• F mm 820
• G mm 700
• L mm 730

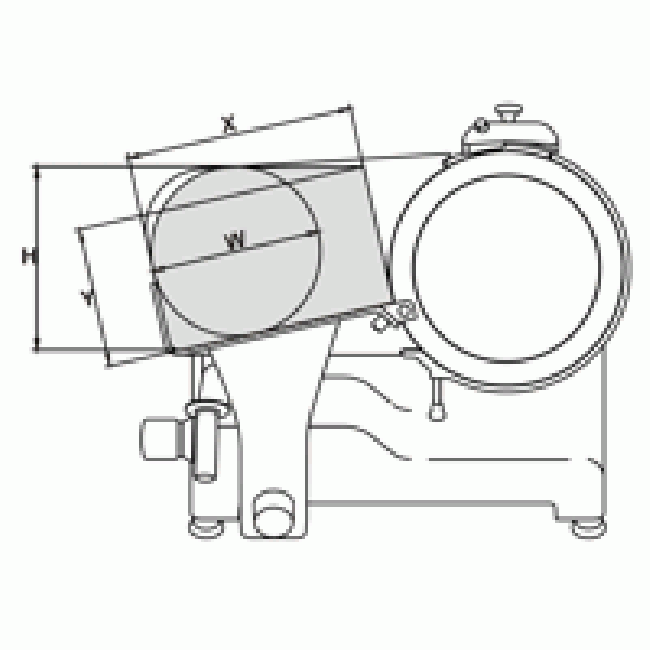

• X mm 320
• Y mm 210
• H mm 275
• W mm 250
• Net weight kg 56
• Packaging dimensions m 870x840x750
• Gross weight kg 72
