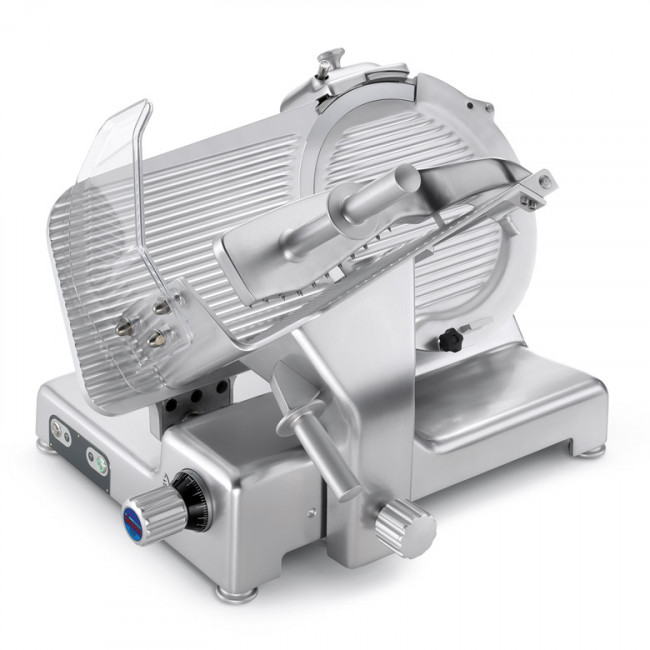

Gravity slicer Model GALILEO 385 EVO TOP

Gravity slicer Sirman Blade Ø 385 Model GALILEO 385 EVO TOP

Adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices and safety ring on table shaft to prevent liquids from seeping inside the machine.

Technical specifications

• Rounded design, no sharp edges and visibile screws
• Chrome plated and ground slide rod
• Self lubricating slide rod bushings
• Vulcanized rubber stops on carriage
• Removable support cover for thickness gauge plate
• Stainless steel slice deflector

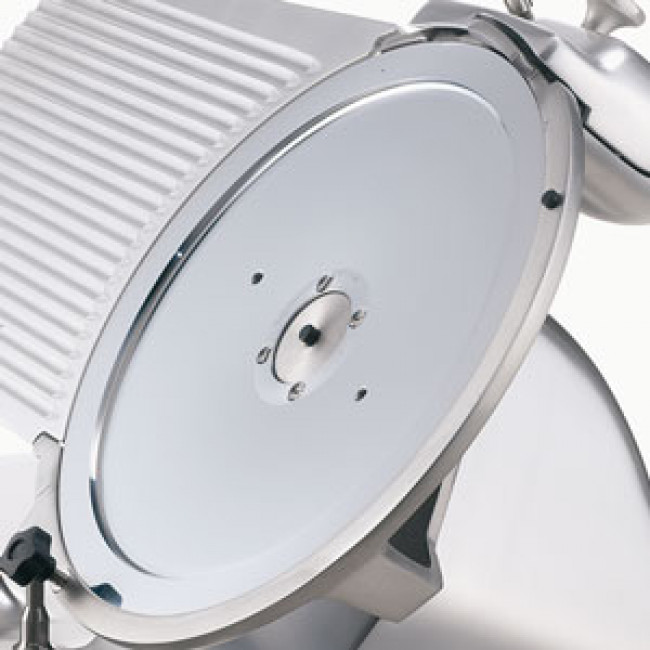

• Blade pulley without centre hole to facilitate cleaning

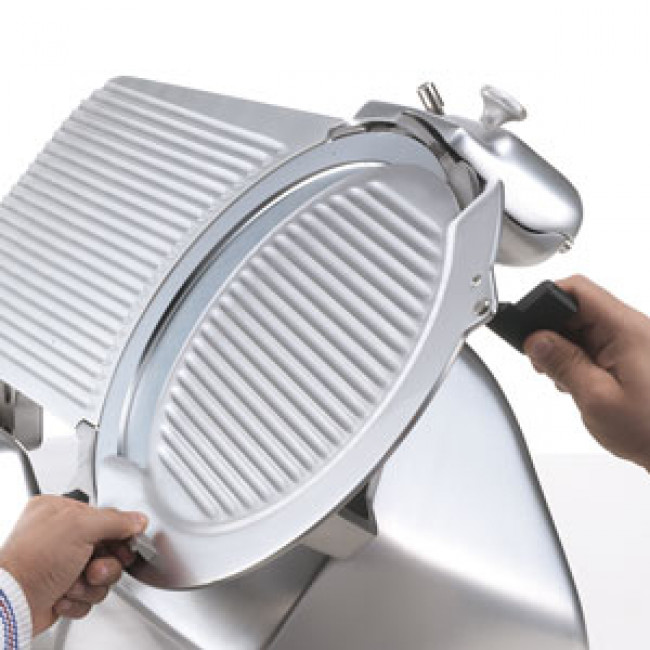

• Easily removable blade cover
• Stainless steel screws and fittings
• Bottom cover
• Changeover electronic circuit 110-220-380 V single and three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 38°.
• Aluminium knob
• Aluminium telescopic feet with rubber base
• Buttons in insulated stainless steel (IP 67) in housing
• Maintenance tool kit
• ø Blade mm 385 - inch 16
• Motor watt 380 - Hp 0,52
• Cutting thickness mm 25
• Run of carriage mm 365
• Plate mm 350x320

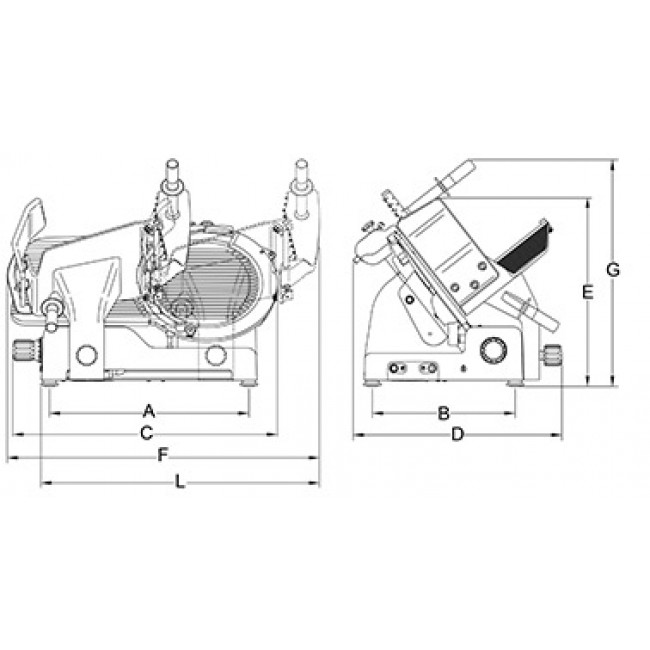

• A mm 515
• B mm 410
• C mm 770
• D mm 605
• E mm 525
• F mm 820
• G mm 700
• L mm 730

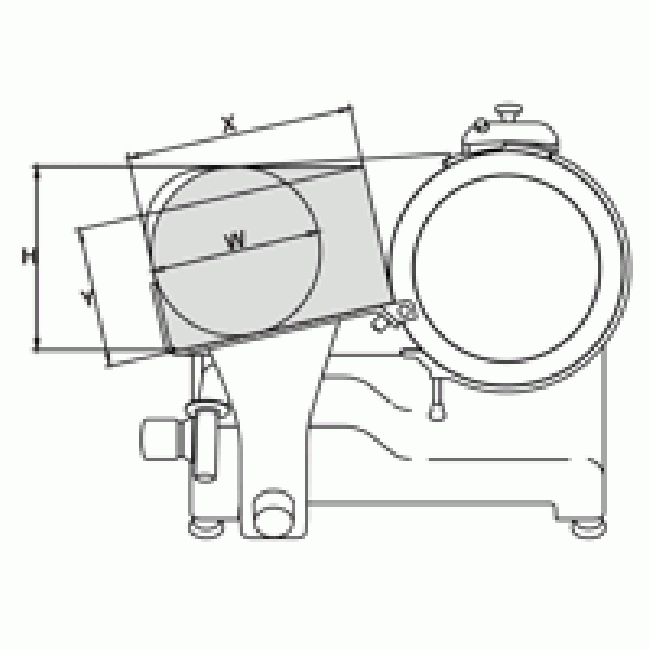

• X mm 320
• Y mm 240
• H mm 305
• W mm 280
• Net weight kg 58
• Packaging dimensions mm 870x840x750
• Gross weight kg 74
