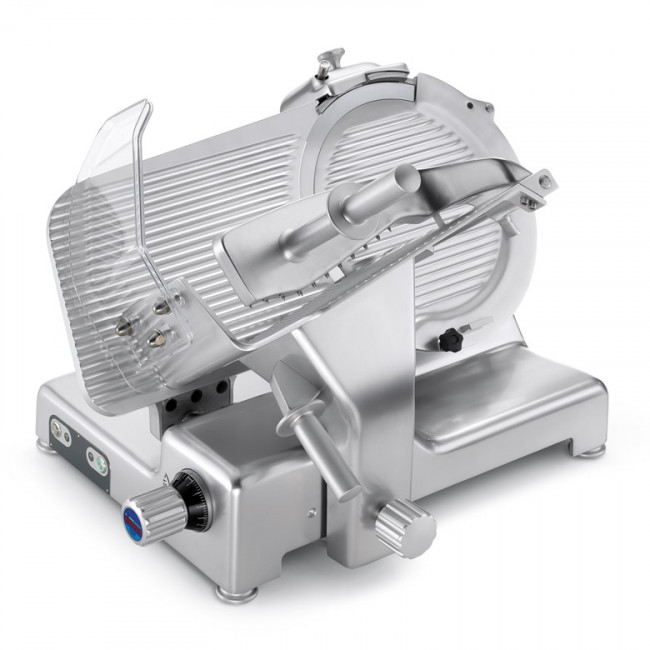

Gravity slicer Model GALILEO 350 EVO TOP

Gravity slicer Sirman

Rounded design, no sharp edges and visibile screws and adjustable slicer table movement in the first 3 mm of opening, guarantees higher cutting precision of thin slices with safety ring on table shaft to prevent liquids from seeping inside the machine

Technical specifications

• Chrome plated and ground slide rod
• Self lubricating slide rod bushings
• Vulcanized rubber stops on carriage
• Removable support cover for thickness gauge plate

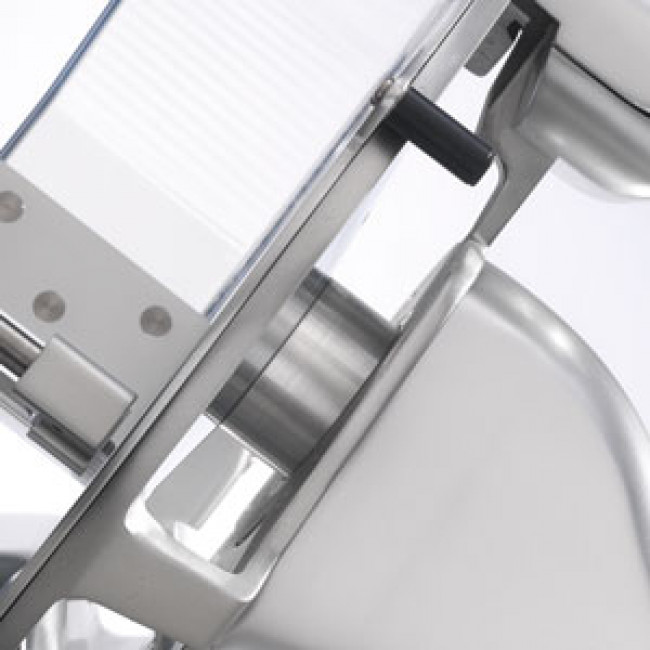

• Stainless steel slice deflector

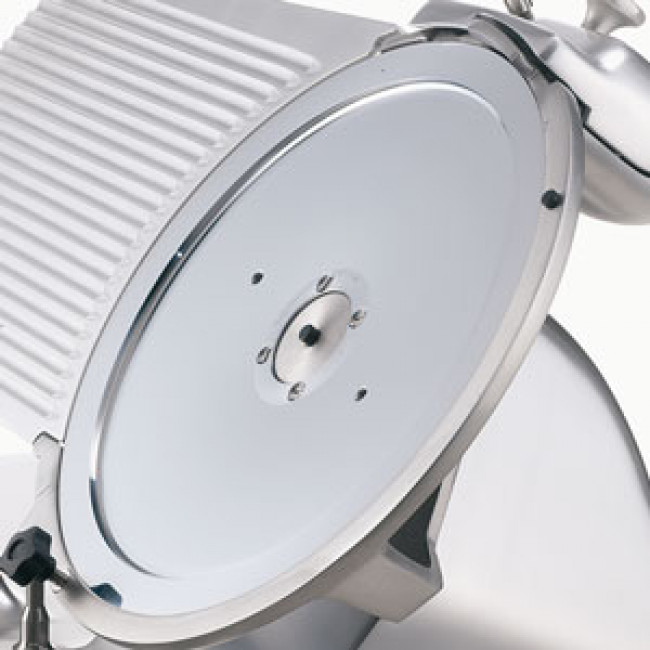

• Blade pulley without centre hole to facilitate cleaning

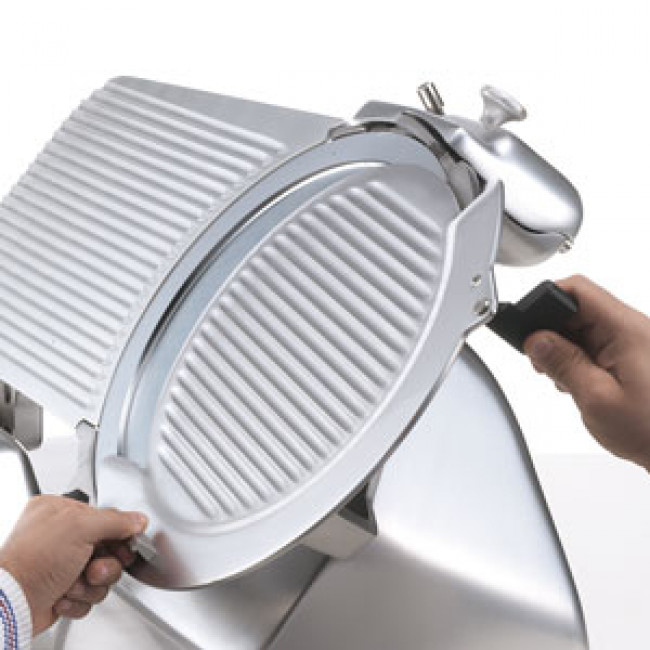

• Easily removable blade cover
• Stainless steel screws and fittings
• Bottom cover
• Changeover electronic circuit 110-220-380 V single and three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 38°.
• Aluminium knob
• Aluminium telescopic feet with rubber base
• Buttons in insulated stainless steel (IP 67) in housing
• Maintenance tool kit
• ø Blade mm 350 - inch 14
• Motore watt 380 - Hp 0,52
• Cutting thickness mm 25
• Run of carriage mm 365
• Plate mm 350x320

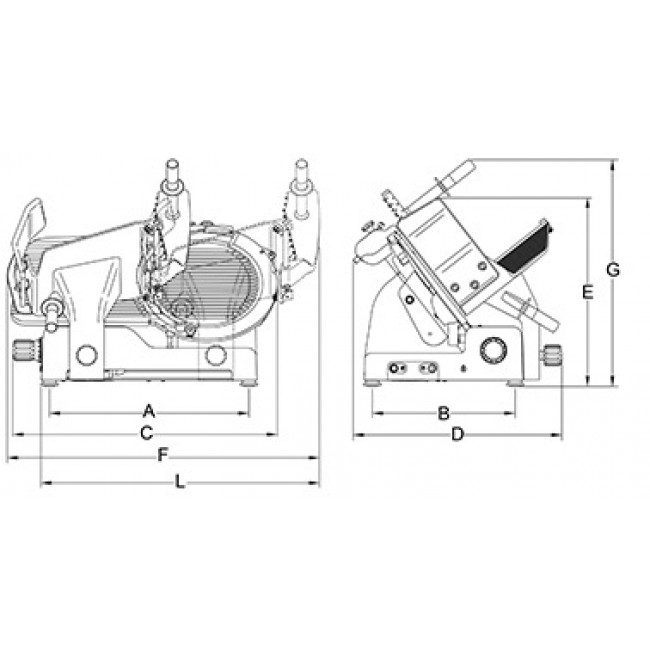

• A mm 515
• B mm 410
• C mm 750
• D mm 590
• E mm 535
• F mm 820
• G mm 700
• L mm 730

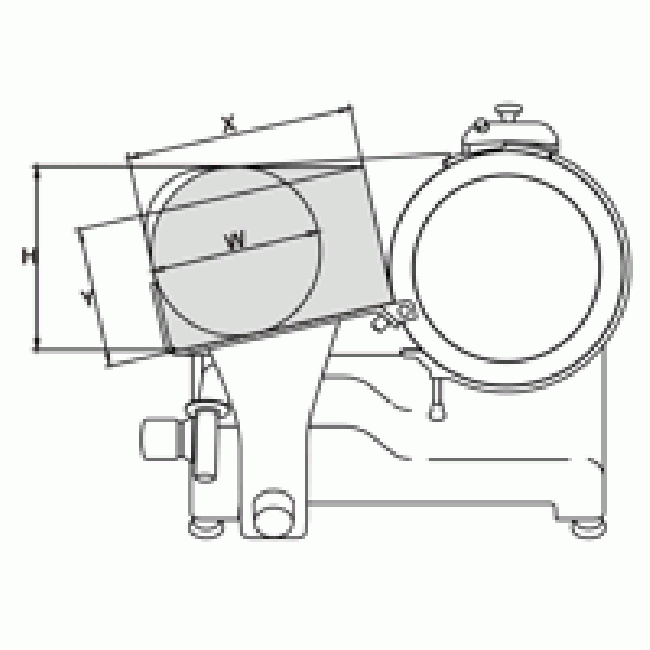

• X mm 320
• Y mm 210
• H mm 275
• W mm 250
• Net weight kg 56
• Packaging dimensions mm 870x840x750
