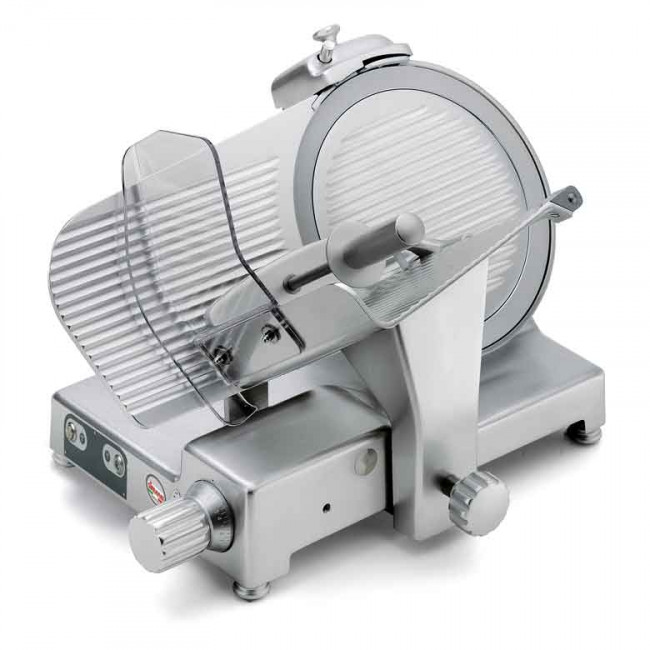

Gravity slicer Model CANOVA 300 TOP

Slicer CANOVA 300 TOP

Rounded design and no sharp edges and visibile screws with chrome plated and ground slide rod and self lubricating slide rod bushings. Vulcanized rubber stops on carriage and removable support cover for thickness gauge plate.

Technical specifications

• Stainless steel slice deflector with bayonet fitting
• Stainless steel screws and fittings
• Enclosed and sealed belt pulley
• 41 mm distance between blade and motor
• Bottom cover
• Changeover electronic circuit 110-220-380 V single and three phase
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 38°.
• Aluminium knob
• Aluminium telescopic feet with rubber base
• Stainless steel pushbuttons with IP67 protection rating
• ø blade mm 300 - inch. 12
• Motor watt 210 - Hp 0,29
• Cutting thickness mm 19
• Run of carriage mm 275
• Plate mm 240x230

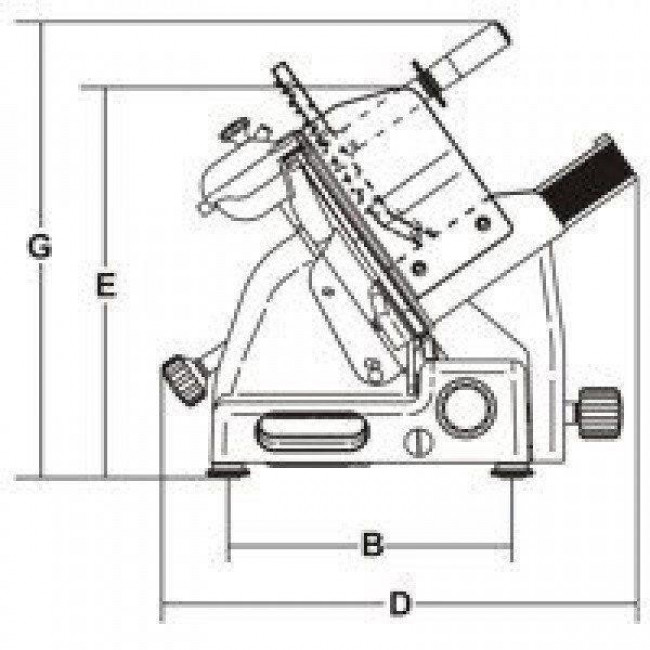

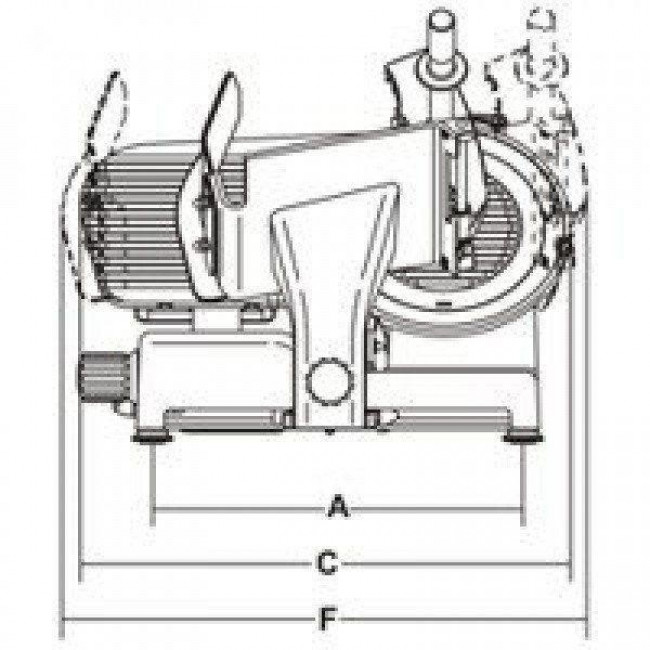

• A mm 428
• B mm 290
• C mm 590
• D mm 495
• E mm 355
• F mm 640
• G mm 495

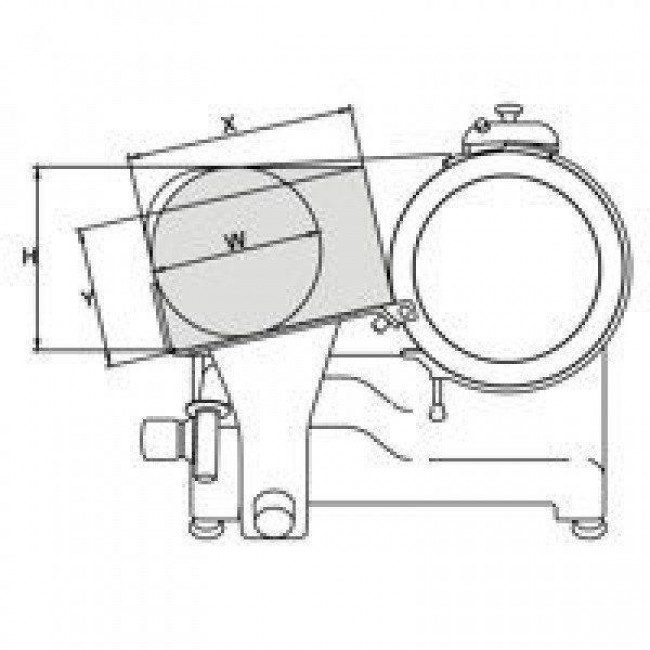

• X mm 230
• Y mm 175
• H mm 220
• W mm 200
• Net weight kg 26,5
• Packaging dimensions mm 800x600x520
• Gross weight kg 29
