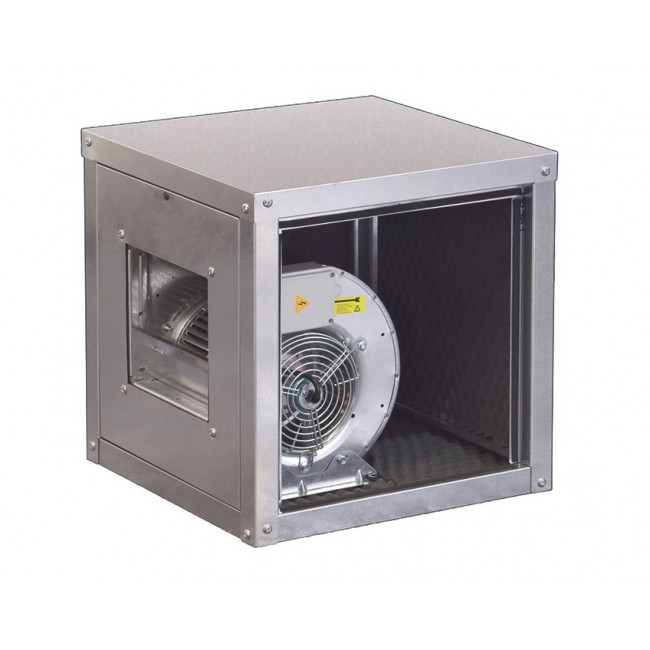

Encased centrifugal fans in steel sheet panel Model ECZ 10/10-6 Capacity 3000 m³/h
Availability: In stock
Encased centrifugal fans in steel sheet panel
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 3000 m³/h
- HST H2O 14
- Rumorosità 51 dB
- RPM 900
- Potenza 0,24 kW
- Potenza assorbita 0,8 kW
- 230 Volt
- 3,5 Amp

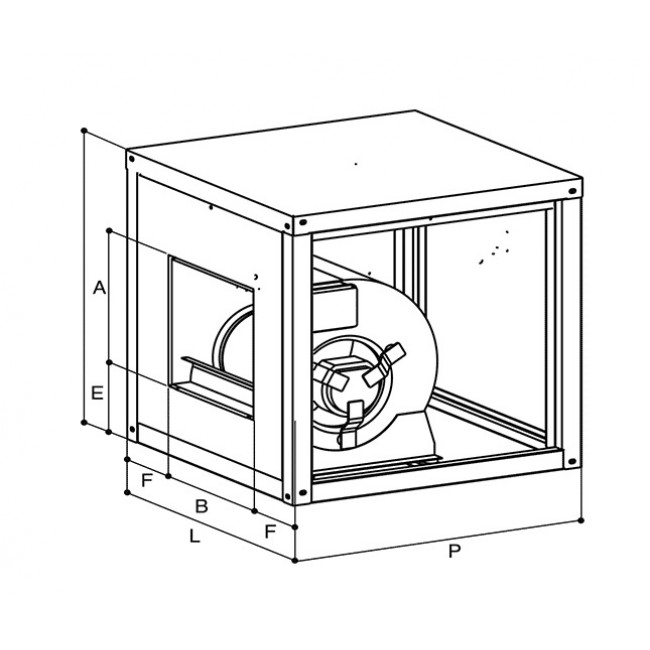

- A: 300 mm
- B: 344 mm
- E: 198 mm
- F: 128 mm
- Peso 36 Kg
Encased centrifugal fans in steel sheet panel
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 3000 m³/h
- HST H2O 14
- Rumorosità 51 dB
- RPM 900
- Potenza 0,24 kW
- Potenza assorbita 0,8 kW
- 230 Volt
- 3,5 Amp
- A: 300 mm
- B: 344 mm
- E: 198 mm
- F: 128 mm
- Peso 36 Kg
Manufacturer | Ristosubito |
---|---|
type | Steel sheet panels |
Length | 60 |
Depth | 60 |
Height (cm) | 60 |
