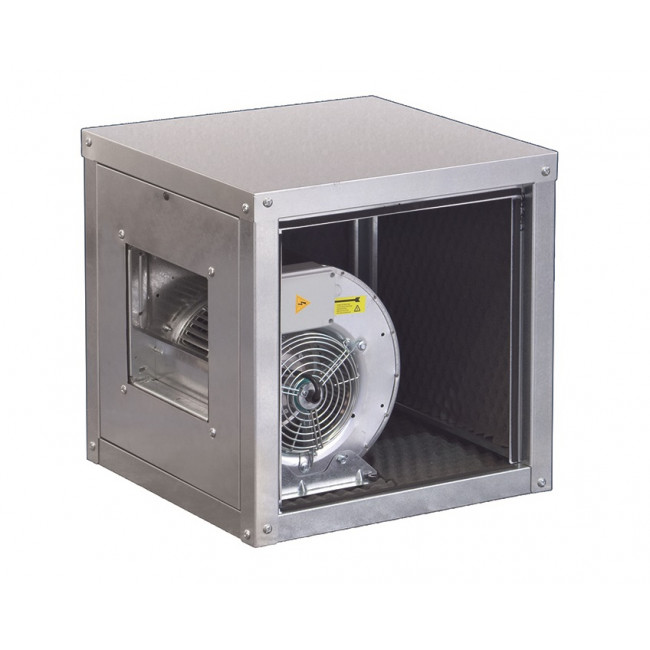

Encased centrifugal fan in steel sheet panels Model ECZ 9/9-6 Capacity 2200 m³/h
Availability: In stock
Encased centrifugal fan in steel sheet panels
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 2200 m³/h
- HST H2O 16
- Rumorosità 51 dB
- RPM 900
- Potenza 0,24 kW
- Potenza assorbita 0,52 kW
- 230 Volt
- 2,7 Amp

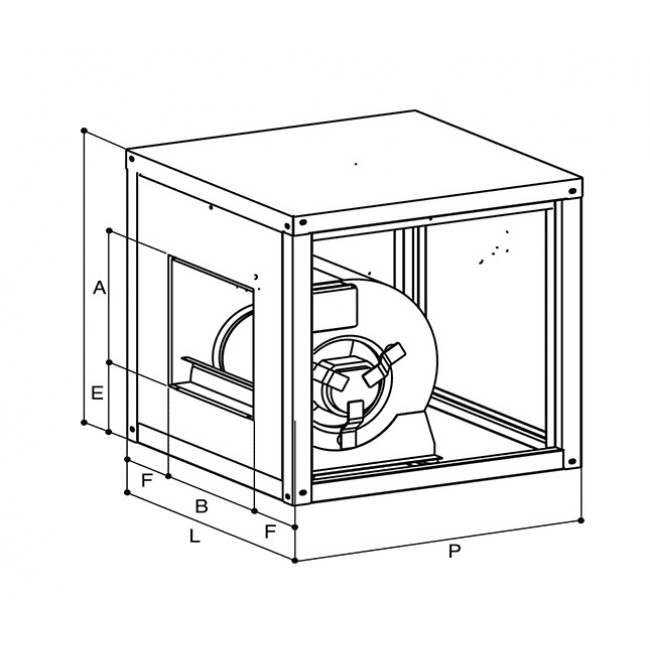

- A: 255 mm
- B: 298 mm
- E: 151 mm
- F: 151 mm
- Peso 33 Kg
Encased centrifugal fan in steel sheet panels
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 2200 m³/h
- HST H2O 16
- Rumorosità 51 dB
- RPM 900
- Potenza 0,24 kW
- Potenza assorbita 0,52 kW
- 230 Volt
- 2,7 Amp
- A: 255 mm
- B: 298 mm
- E: 151 mm
- F: 151 mm
- Peso 33 Kg
Manufacturer | Ristosubito |
---|---|
type | Steel sheet panels |
Length | 60 |
Depth | 60 |
Height (cm) | 60 |
