Encased centrifugal fan in steel sheet panels Model ECZ 9/7-4 Capacity 2500 m³/h
Availability: In stock

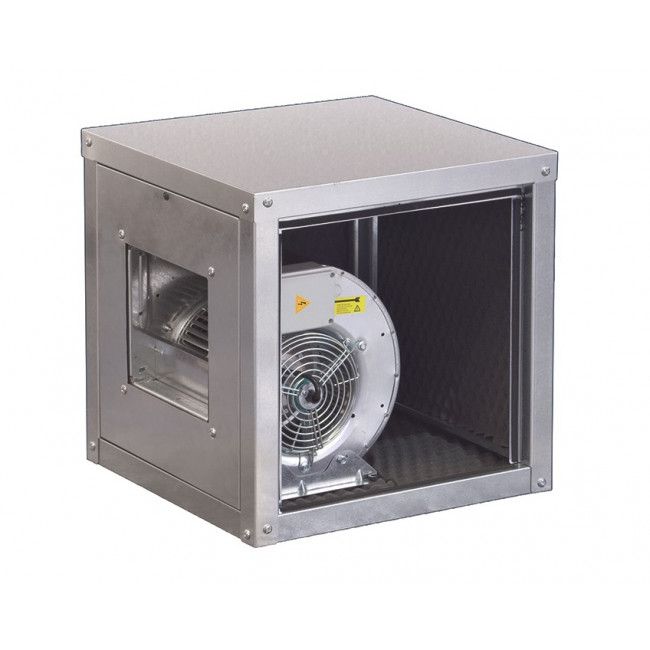

Encased centrifugal fan in steel sheet panels
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 2500 m³/h
- HST H2O 30
- Rumorosità 55 dB
- RPM 1400
- Potenza 0,36 kW
- Potenza assorbita 1,2 kW
- 230 Volt
- 5,3 Amp

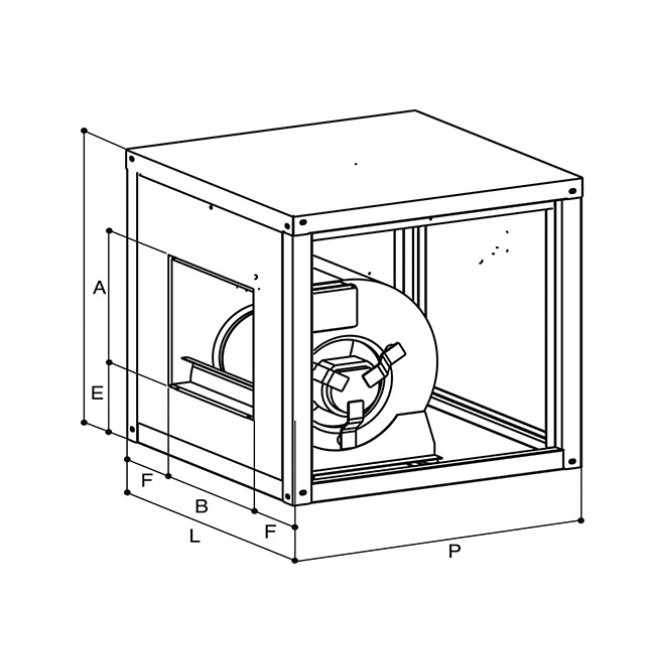

- A: 267 mm
- B: 238 mm
- E: 142 mm
- F: 130 mm
- Peso 28 Kg
Encased centrifugal fan in steel sheet panels
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 2500 m³/h
- HST H2O 30
- Rumorosità 55 dB
- RPM 1400
- Potenza 0,36 kW
- Potenza assorbita 1,2 kW
- 230 Volt
- 5,3 Amp
- A: 267 mm
- B: 238 mm
- E: 142 mm
- F: 130 mm
- Peso 28 Kg
Manufacturer | Ristosubito |
---|---|
type | Steel sheet panels |
Length | 50 |
Depth | 50 |
Height (cm) | 50 |
