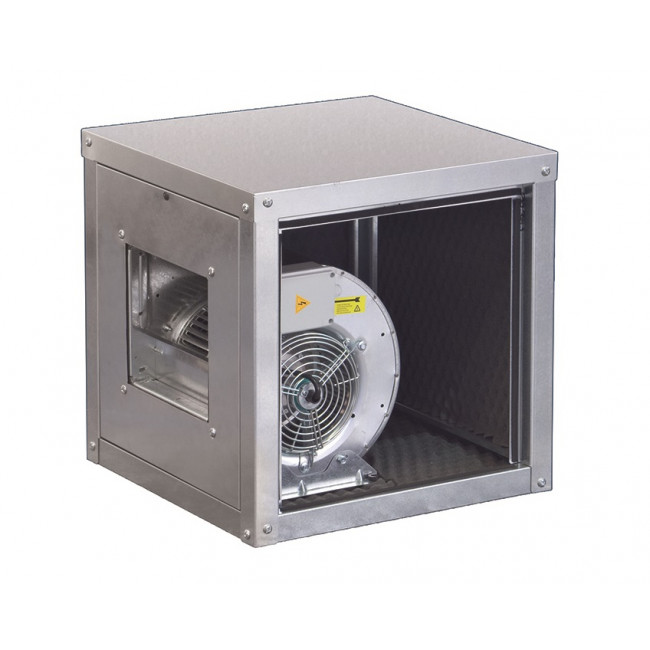

Encased centrifugal fan in steel sheet panel Model ECZ 15/15-6-T Capacity 10000 m³/h
Availability: In stock
Encased centrifugal fan in steel sheet panel
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 10000 m³/h
- HST H2O 25
- Rumorosità 58 dB
- RPM 900
- Potenza 2,2 kW
- Potenza assorbita 3,3 kW
- 400 Volt
- 12 Amp

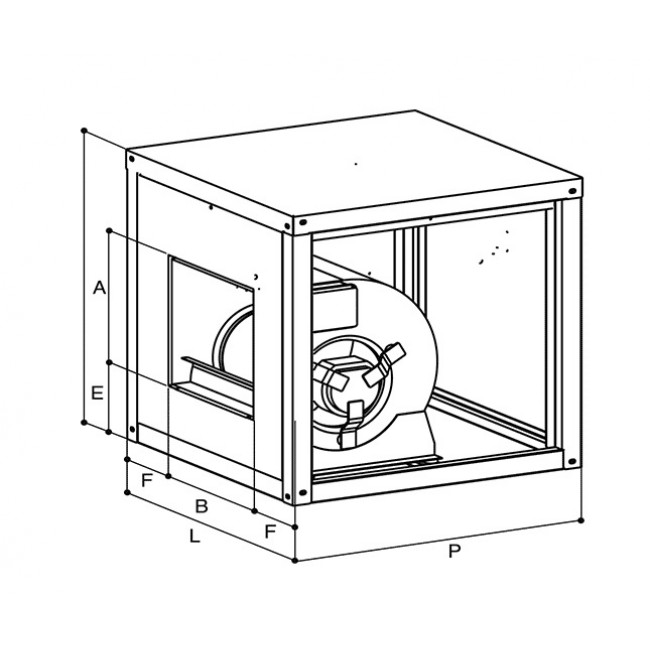

- A: 414 mm
- B: 484 mm
- E: 259 mm
- F: 208 mm
- Peso 102 Kg
Encased centrifugal fan in steel sheet panel
Ventilatore centrifugo cassonato a doppia aspirazione con motore direttamente accoppiato alla girante (pale avanti). Pannellatura in lamiera zincata con rivestimento interno fonoassorbente, autoestinguente.
Specifiche tecniche
- Portata 10000 m³/h
- HST H2O 25
- Rumorosità 58 dB
- RPM 900
- Potenza 2,2 kW
- Potenza assorbita 3,3 kW
- 400 Volt
- 12 Amp
- A: 414 mm
- B: 484 mm
- E: 259 mm
- F: 208 mm
- Peso 102 Kg
Manufacturer | Ristosubito |
---|---|
type | Steel sheet panels |
Length | 90 |
Depth | 90 |
Height (cm) | 90 |
