Blast chiller TD Model AT10ISO

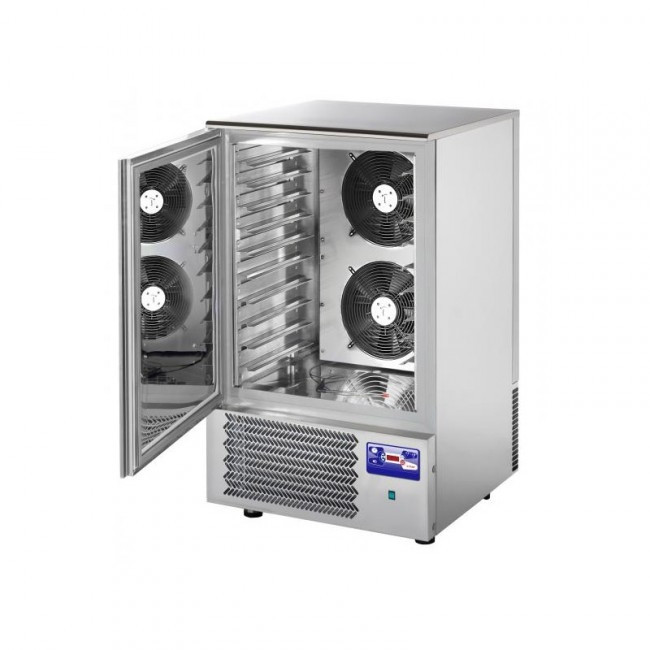

BLAST CHILLER ISO LINE MODEL AT10ISO

ATTILA is the answer to the need to have in the kitchen machines to break down temperatures, completely made of steel. Stainless steel, powerful, compact, extremely flexible and in line with the most stringent safety and hygiene standards. The power is always guaranteed by perfectly sized units, able to bring in the room a temperature of even -40 ºC in a few minutes.

The brand new line has been improved in terms of design and maintenance thanks to the new access system to the electrical and mechanical parts and the new modular construction system optimized for lean production. They can contain GN 1/1 and 600x400 trays and grids thanks to the universal stainless steel guides. The digital control panels also in Touch Sensor version (positioned on the door), allow you to set various parameters to meet any need.

Technical specifications

• Inside and outside in Stainless Steel, excluding the external Galvanized Steel bottom with rounded internal corners.
• Polyurethane insulation without CFC, injected at high pressure.
• Insulation 60MM
• Removable top, door with automatic closure and magnetic seal.
• Front panel with electronic control board with PTC camera probe and pin probe at the heart.
• Ventilated refrigeration with air agitator.
• Easily removable and tropicalized refrigerant unit as standard (ambient temperature +43 ºC and relative humidity of 65%) operating with R404A/R507 gas.
• Rear opening and removable unit, for easy maintenance.
• Defrosting evaporator in time, at the end of the cycle, and lower container of condensate water.
• Cycles that can be set with a probe at the heart +3,C and -18,C, or in time.
• Stainless steel feet adjustable in height.
• Suitable for holding both GN 1/1 grids and 60X40 cm trays.
• Positive abatement yield: +3° (Kg. 25)
• Negative abatement yield: -18° ( kg 15)
• Power consumption 1490 W
• Voltage 230V/50Hz/1
• Cooling gas R290
• Built-in unit (included)
• Net weight Kg. 112
• Gross weight Kg. 120
• Internal dimensions cm 61x41x76
• Space between trays mm 70
• CE standard

Standard equipment:

• PTC camera probe
• Pin probe to the heart
• N. 20 universal steel guides
