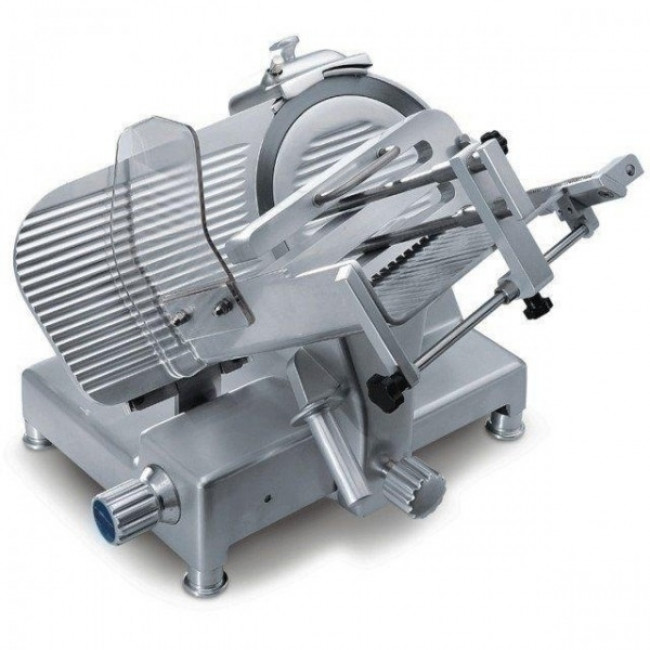

Automatic gravity slicer Model PALLADIO 350 AUT. TOP
Availability: In stock
Automatic gravity slicer Sirman Model PALLADIO 350 AUT. TOP
Rounded design, no sharp edges and visibile screws with chrome plated and ground slide rod and lapped cast iron slide rod bushing. Vulcanized rubber stops on carriage with removable support cover for thickness gauge plate and stainless steel slice deflector with bayonet fitting. Stainless steel screws and fittings with enclosed and sealed belt pulley.
Technical data
- 49,5 mm distance between blade and motor
- Bottom cover
- Power source 220V
- Built in sharpening tool with bottom protection
- Standard blade removal tool
- Blade inclination 35°.

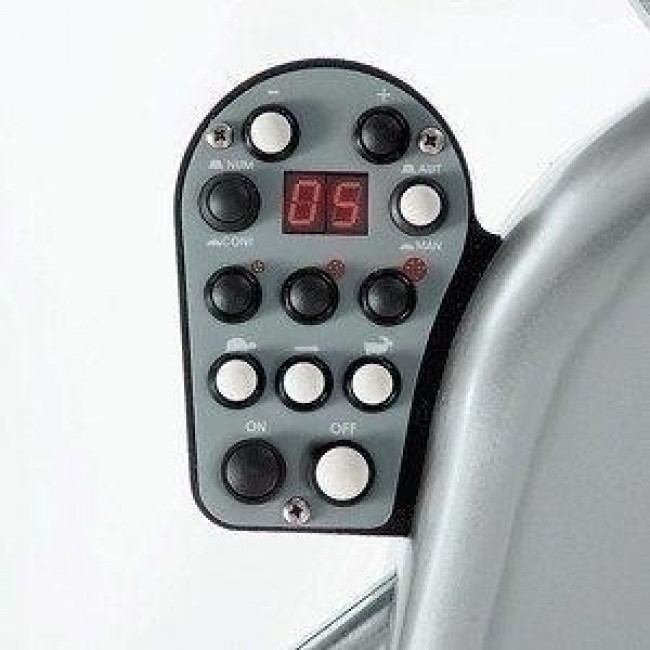

- Ergomic controls – push buttons with IP67 protection rating
- 3 speed selection
- 3 different adjustments for carriage travel
- Slice counter
- Slice number setting with automatic stop feature
- Enclosed and sealed drive motor
- Positive drive belt
- Carriage release system for manual slicing
- ø Blade mm 350 - inch. 14
- Motor watt 370+200 - Hp 0,50+0,27
- Cutting thickness mm 23
- Run of carriage mm 310
- Plate mm 365x270

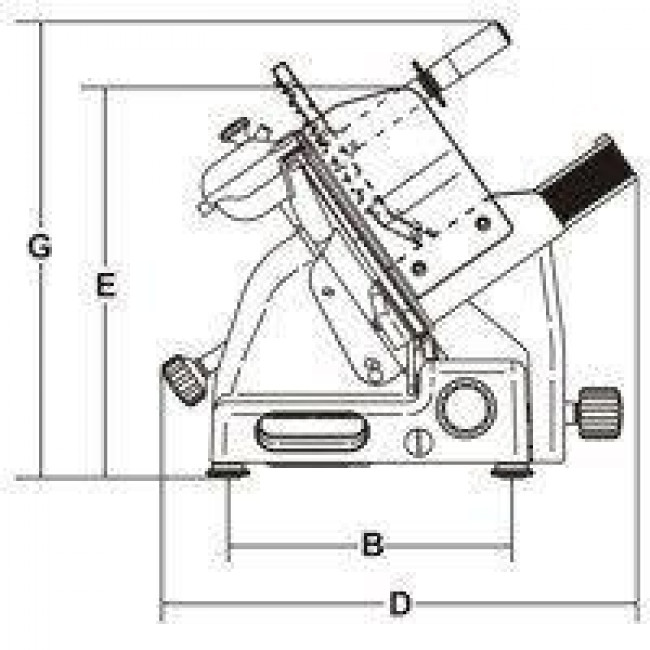

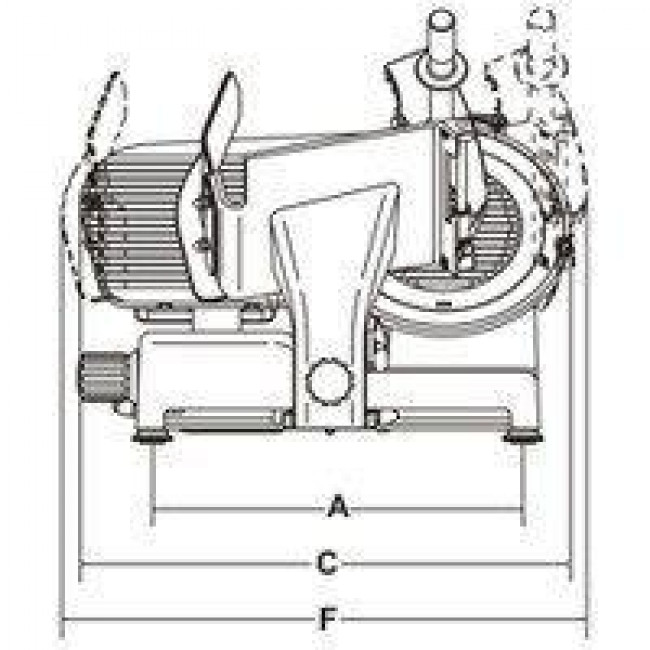

- A mm 465
- B mm 340
- C mm 660
- D mm 660
- E mm 455
- F mm 730
- G mm 650

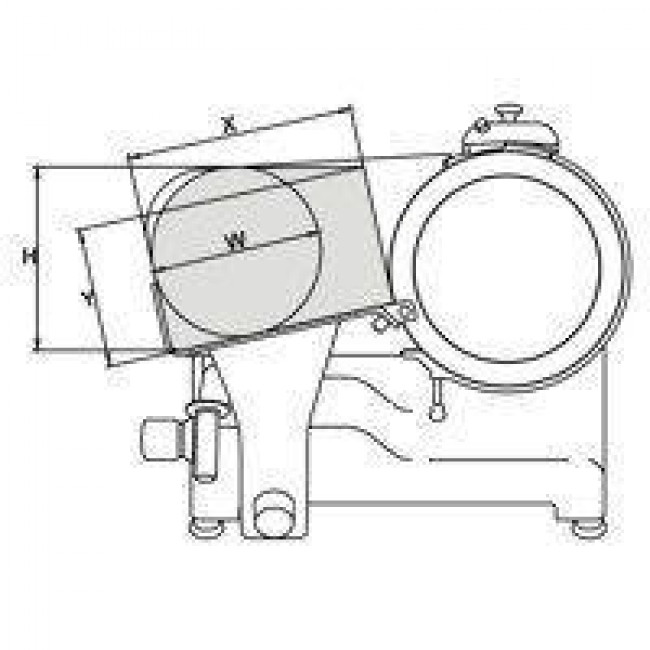

- X mm 270
- Y mm 230
- H mm 275
- W mm 255
- Net weight kg 43
- Packaging dimensions mm 780x640x700
- Gross weight kg 48
Automatic gravity slicer Sirman Model PALLADIO 350 AUT. TOP
Rounded design, no sharp edges and visibile screws with chrome plated and ground slide rod and lapped cast iron slide rod bushing. Vulcanized rubber stops on carriage with removable support cover for thickness gauge plate and stainless steel slice deflector with bayonet fitting. Stainless steel screws and fittings with enclosed and sealed belt pulley.
Technical data
- 49,5 mm distance between blade and motor
- Bottom cover
- Power source 220V
- Built in sharpening tool with bottom protection
- Standard blade removal tool
- Blade inclination 35°.
- Ergomic controls – push buttons with IP67 protection rating
- 3 speed selection
- 3 different adjustments for carriage travel
- Slice counter
- Slice number setting with automatic stop feature
- Enclosed and sealed drive motor
- Positive drive belt
- Carriage release system for manual slicing
- ø Blade mm 350 - inch. 14
- Motor watt 370+200 - Hp 0,50+0,27
- Cutting thickness mm 23
- Run of carriage mm 310
- Plate mm 365x270
- A mm 465
- B mm 340
- C mm 660
- D mm 660
- E mm 455
- F mm 730
- G mm 650
- X mm 270
- Y mm 230
- H mm 275
- W mm 255
- Net weight kg 43
- Packaging dimensions mm 780x640x700
- Gross weight kg 48
Manufacturer | Sirman |
---|---|
type | Automatic |
Blade diameter | mm 350 |
Length | 73 |
Depth | 66 |
Height (cm) | 65 |
Blade diameter | 35 |
