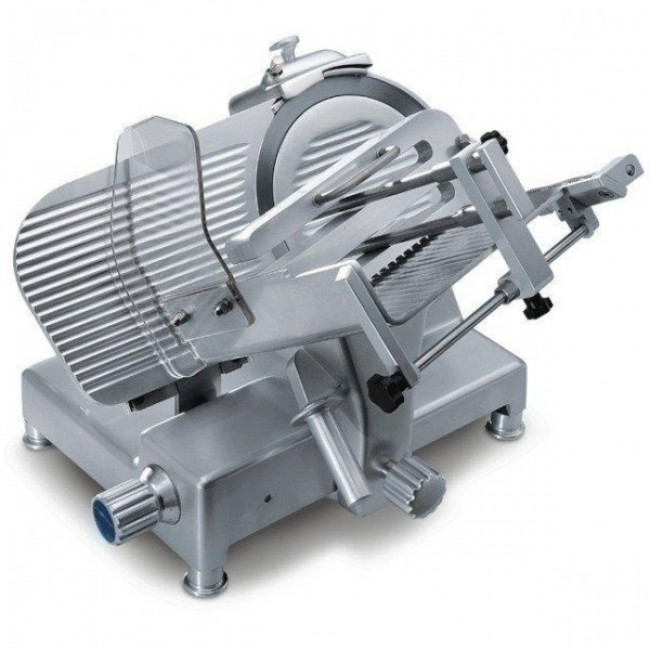

Automatic gravity slicer Model PALLADIO 330 AUT. TOP

Automatic gravity slicer Sirman Model PALLADIO 330 AUT. TOP

Slice counter, slice number setting with automatic stop feature, enclosed and sealed drive motor and positive drive belt.

Technical specifications

• Rounded design, no sharp edges and visibile screws
• Chrome plated and ground slide rod
• Lapped cast iron slide rod bushing
• Vulcanized rubber stops on carriage
• Removable support cover for thickness gauge plate
• Stainless steel slice deflector with bayonet fitting
• Stainless steel screws and fittings
• Enclosed and sealed belt pulley
• 49,5 mm distance between blade and motor
• Bottom cover
• Power source 220V
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 35°.

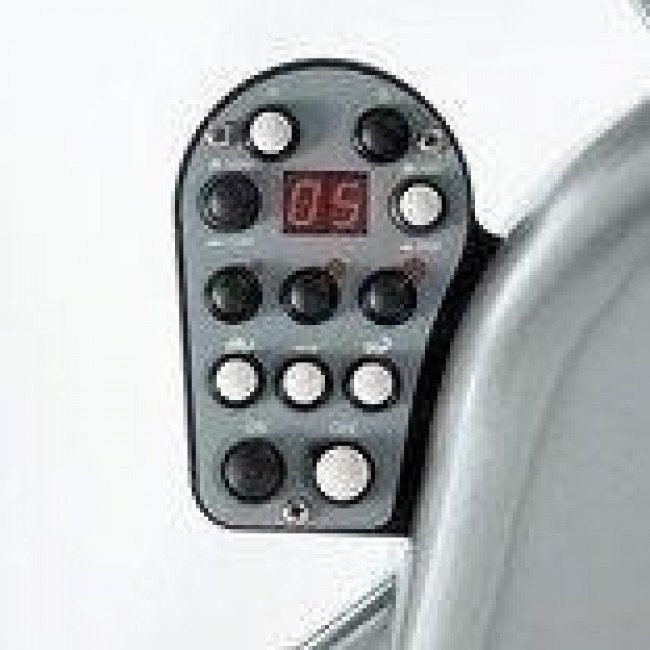

• Ergomic controls – push buttons with IP67 protection rating
• 3 speed selection
• 3 different adjustments for carriage travel
• Carriage release system for manual slicing
• ø Blade mm 330 - inch. 13
• Motor watt 275+200 - Hp 0,37+0,27
• Cutting thickness mm 23
• Run of carriage mm 310
• Plate mm 365x270

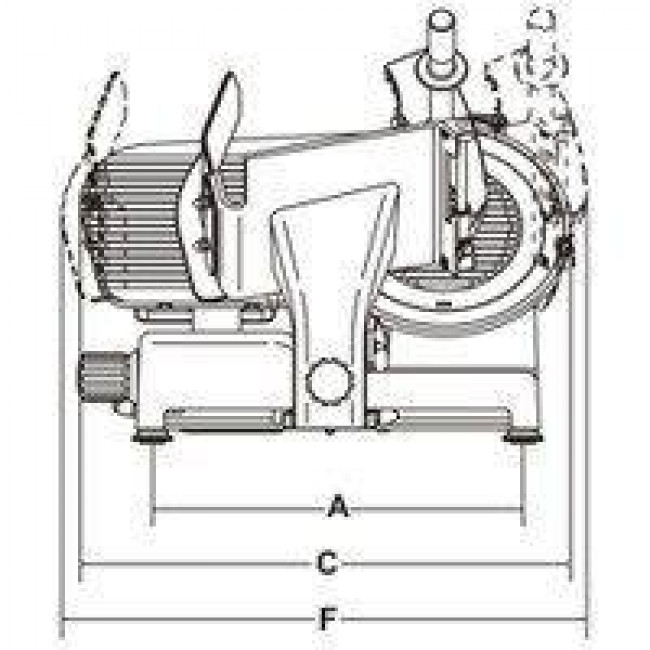

• A mm 465

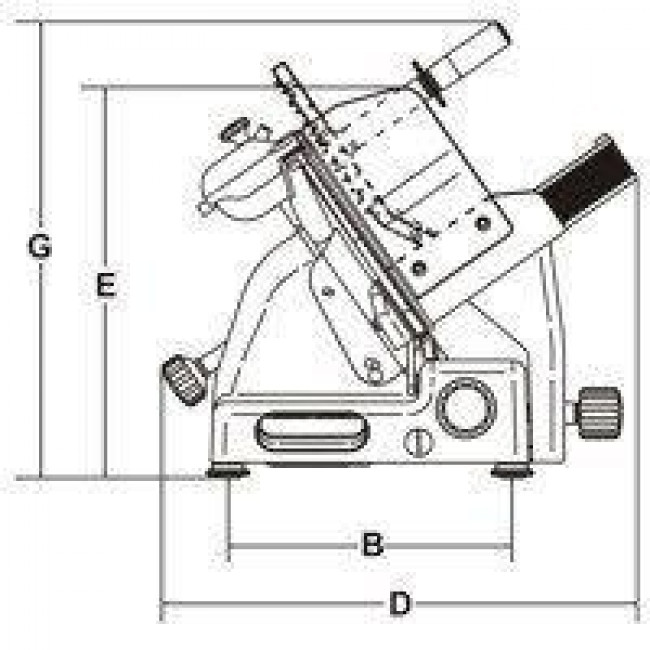

• B mm 340
• C mm 345
• D mm 660
• E mm 455
• F mm 730
• G mm 650

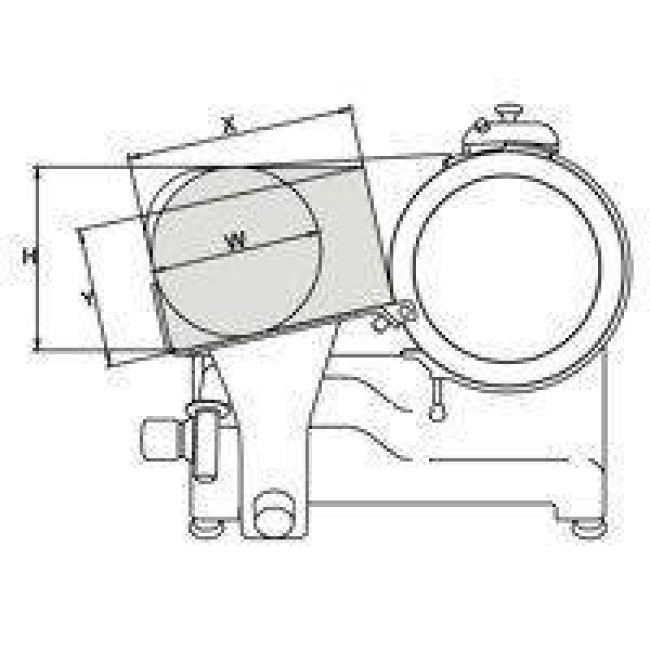

• X mm 270
• Y mm 210
• H mm 260
• W mm 240
• Net weight kg 42
• Packaging dimensions mm 780x640x700
• Gross weight kg 47
