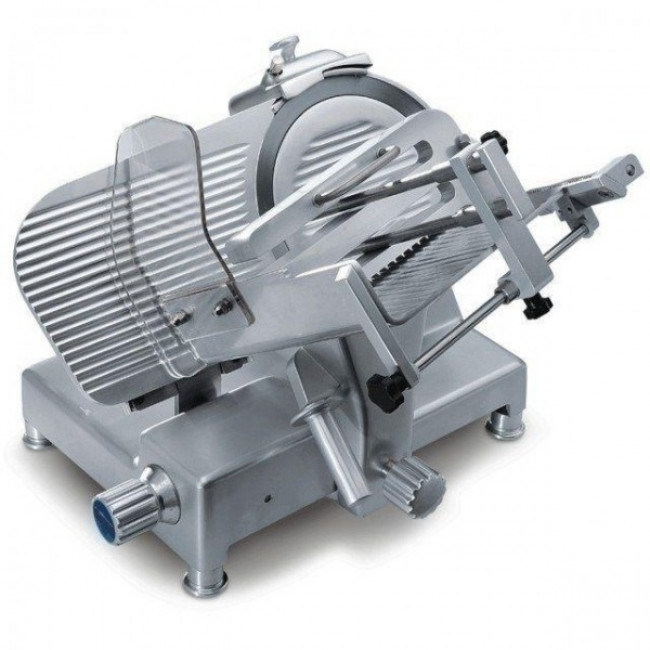

Automatic gravity slicer Model PALLADIO 300 AUT. TOP

Automatic gravity slicer Sirman

Slice number setting with automatic stop feature, enclosed and sealed drive motor, positive drive belt and carriage release system for manual slicing.

Technical specifications

• Rounded design, no sharp edges and visibile screws
• Chrome plated and ground slide rod
• Lapped cast iron slide rod bushing
• Vulcanized rubber stops on carriage
• Removable support cover for thickness gauge plate
• Stainless steel slice deflector with bayonet fitting
• Stainless steel screws and fittings
• Enclosed and sealed belt pulley
• 49,5 mm distance between blade and motor
• Bottom cover
• Power source 220V.
• Built in sharpening tool with bottom protection
• Standard blade removal tool
• Blade inclination 35°.
• Ergomic controls – push buttons with IP67 protection rating
• 3 speed selection
• 3 different adjustments for carriage travel
• Slice counter
• ø Blade mm 300 - inch. 12
• Motor watt 275+200 - Hp 0,37+0,27
• Cutting thickness mm 23
• Run of carriage mm 310
• Plate mm 365x270

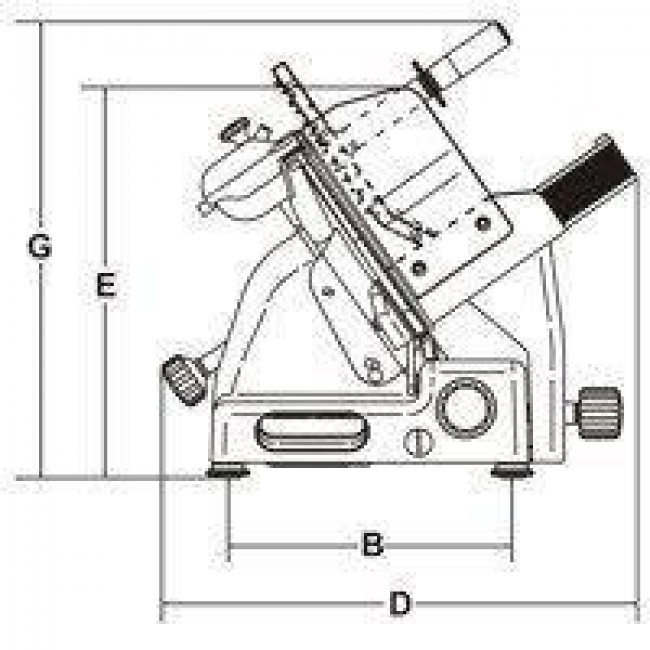

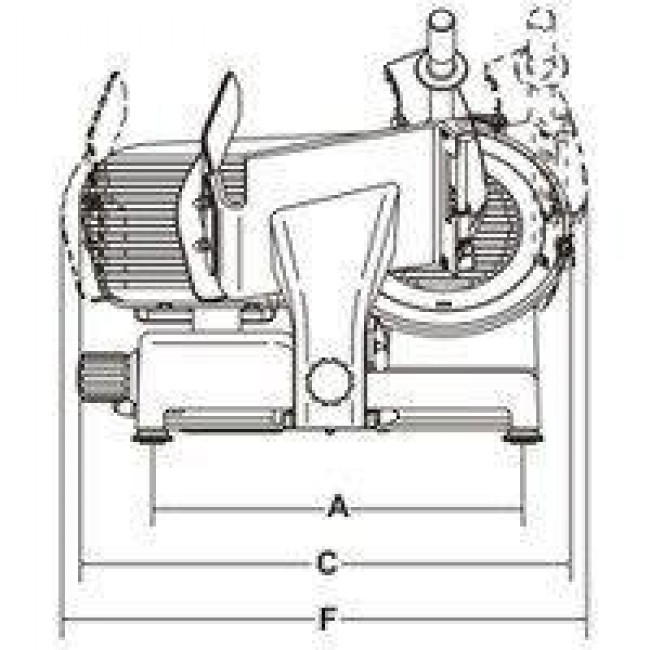

• A mm 465
• B mm 340
• C mm 615
• D mm 660
• E mm 465
• F mm 730
• G mm 650

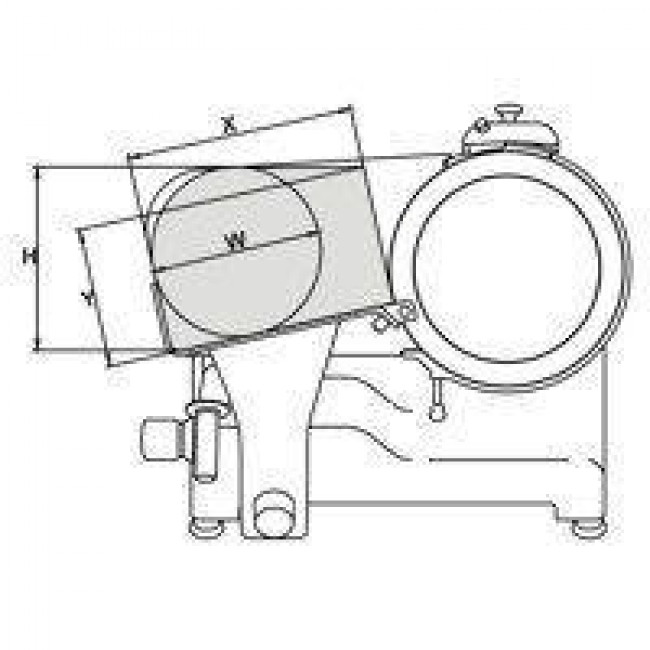

• X mm 240/270
• Y mm 190
• H mm 240
• W mm 220
• Net weight kg 38
• Packaging dimensions mm 870x840x750
• Gross weight kg 53
